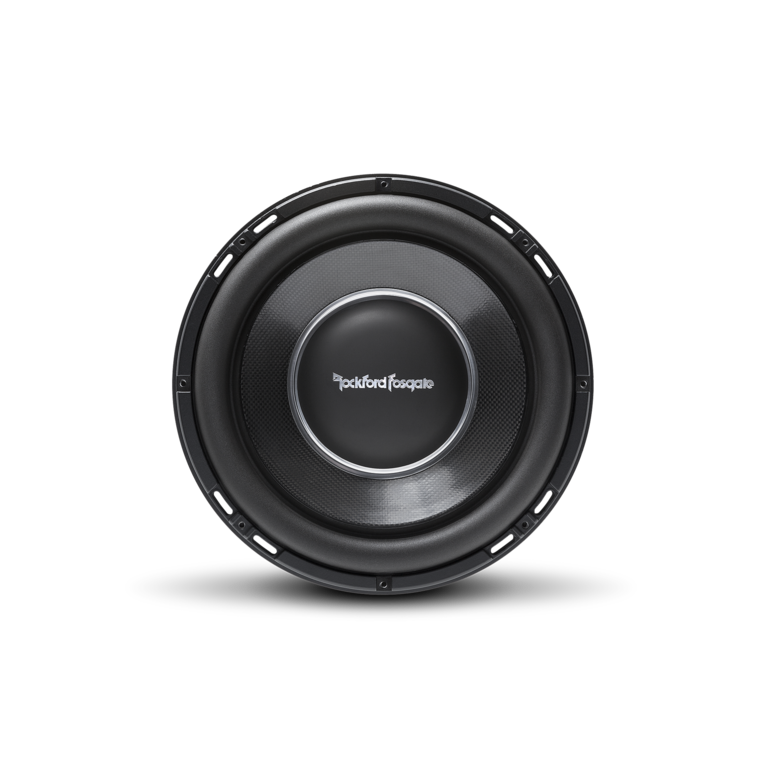

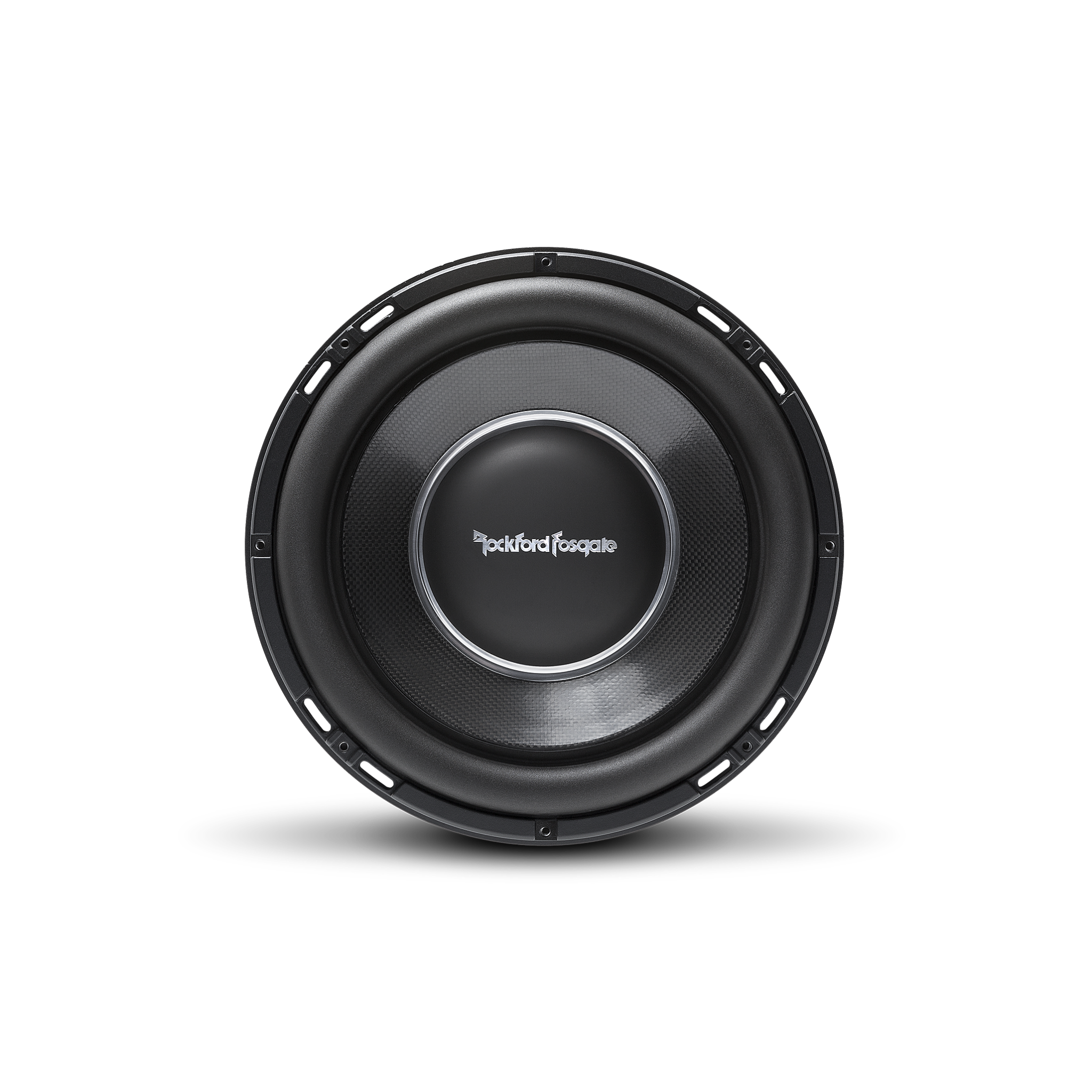

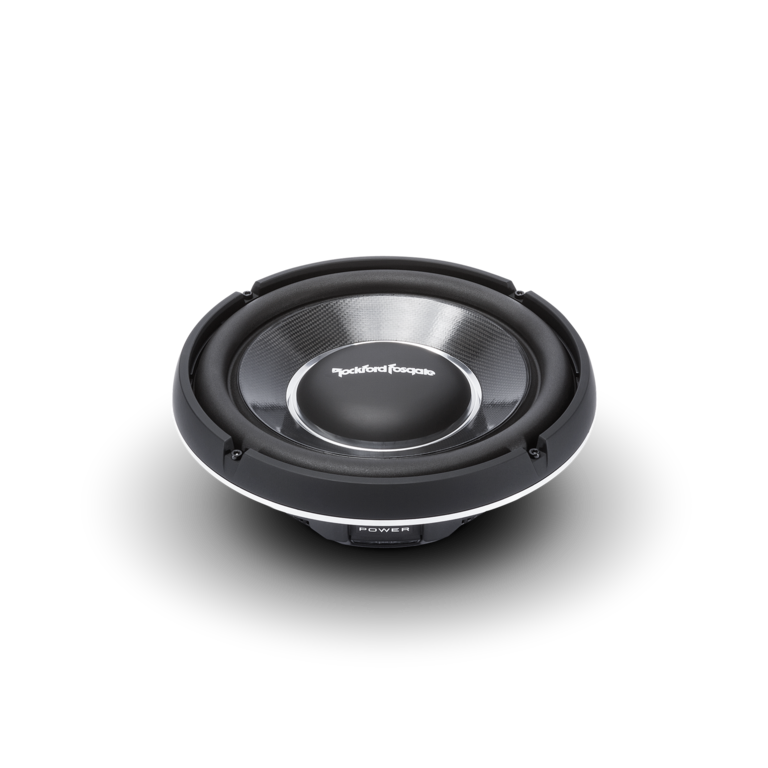

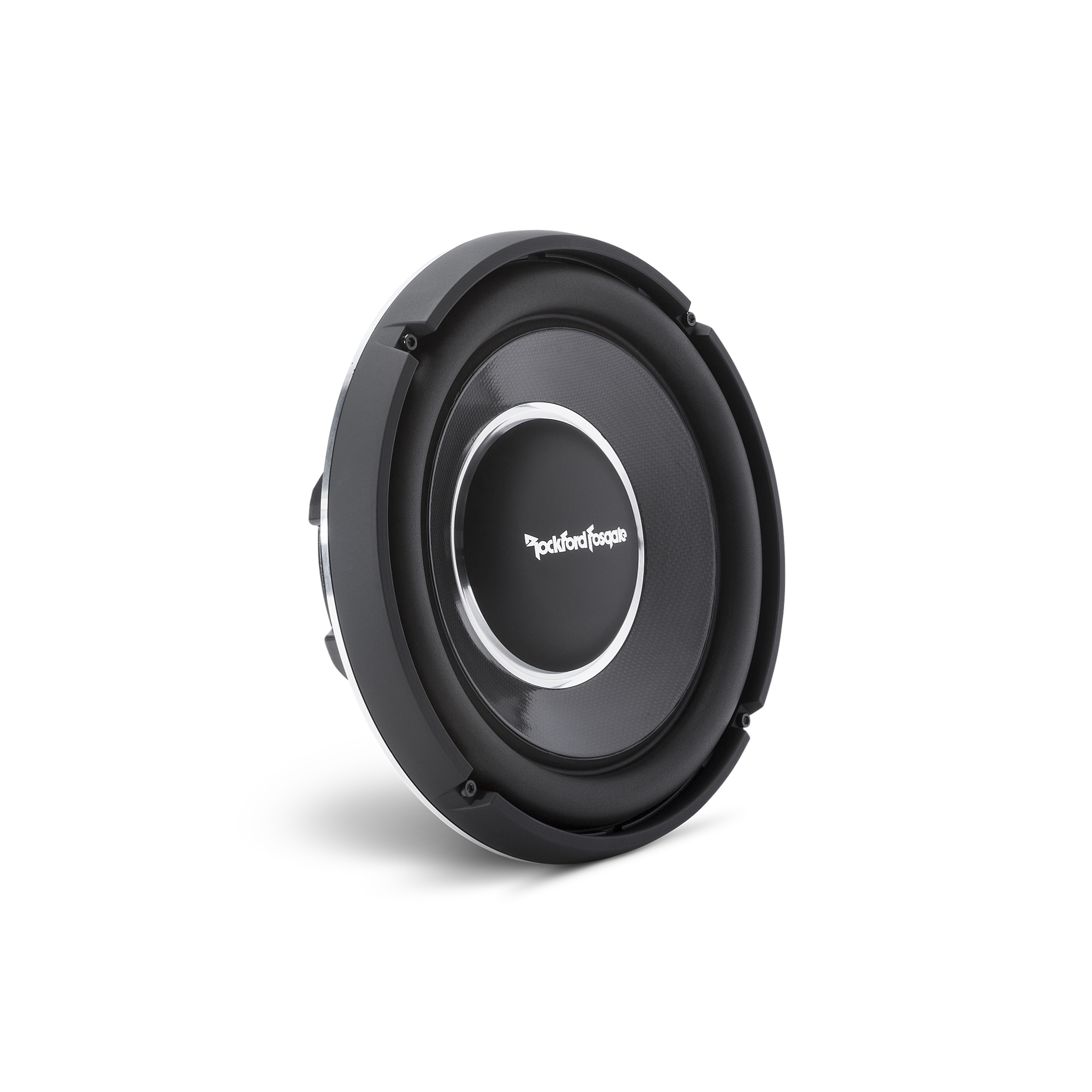

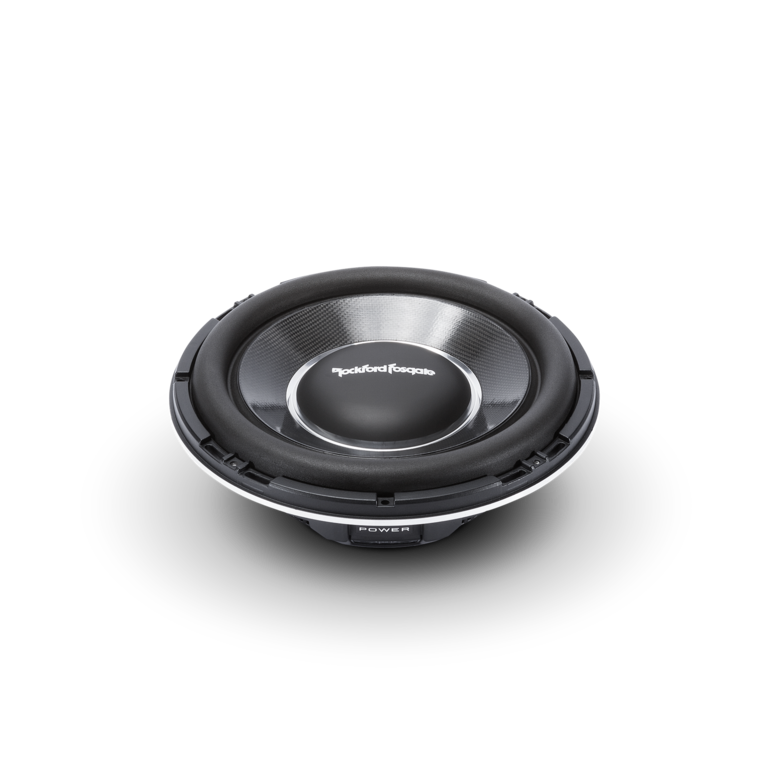

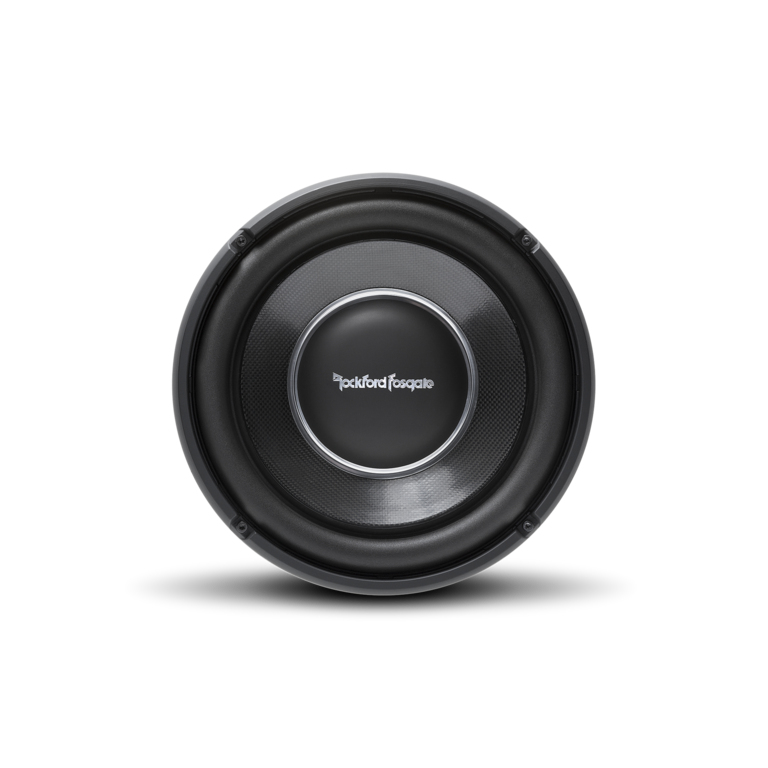

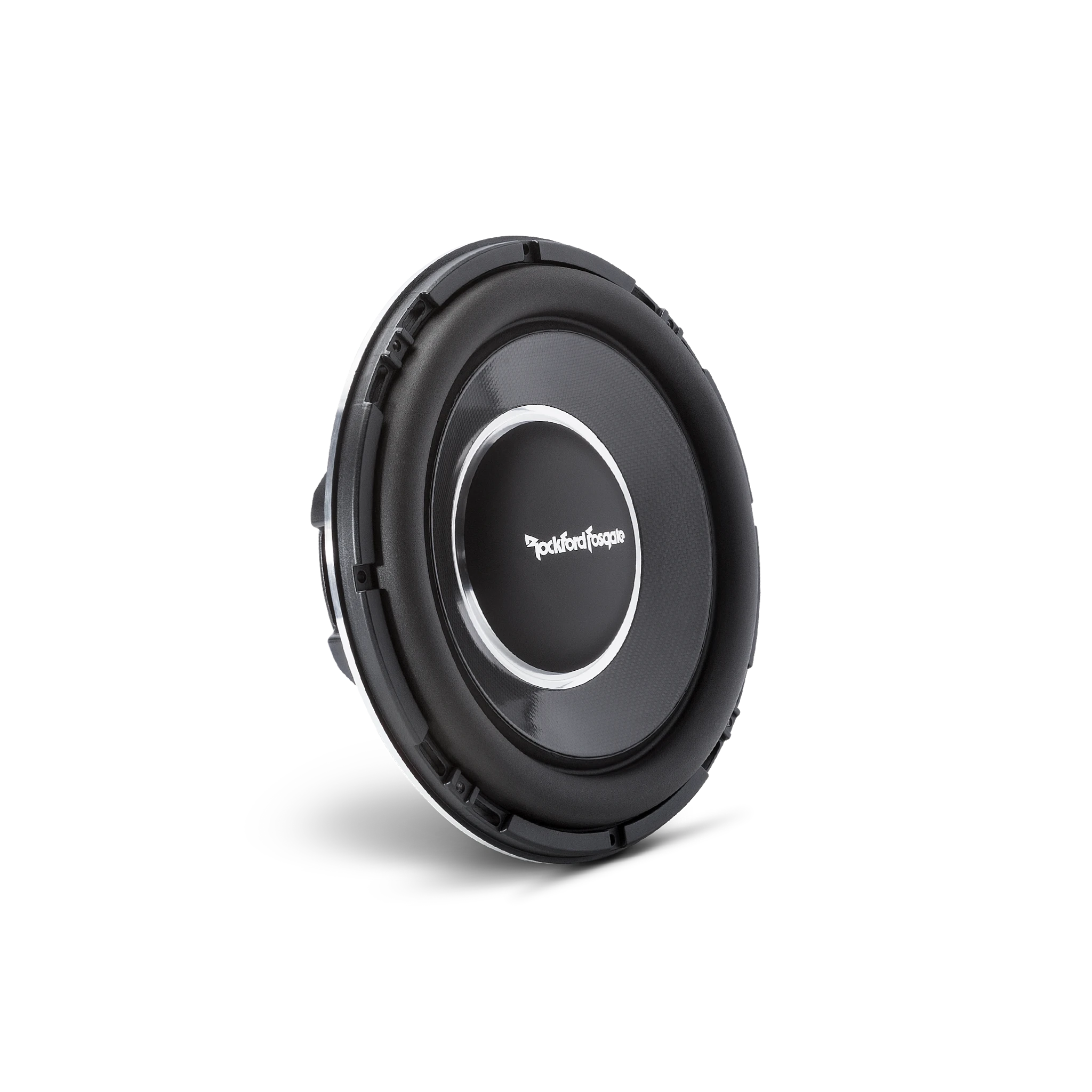

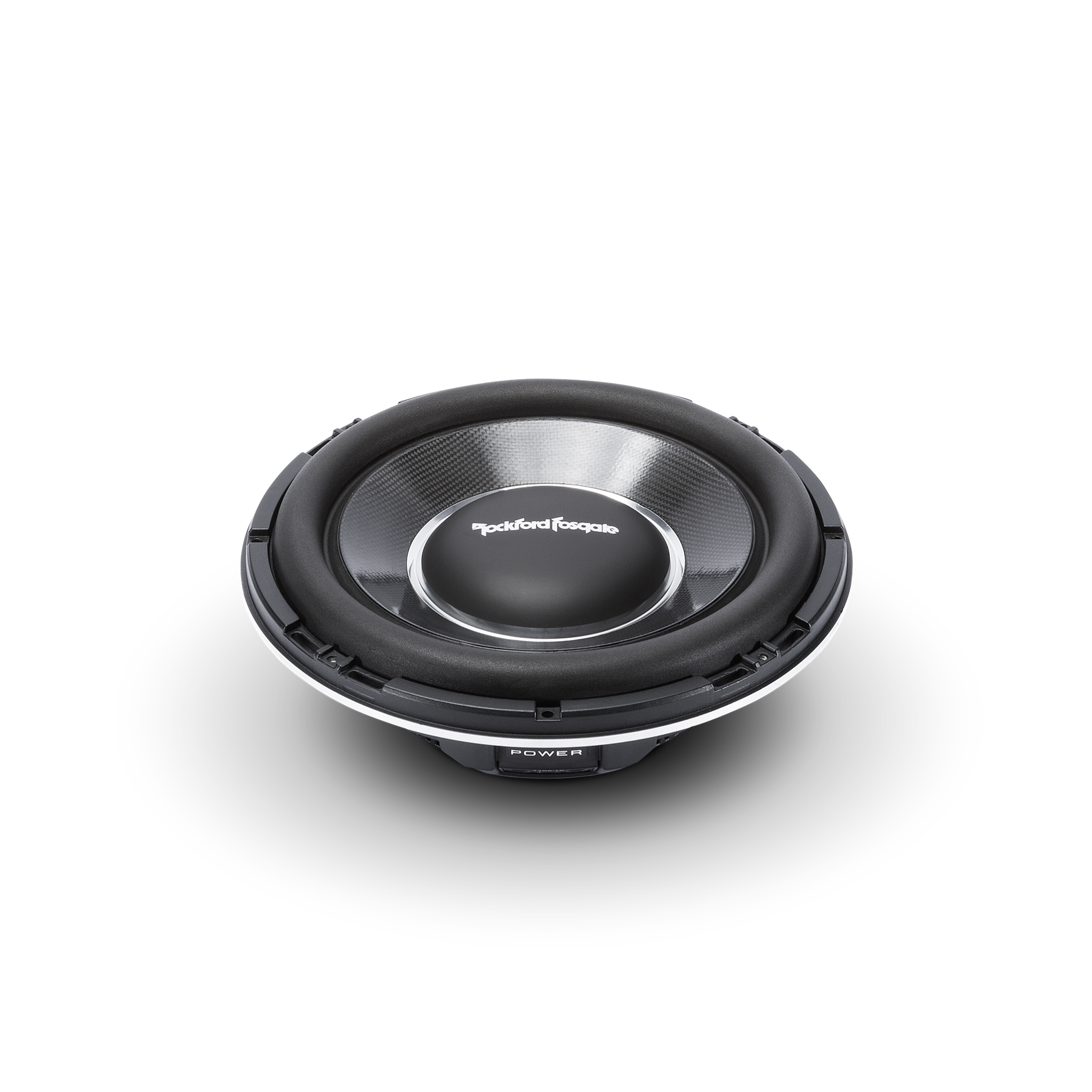

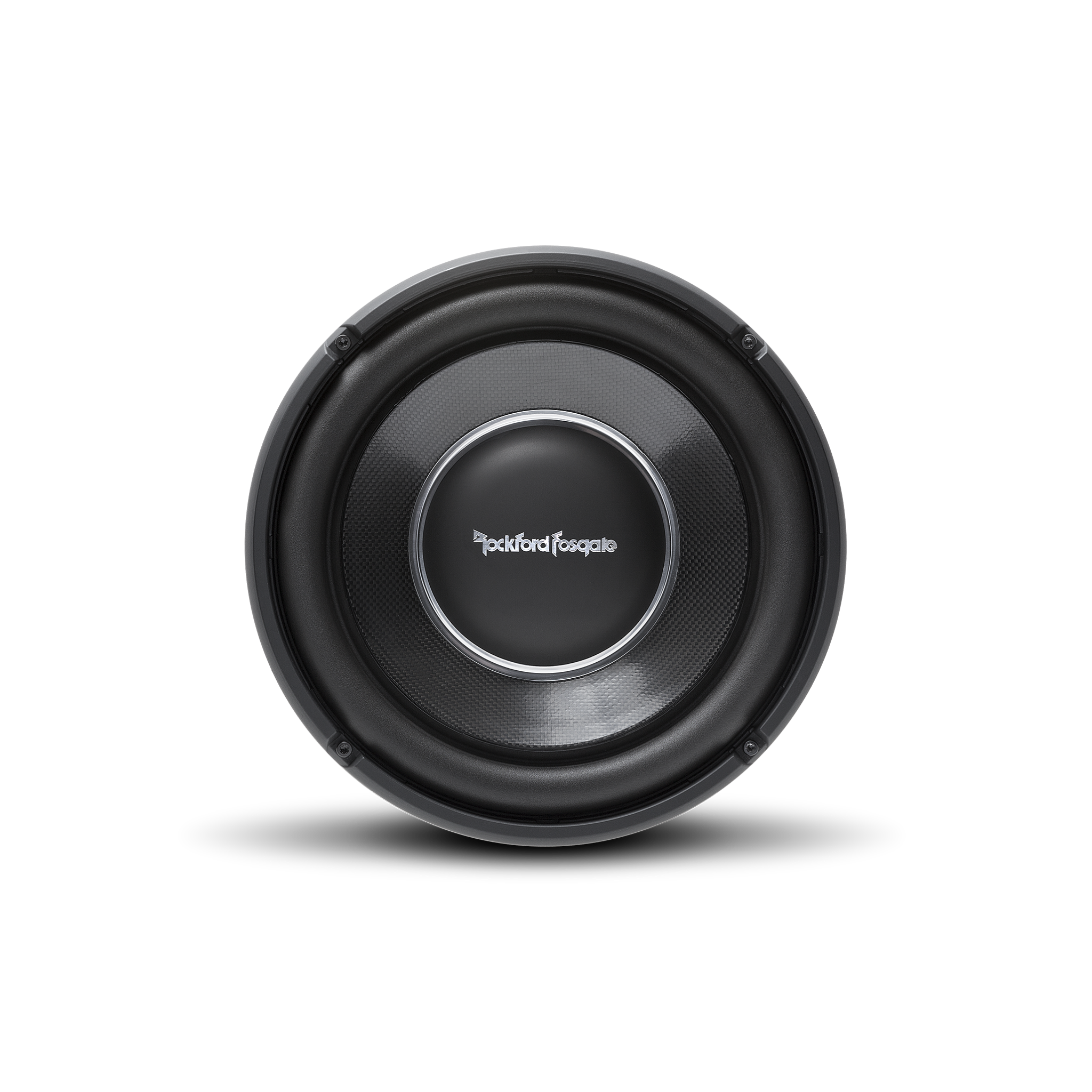

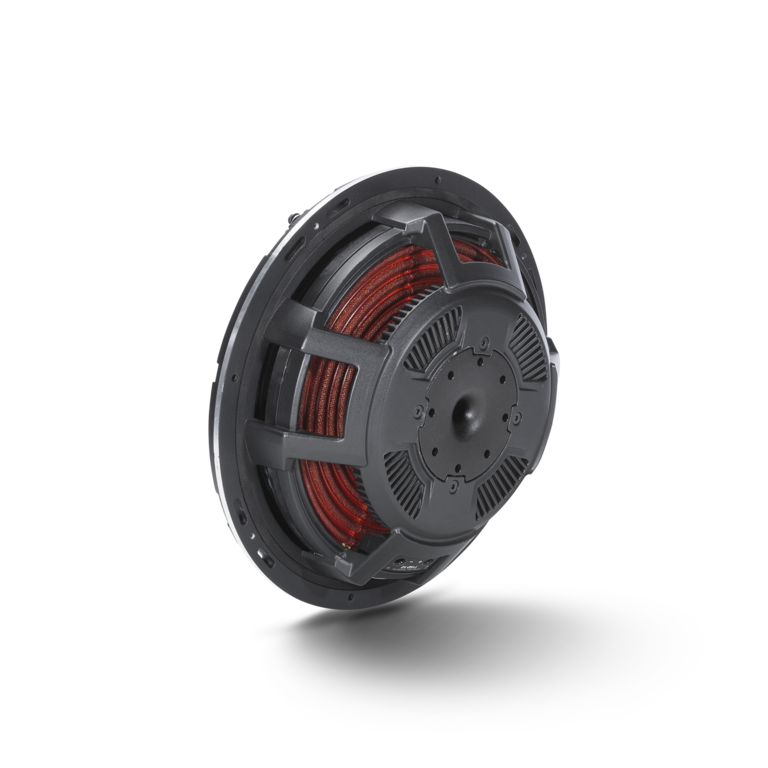

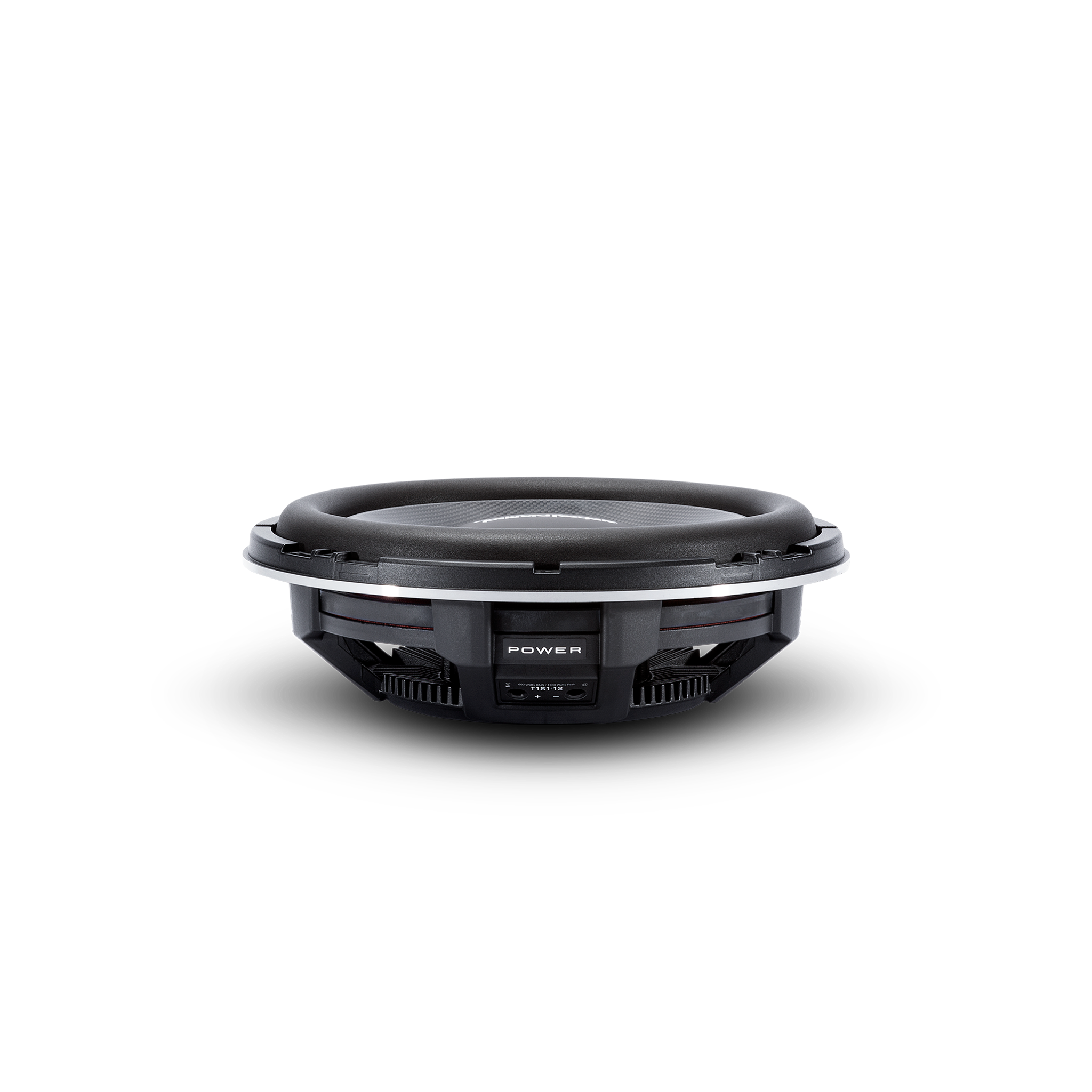

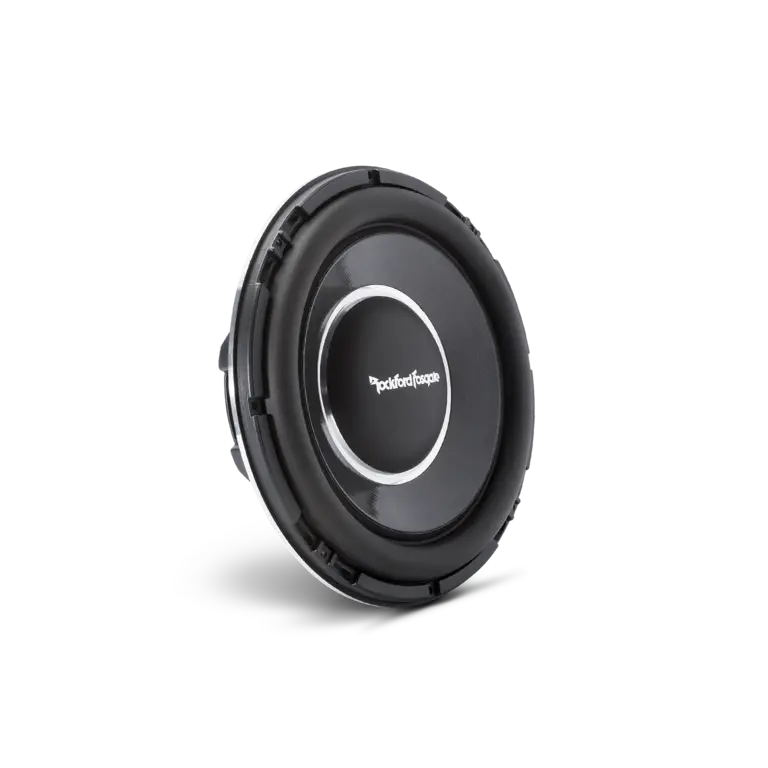

Rockford Fosgate T1S1-12 1ohm 12” shallow subwoofer

FEATURES AT A GLANCE

• Carbon fiber/PMI/glass fiber cone with aluminum dustcap
• Injection molded foam surround with VAST™
• Dual Nomex progressive spiders with integrated lead wires

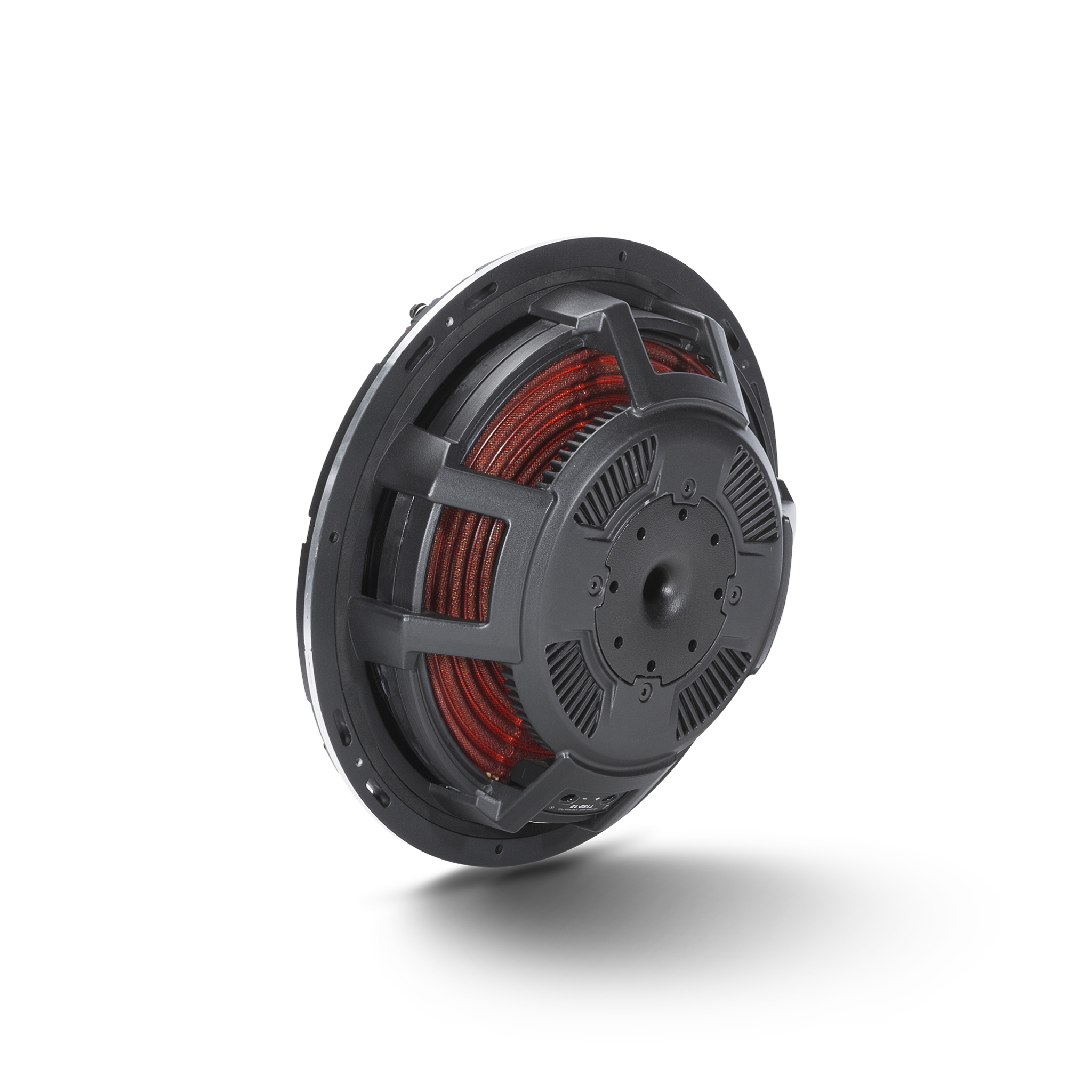

• Aluminum diecast frame with integrated heat sink fins
• Custom insulated push spring 10 AWG terminals
• Dual wound 2.5" voice coil with interior/exterior windings
• Encapsulating voice coil to former coupling technology (patent pending)
• Detachable die cast aluminum trim ring
• Proprietary split yoke pass thru motor technology (patent pending)
• High temp high energy neodymium motor structure
• Vented pole piece
• Integrated copper cap heat sinking shorting ring (IDHS)
• 1 Year Warranty
• Optional grille insert available
• Optimized for sealed enclosures

Need bass but don't have a lot of space? How about more power handling than your average shallow subwoofer? Well, the T1 "Slimline" subwoofers are not your average shallow, in fact, they have been painstakingly designed to near exact performance characteristics of traditional sized Power T1 subwoofers you're already familiar with.

We're calling these "slim" subwoofers because they don't take a lot of depth and offer bass response similar to a traditional sized model.  How can this be true? Well, let's just say the Wizards-of-Fos engineered an ingenious slotted voice coil assembly that exhibits long excursion travel. Don't worry, you don't need to understand how it works, you just have to listen to how awesome they sound!

Magnet Weight (oz)

14.42 oz. (0.41 Kg)

Subwoofer Type

Shallow

Speaker Connector

10 AWG slot loaded

Power Handling (Watts RMS)

600 Watts RMS
1200 Watts Max

Nominal Impedance

1-Ohm

CEA-2031 Compliant

Xmax (mm)

15

Fs (Hz)

36

Voice Coil Diameter

2.98" (75 mm)

Size

12"

Qes

1.17

Qts

1.06

Qms

11.22
