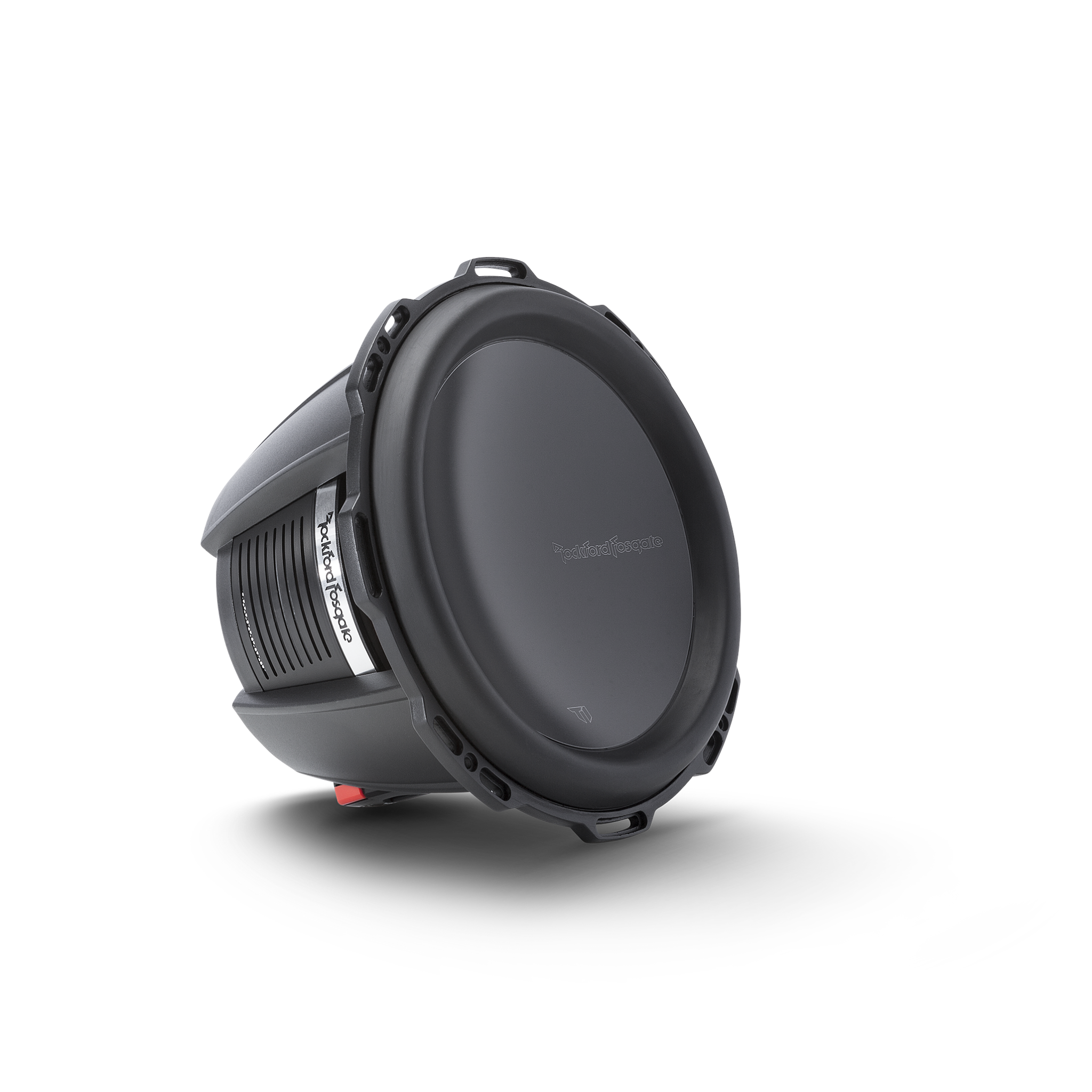

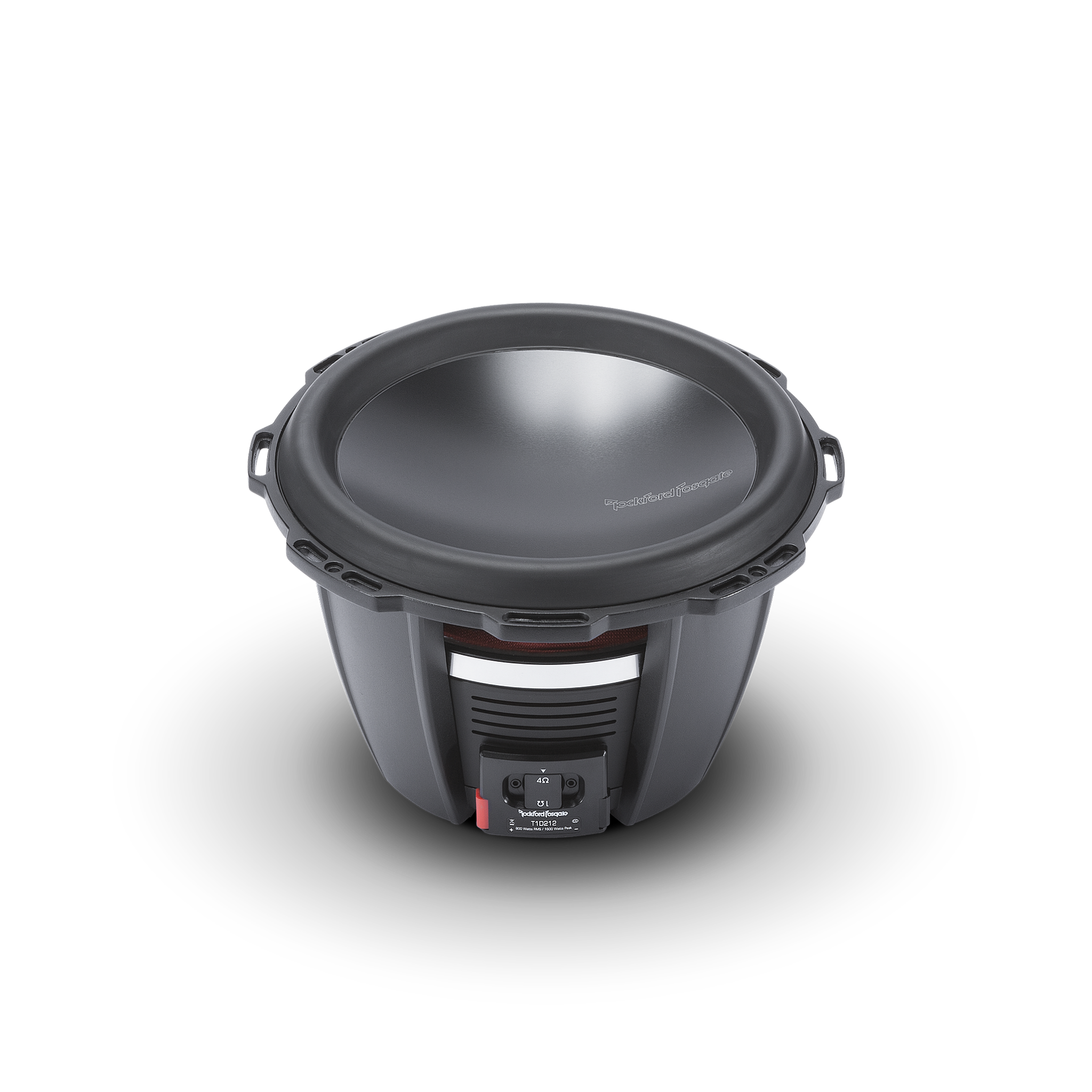

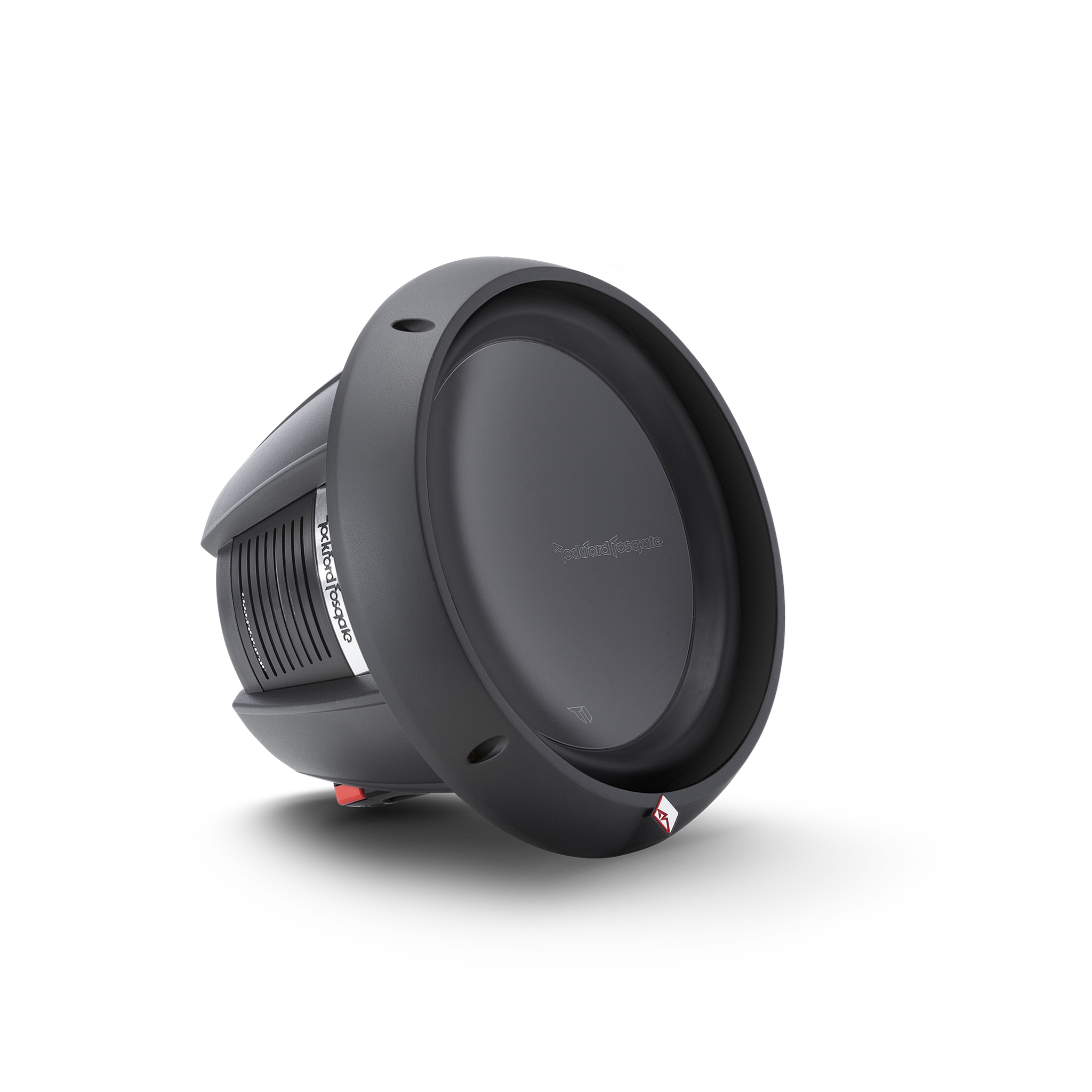

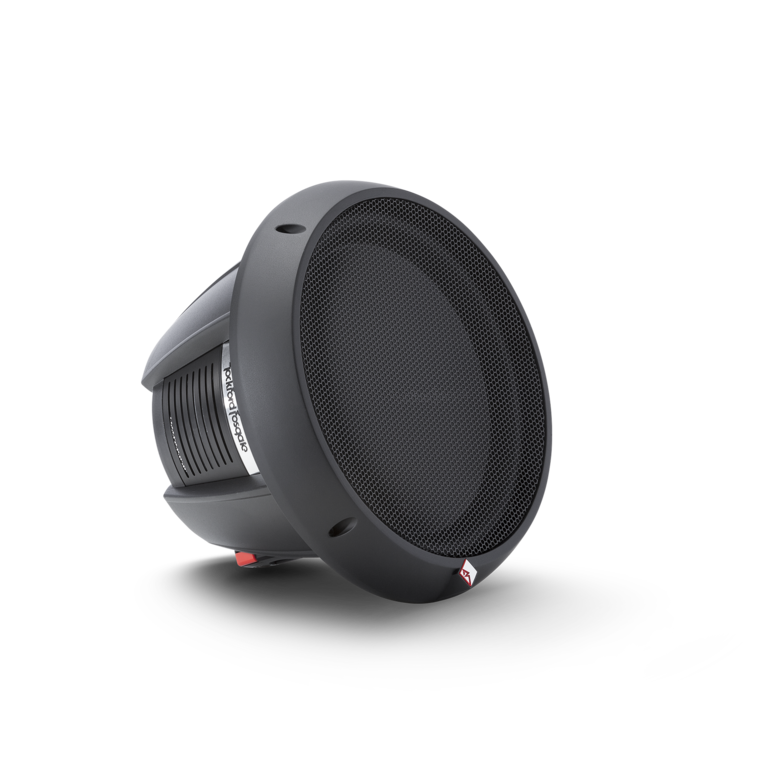

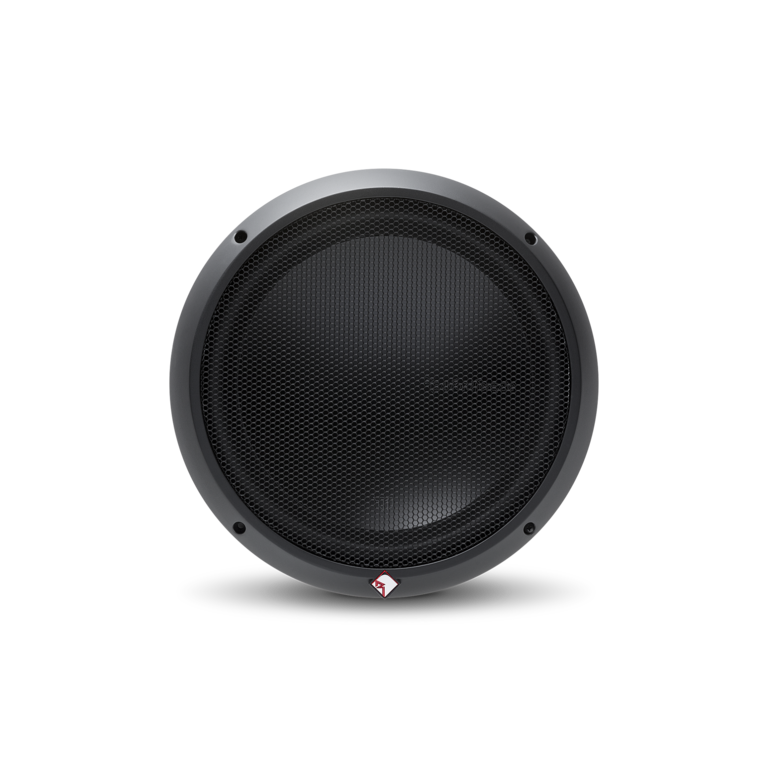

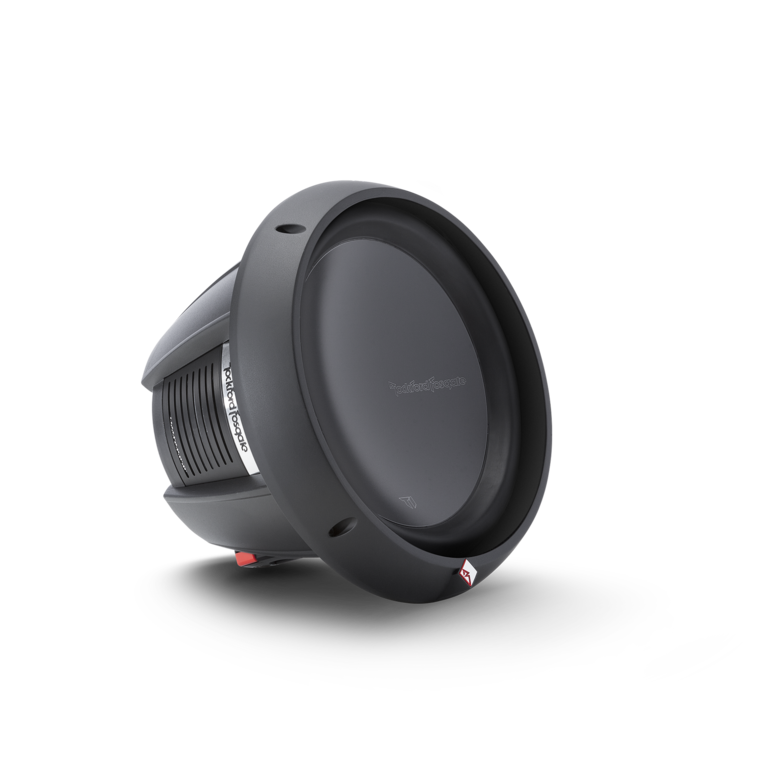

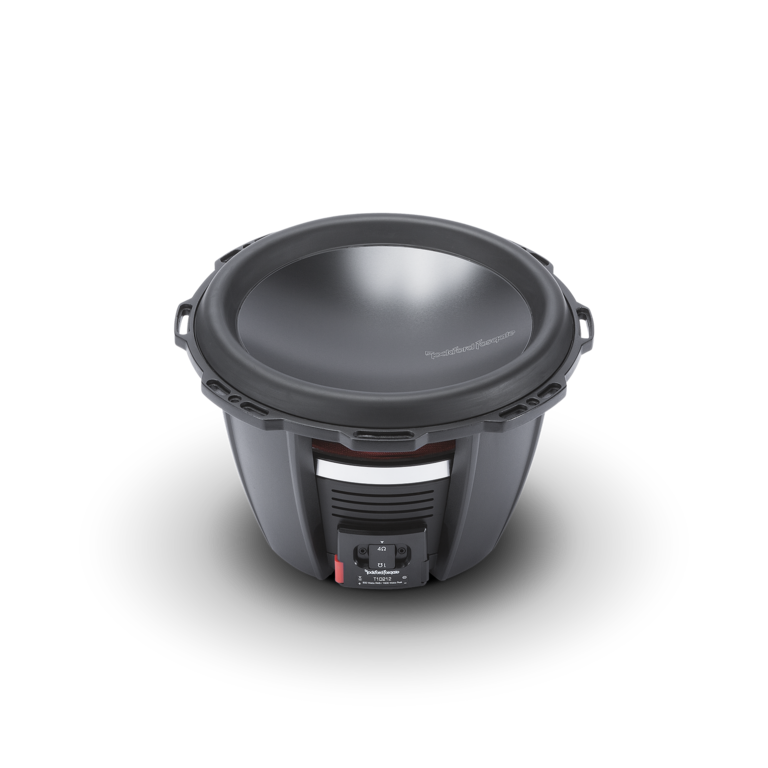

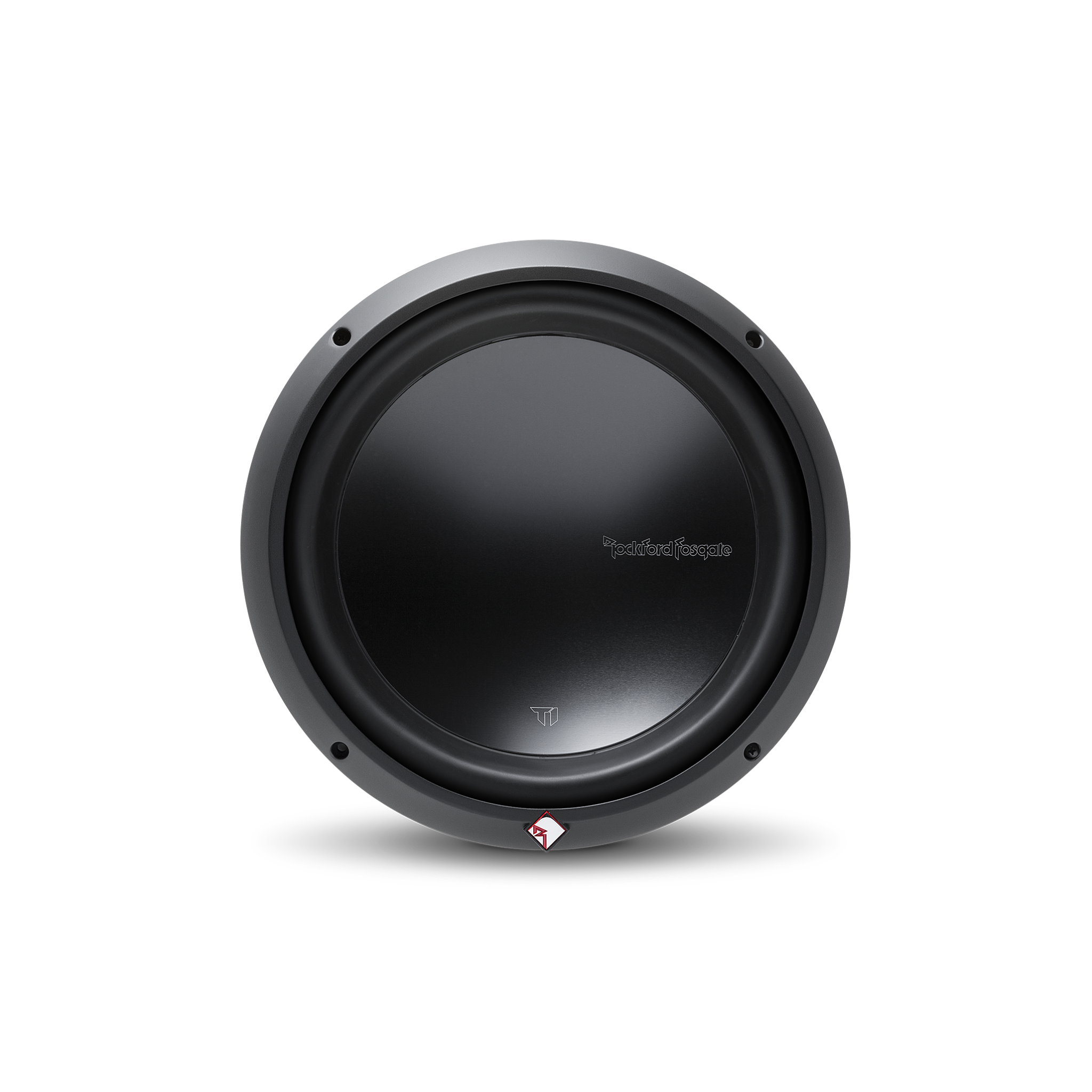

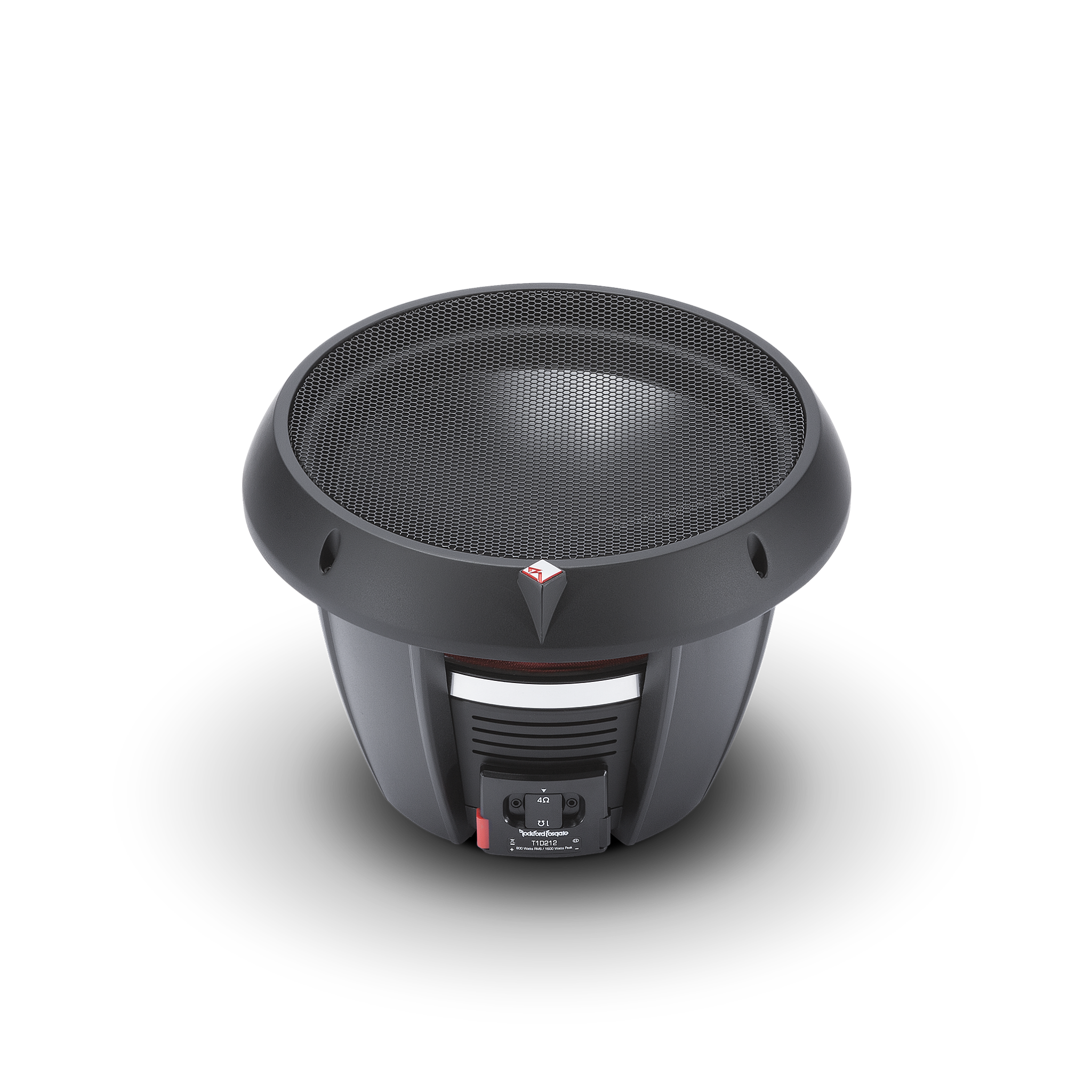

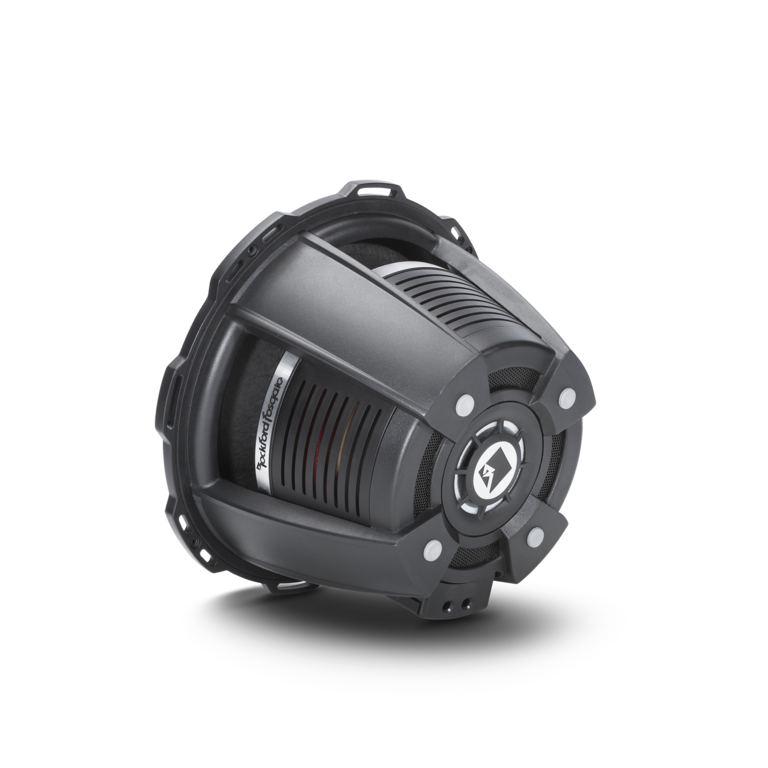

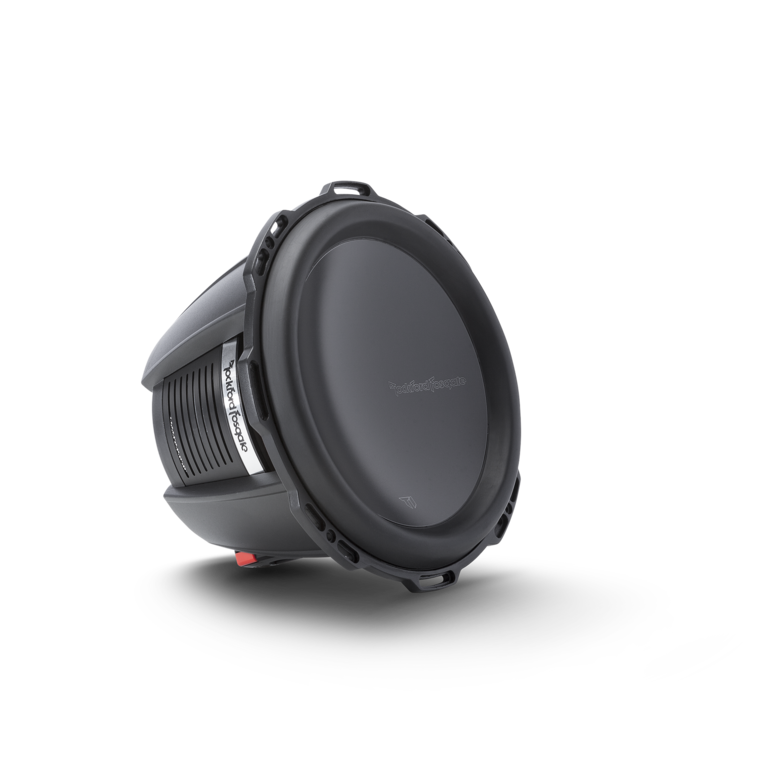

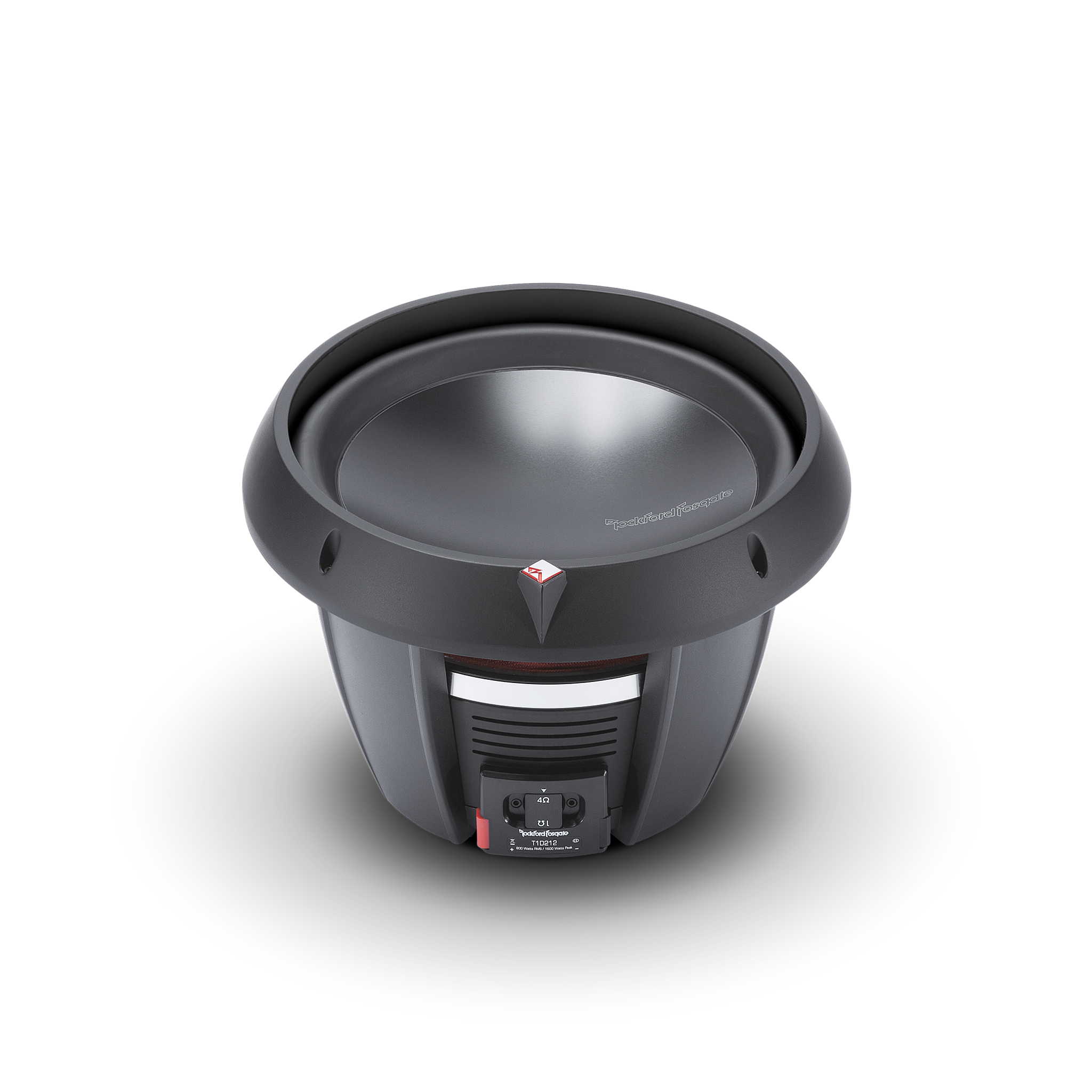

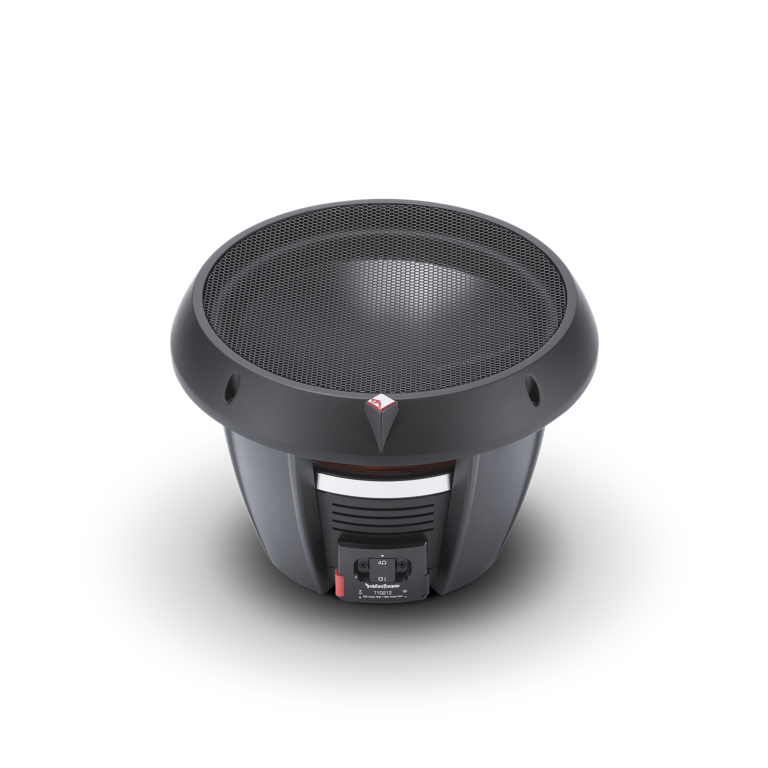

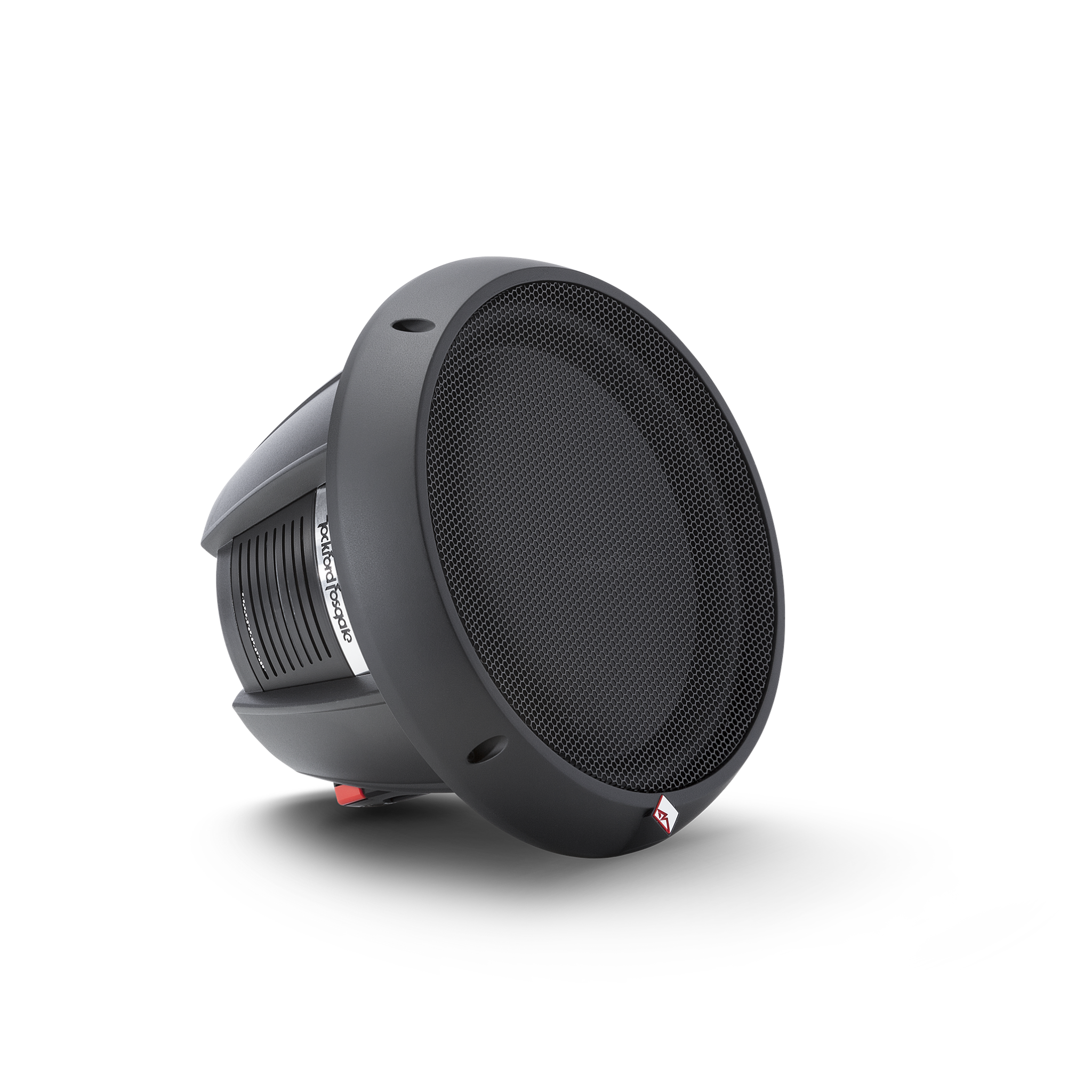

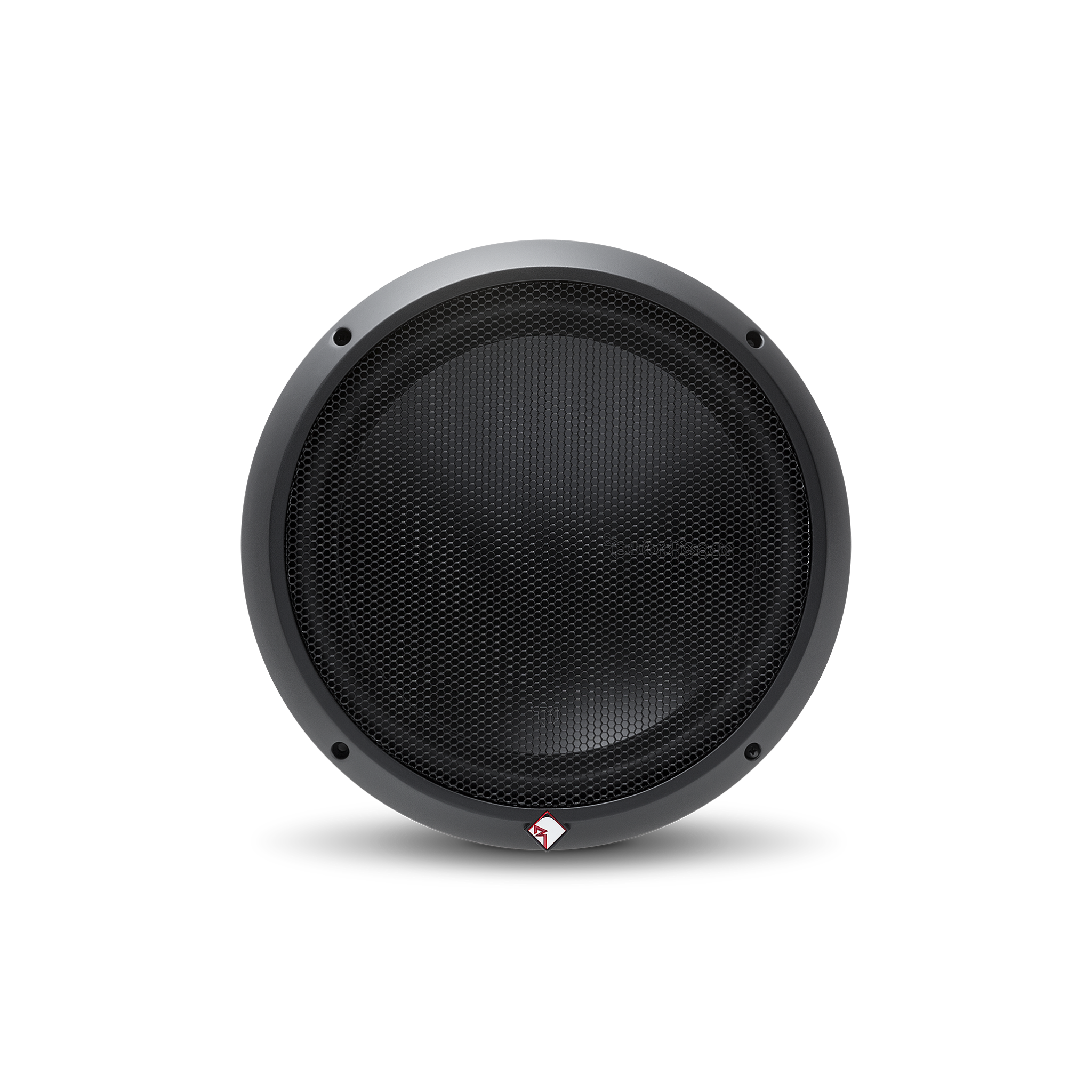

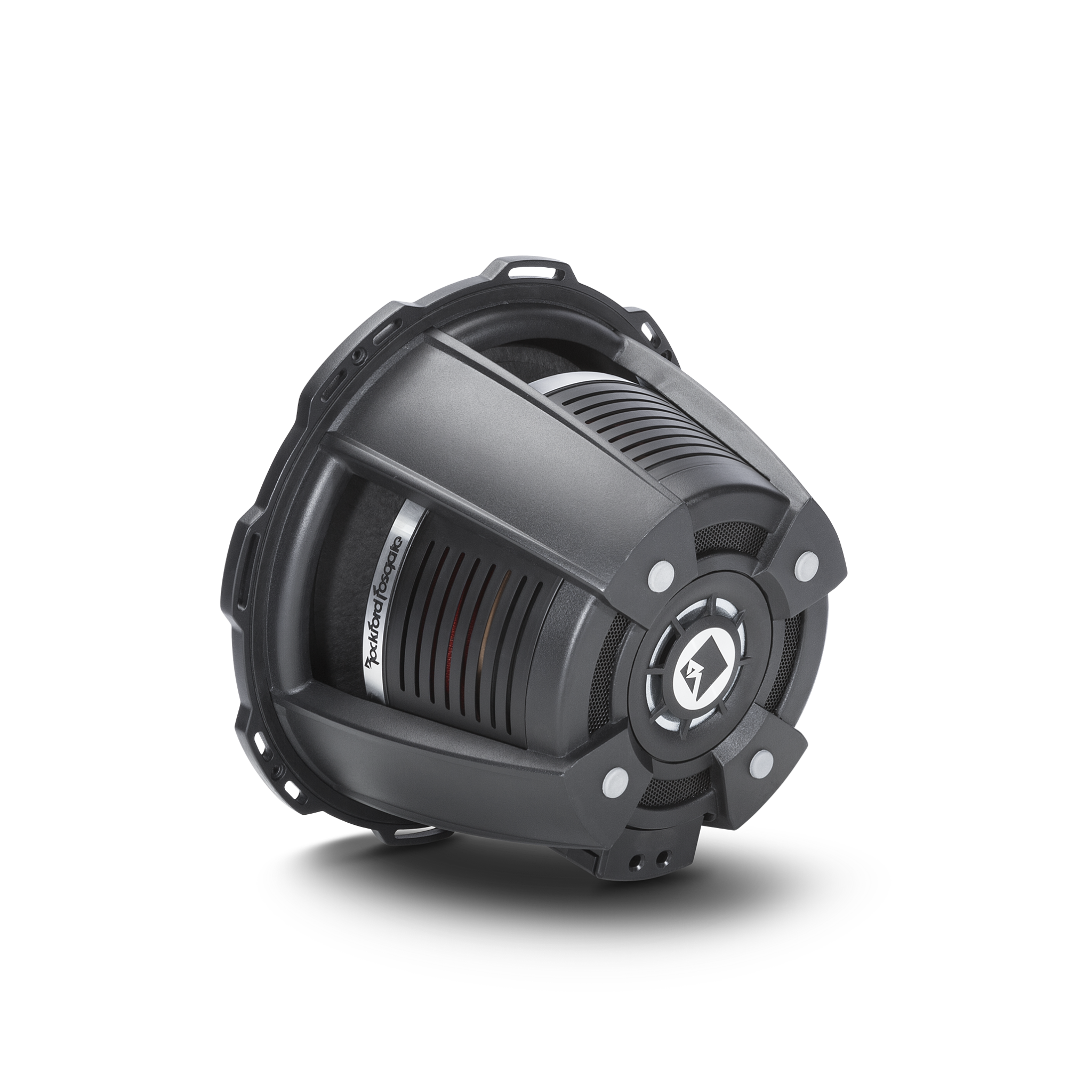

Rockford Fosgate T1D412 Dual 4ohm 12” subwoofer

FEATURES AT A GLANCE

• Symmetrical dual progressive roll tear resistant poly-cotton spiders
• Periodic-stitched fatigue resistant tinsel lead wire
• Optimized and matched magnetic and complicance geometry
• Proprietary 8 AWG insulated allmetal input spring terminal connection
• Kevlar fiber reinforced paper cone
• Anodized aluminum voice coil former / copper clad aluminum wire
• Rigid die-cast aluminum basket
• Anodized aluminum heat sinking dust cap
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Optimized pole piece and spider venting
• 1 Year Warranty

The Power Series T1D412 Dual 4-Ohm subwoofer builds on innovative new Rockford Fosgate technologies. Built for cars and trucks, these bad boys have patented VAST technology that increases surface cone area up to 25% so the T1D412 performs like a much larger woofer over the previous model. The new FlexFit basket not only looks the part but it provides extreme flexibility for extreme installations. Clean, high tech and ready to set off car alarms, the T1D412 is here!

Qes

0.71

Qms

4.50

Vas (Liters)

55.8

Xmax (mm)

16

Re (Ohms)

6.50

Le (mH)

2.4

Magnet Weight (oz)

123 oz. (3.48 kg)

SPL (dB @ 1w/1m)

85

CEA-2031 Compliant

Subwoofer Type

Standard

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

1.25 cu. ft. (35.3 Liters)

Vented Box Volume (Vb)

1.75 cu. ft. (49.5 Liters)
