FEATURES AT A GLANCE
- Symmetrical dual progressive roll tear resistant poly-cotton spiders
- Periodic-stitched fatigue resistant tinsel lead wire
- Proprietary 8 AWG insulated allmetal input spring terminal connection
- Optimized and matched magnetic and complicance geometry
- Kevlar fiber reinforced paper cone
- Anodized aluminum voice coil former / copper clad aluminum wire
- Rigid die-cast aluminum basket
- Anodized aluminum heat sinking dust cap
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Optimized pole piece and spider venting
- 1 Year Warranty

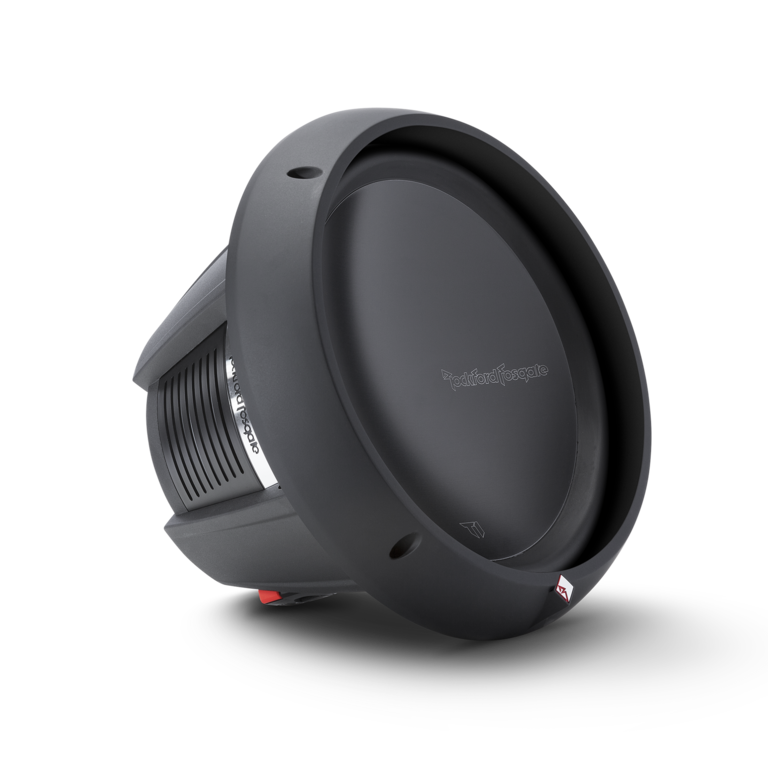

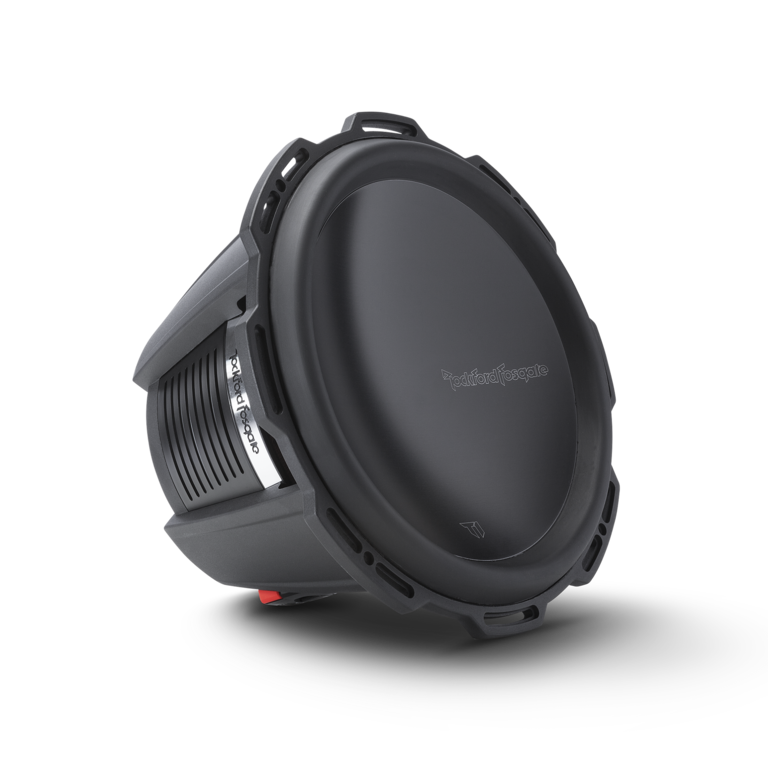

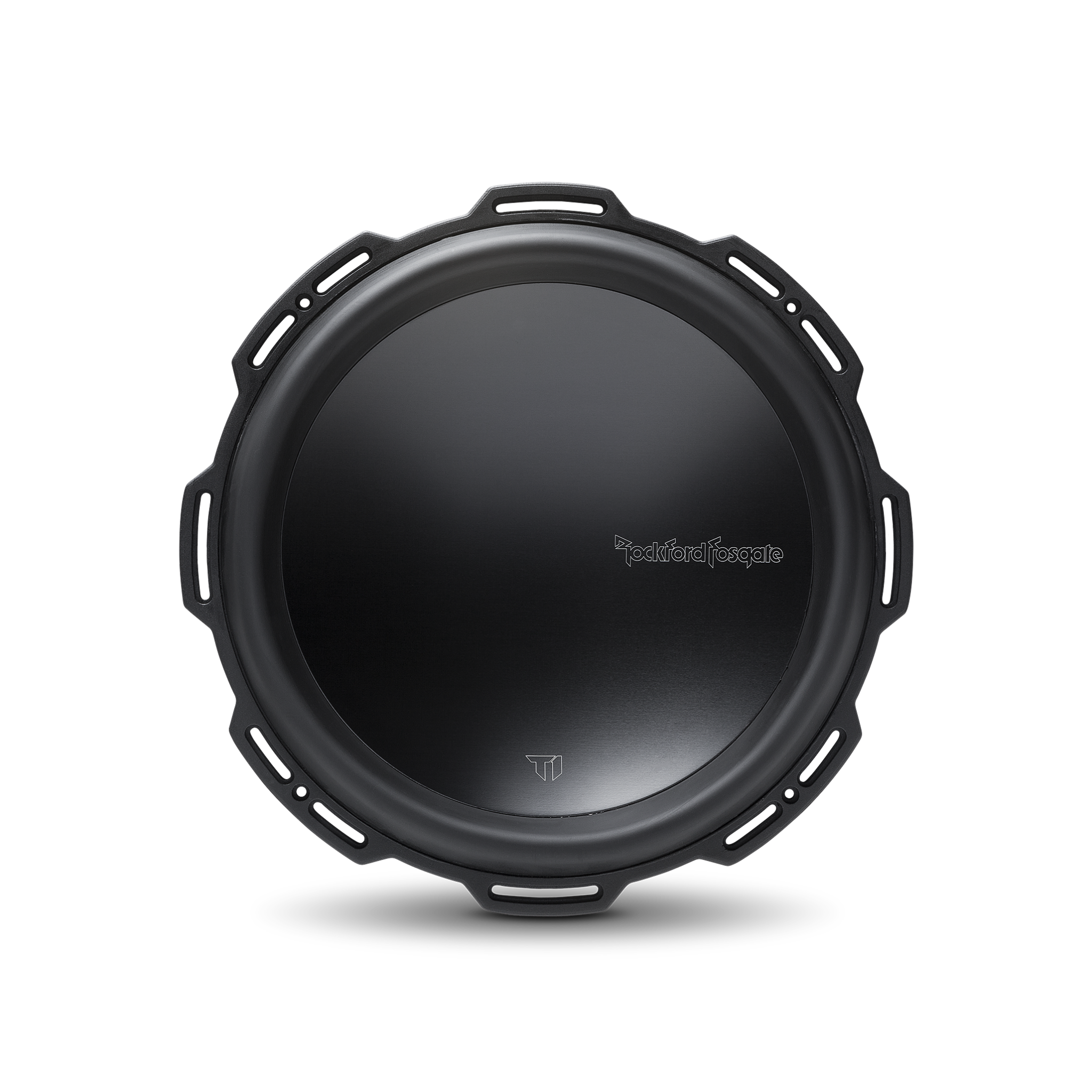

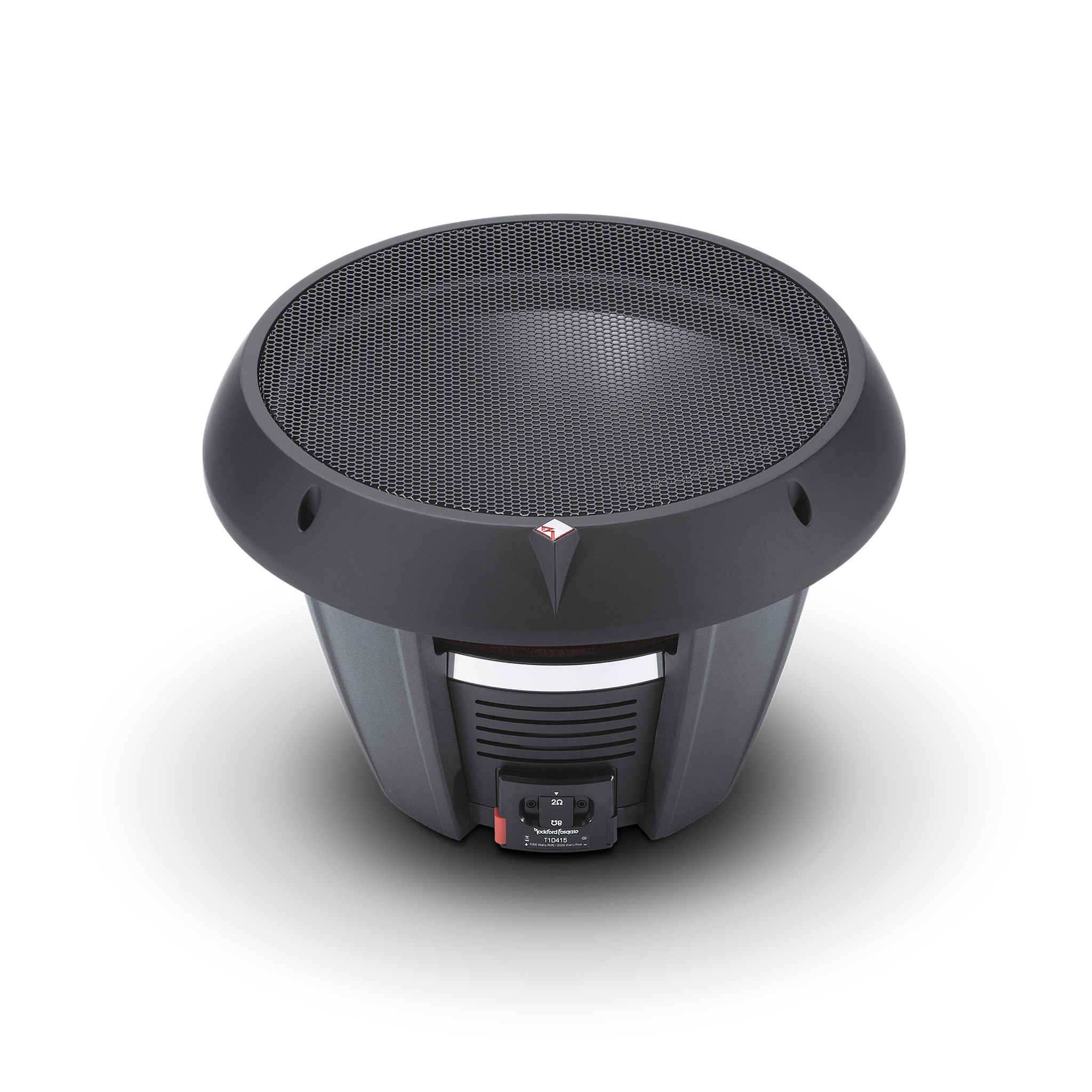

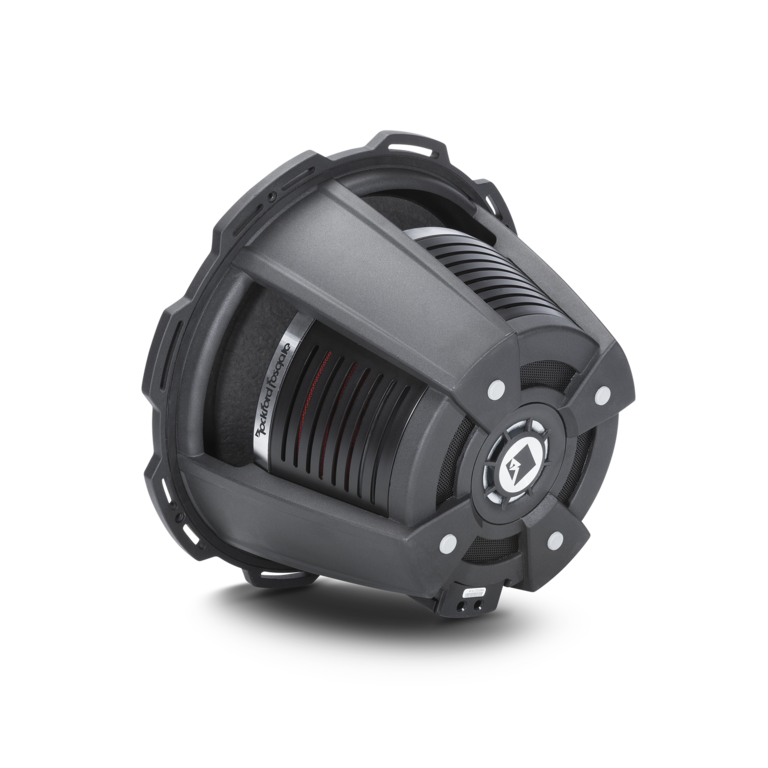

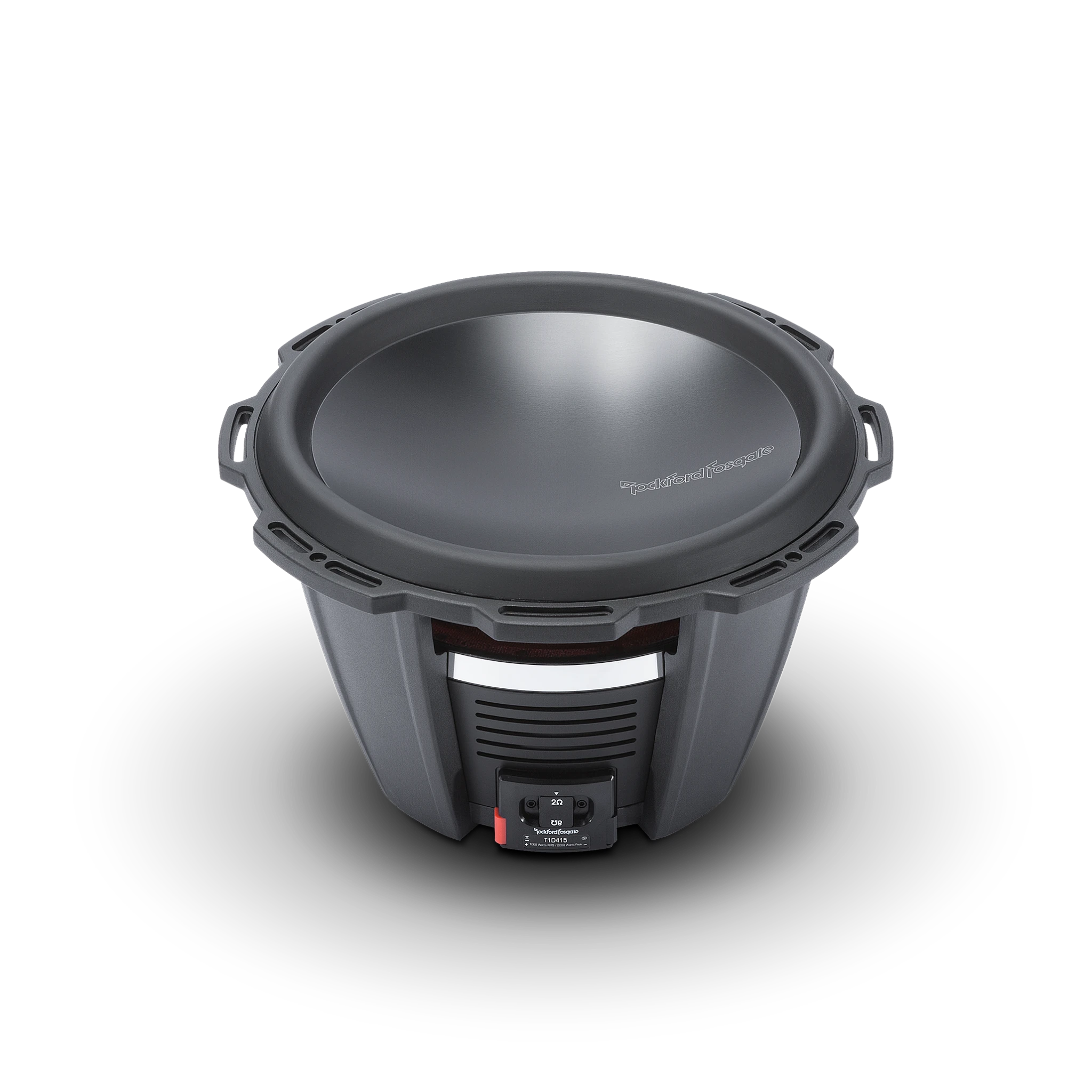

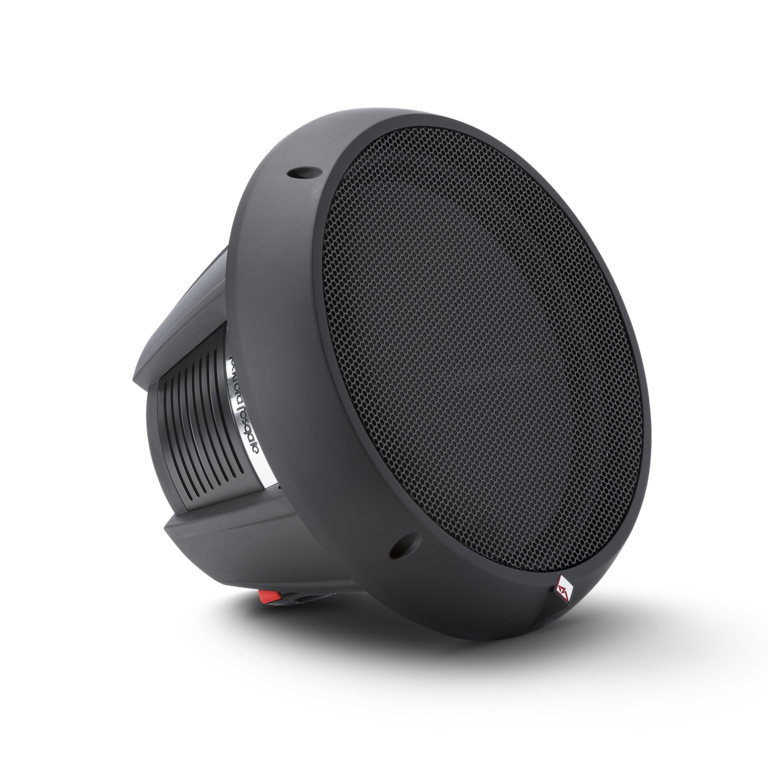

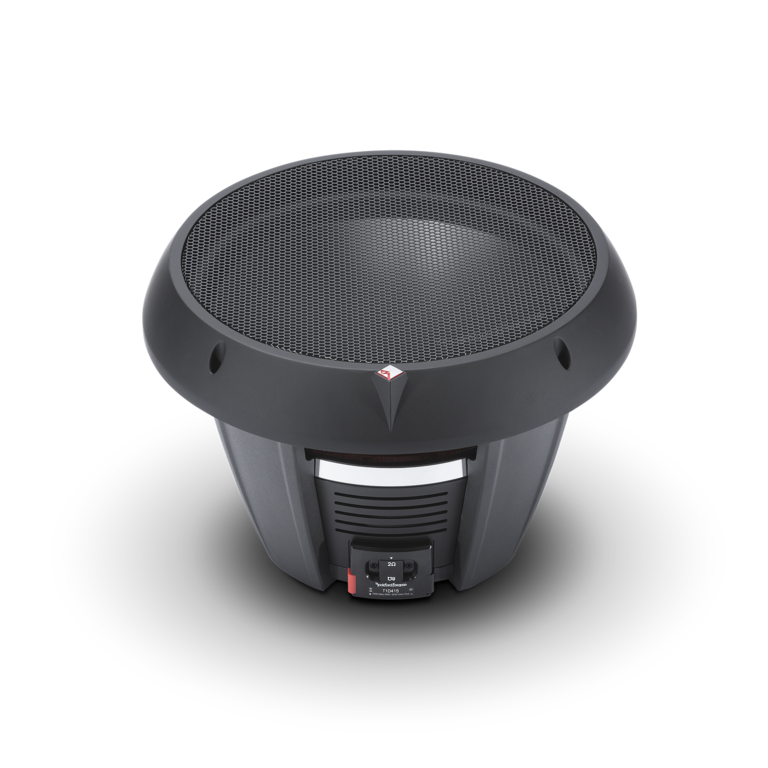

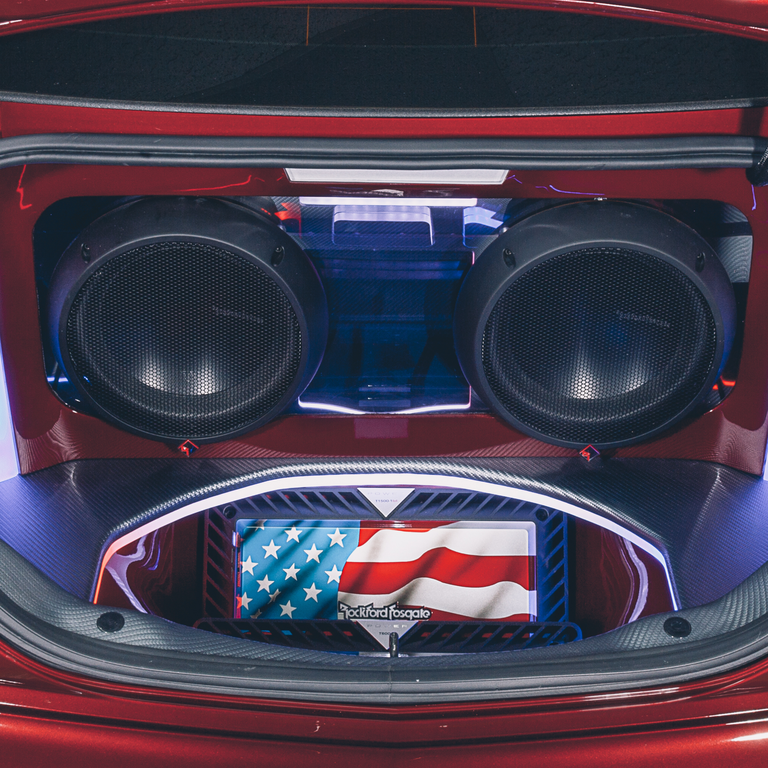

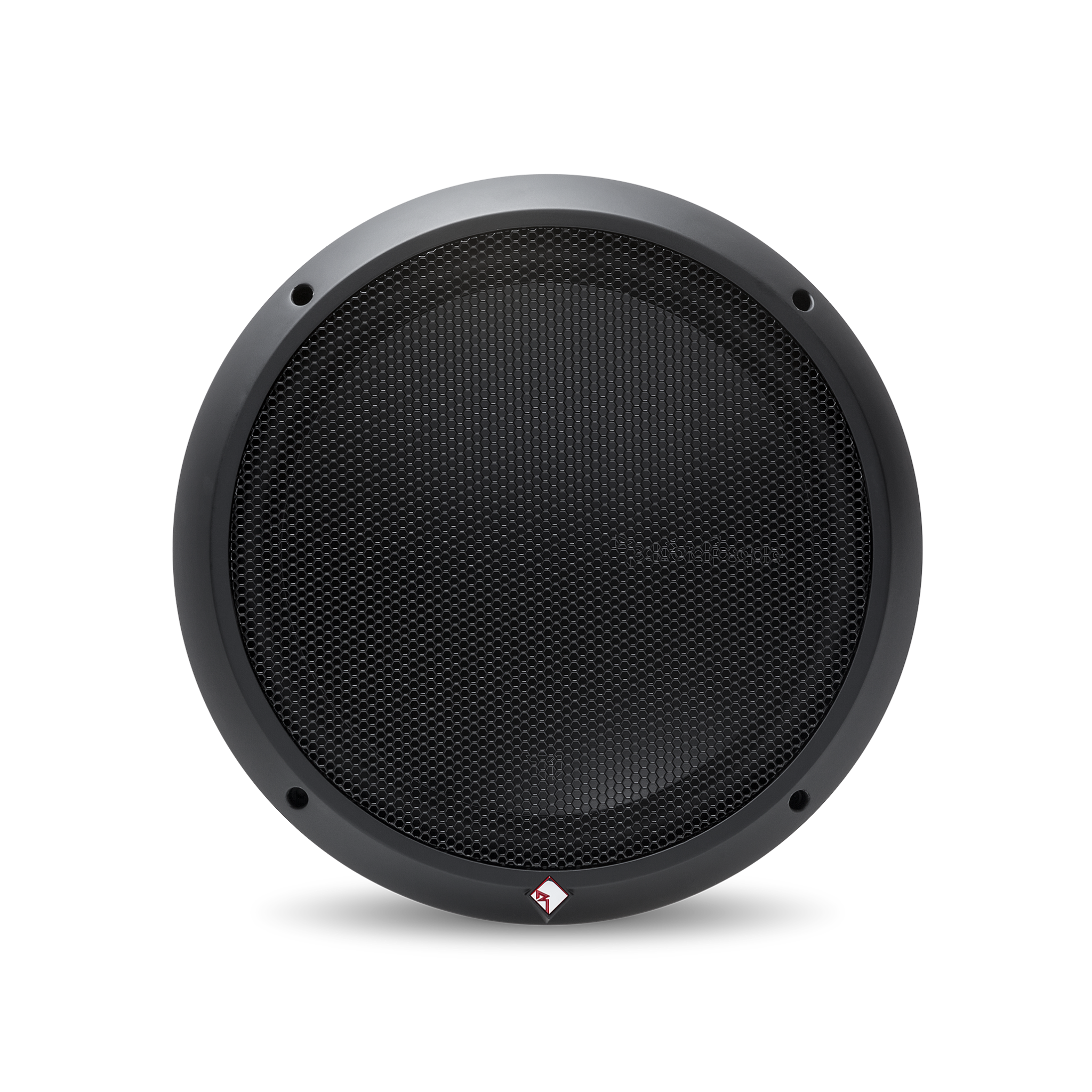

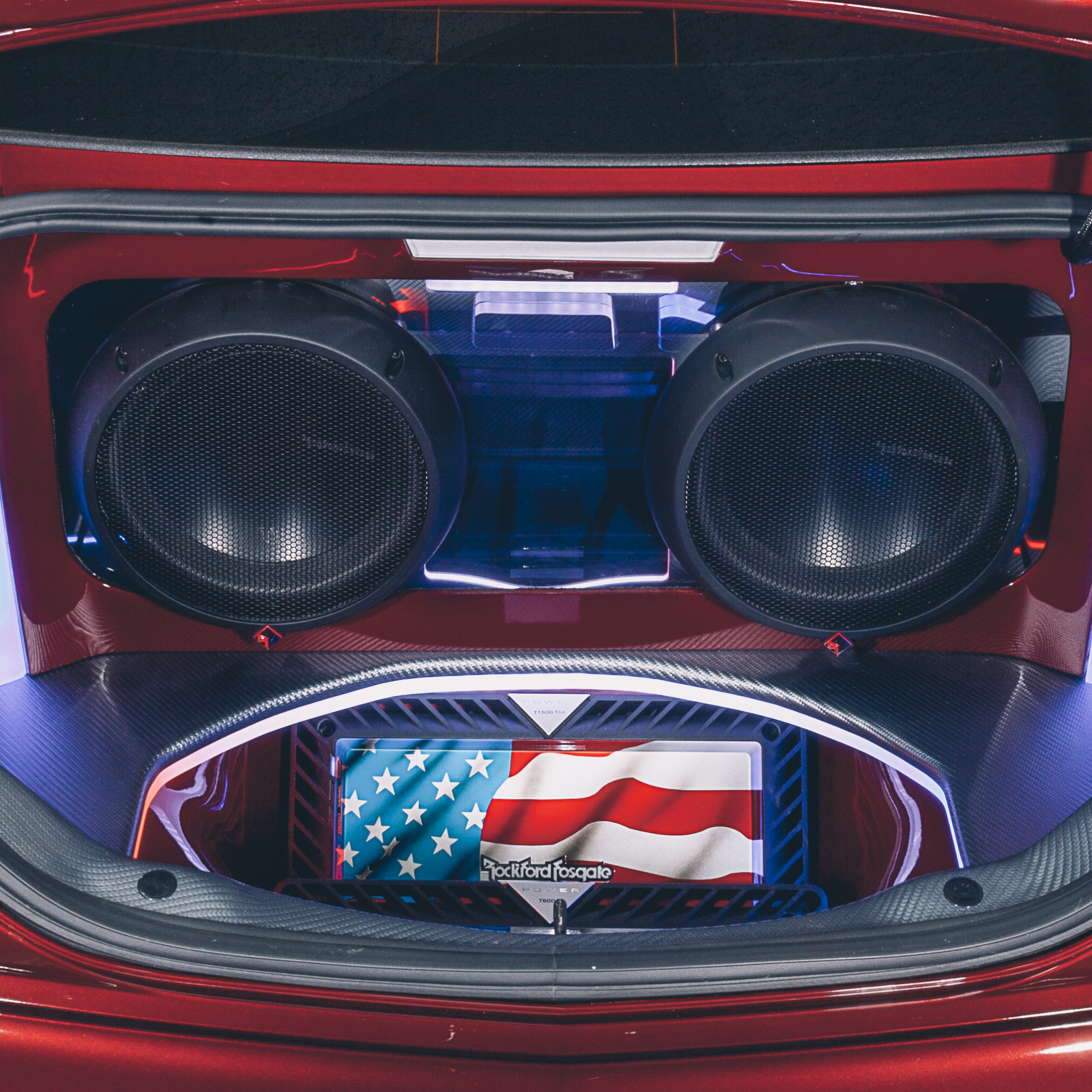

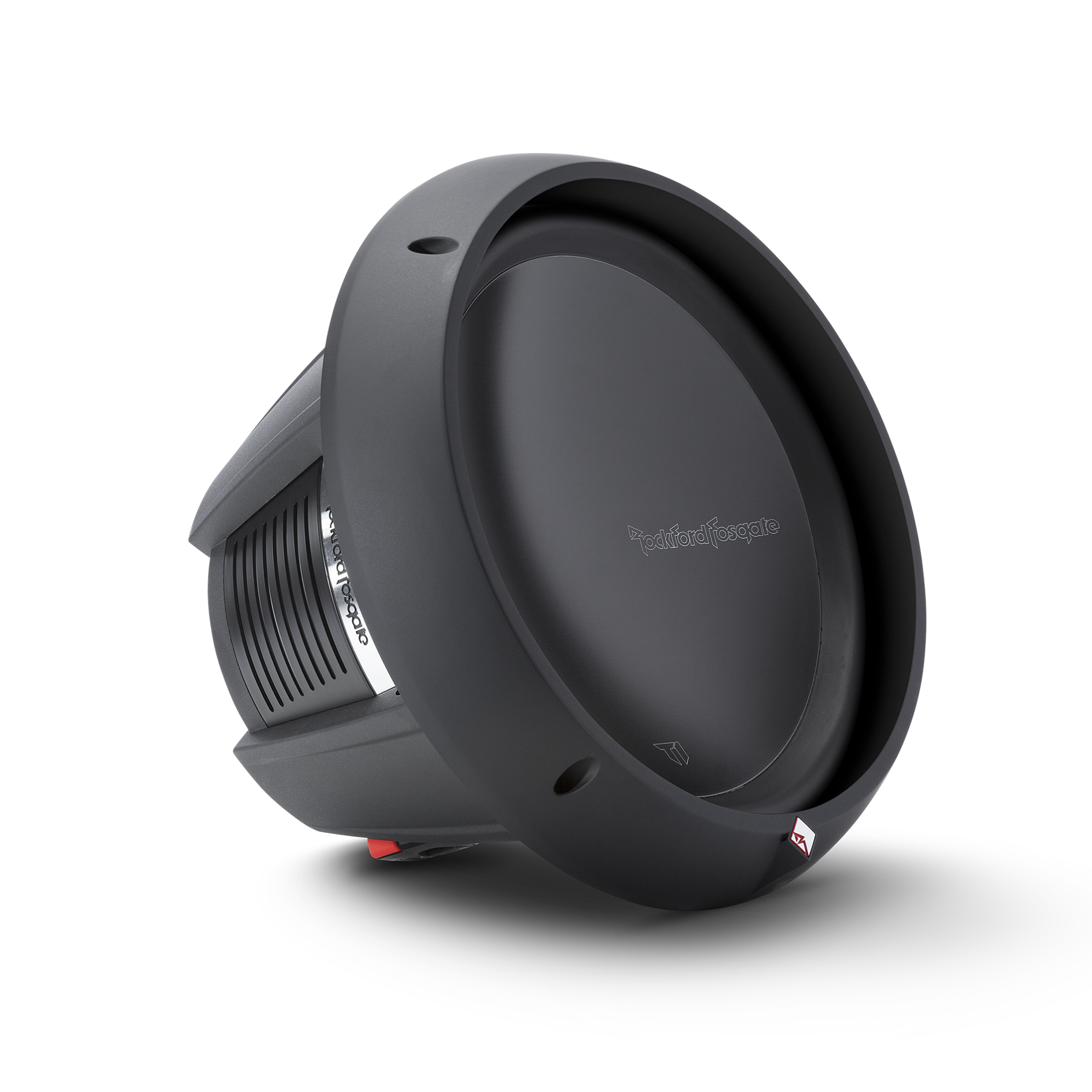

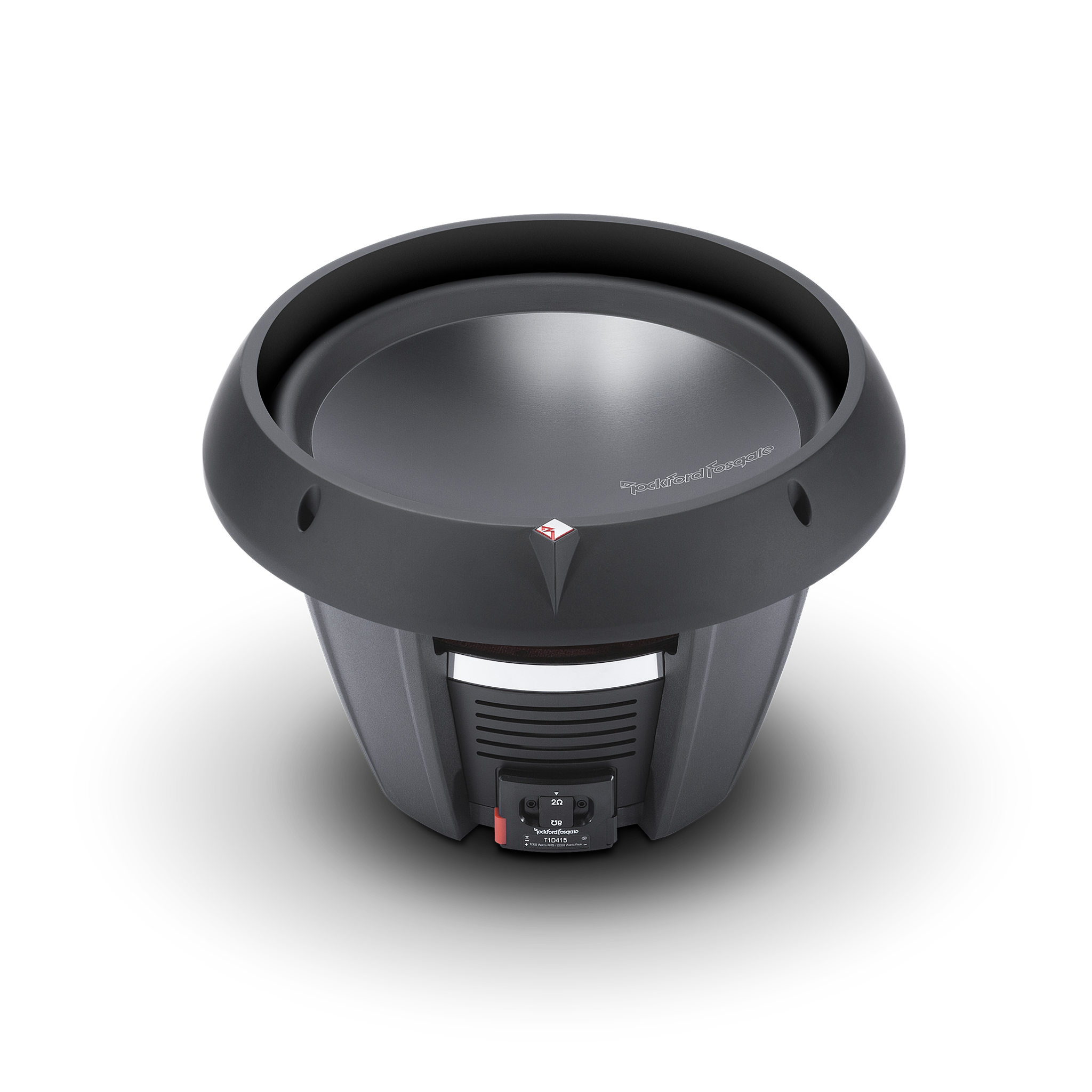

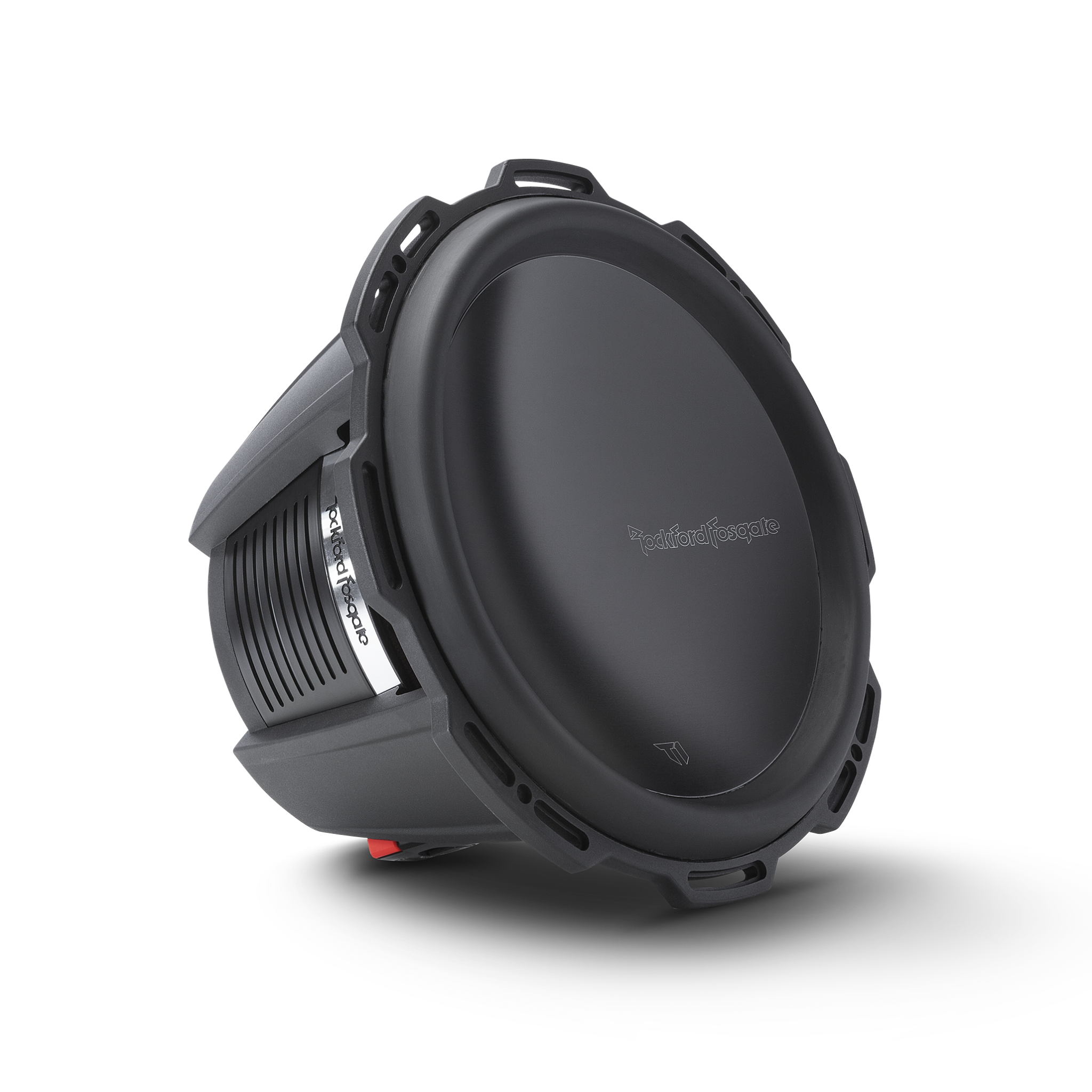

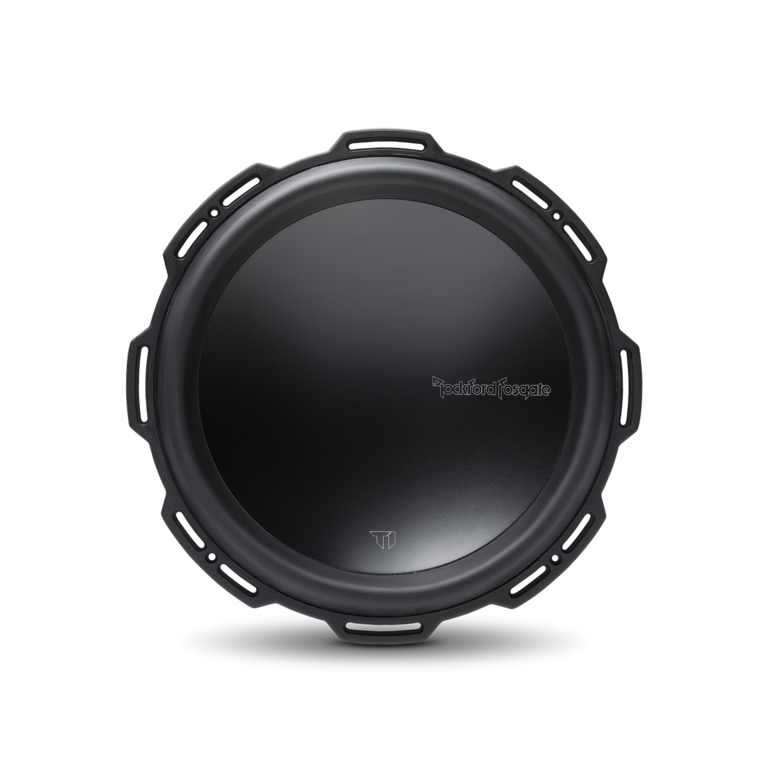

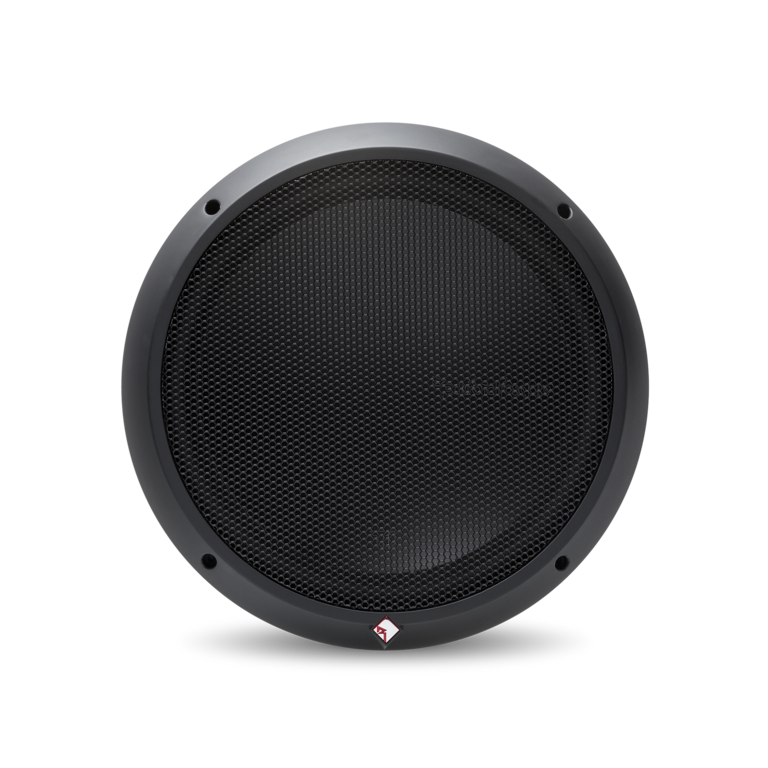

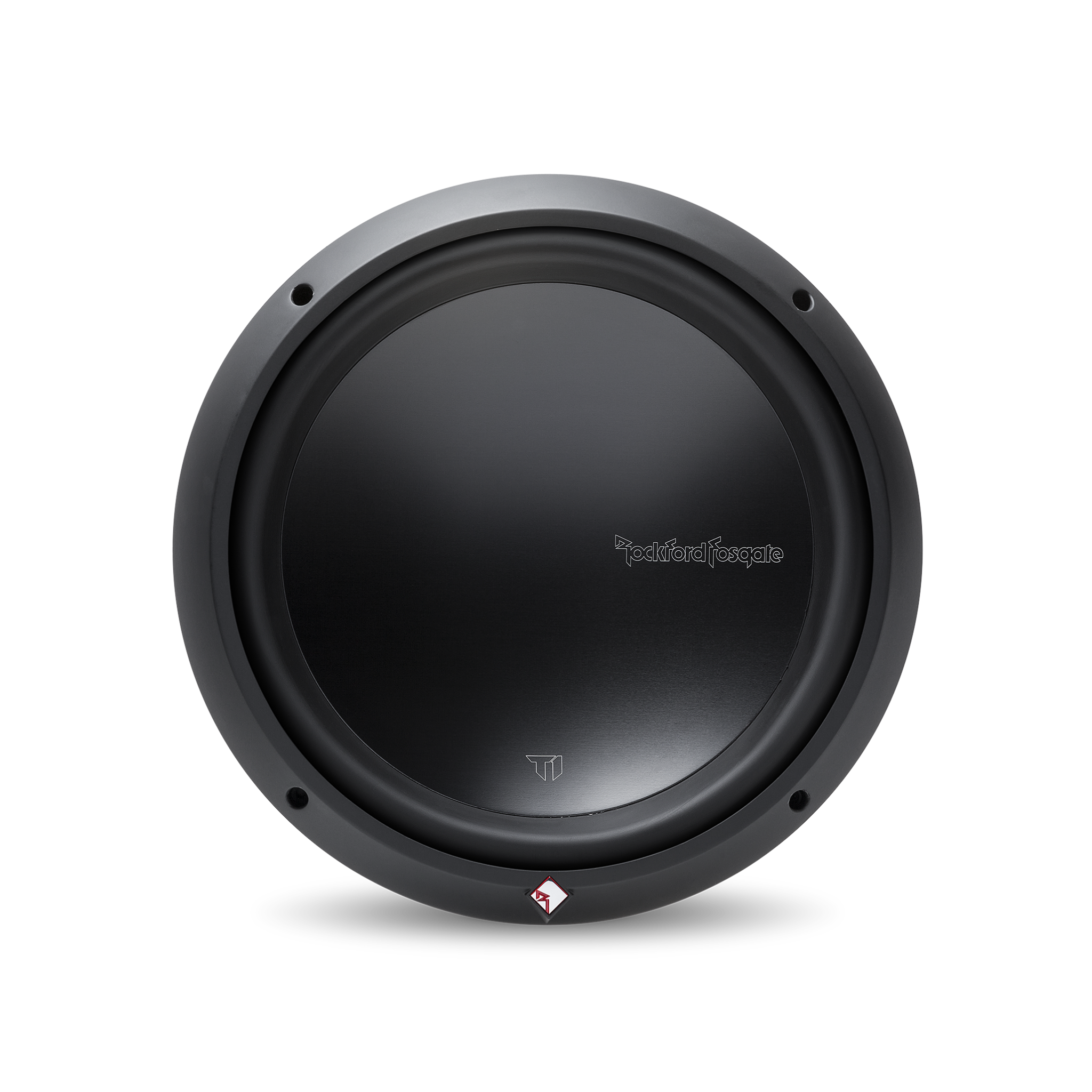

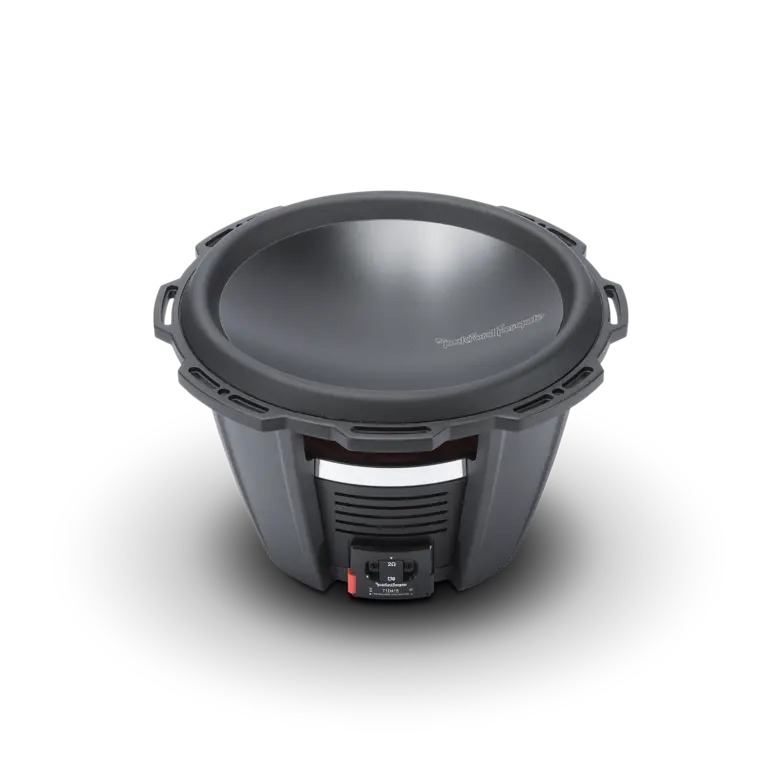

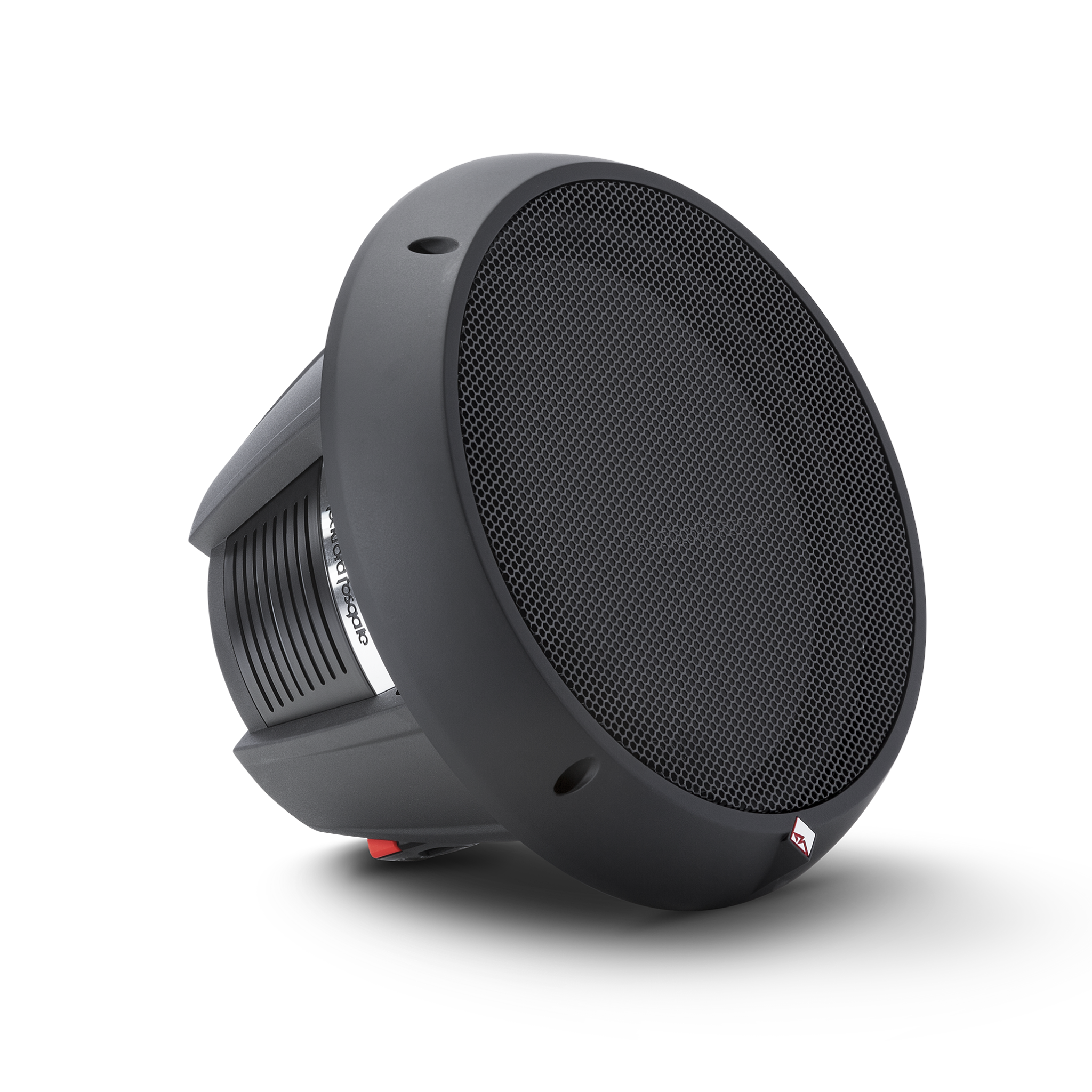

The Power Series T1D215 Dual 2-Ohm subwoofer builds on innovative new Rockford Fosgate technologies. These bad boys have patented VAST technology that increases surface cone area up to 25%. The new FlexFit basket not only looks the part but it provides extreme flexibility for extreme installations. Clean, high tech and ready to set off car alarms, the T1D215 is here!
Size
15"
Mounting Depth
8.39 in. (213 mm)
Magnet Weight (oz)
229 oz. (6.49 kg)
Power Handling (Watts RMS)
1000 Watts RMS
2000 Watts Max
2000 Watts Max
Nominal Impedance
Dual 2-Ohm
Shipping Weight
53.75 Lbs. (24.4 Kg.)
Voice Coil Diameter
3.0" (75.5 mm)
Speaker Connector
Compression Terminal
SPL (dB @ 1w/1m)
87.9
Re (Ohms)
3.25
Qes
0.46
Vas (Liters)
102
Xmax (mm)
16.4
Fs (Hz)
26.3
Qts
0.43
Qms
6.50
Cutout Diameter
13.9375 in. (354 mm)
Woofer Displacement
0.191 cu. ft. (5.4 Liters)
Le (mH)
1.6
Sd (cm2)
845
CEA-2031 Compliant
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Vented Box Volume (Vb)
2.66 cu. ft. (75.3 Liters)
Sealed Box Volume (Vb)
2.25 cu. ft. (63.7 Liters)
