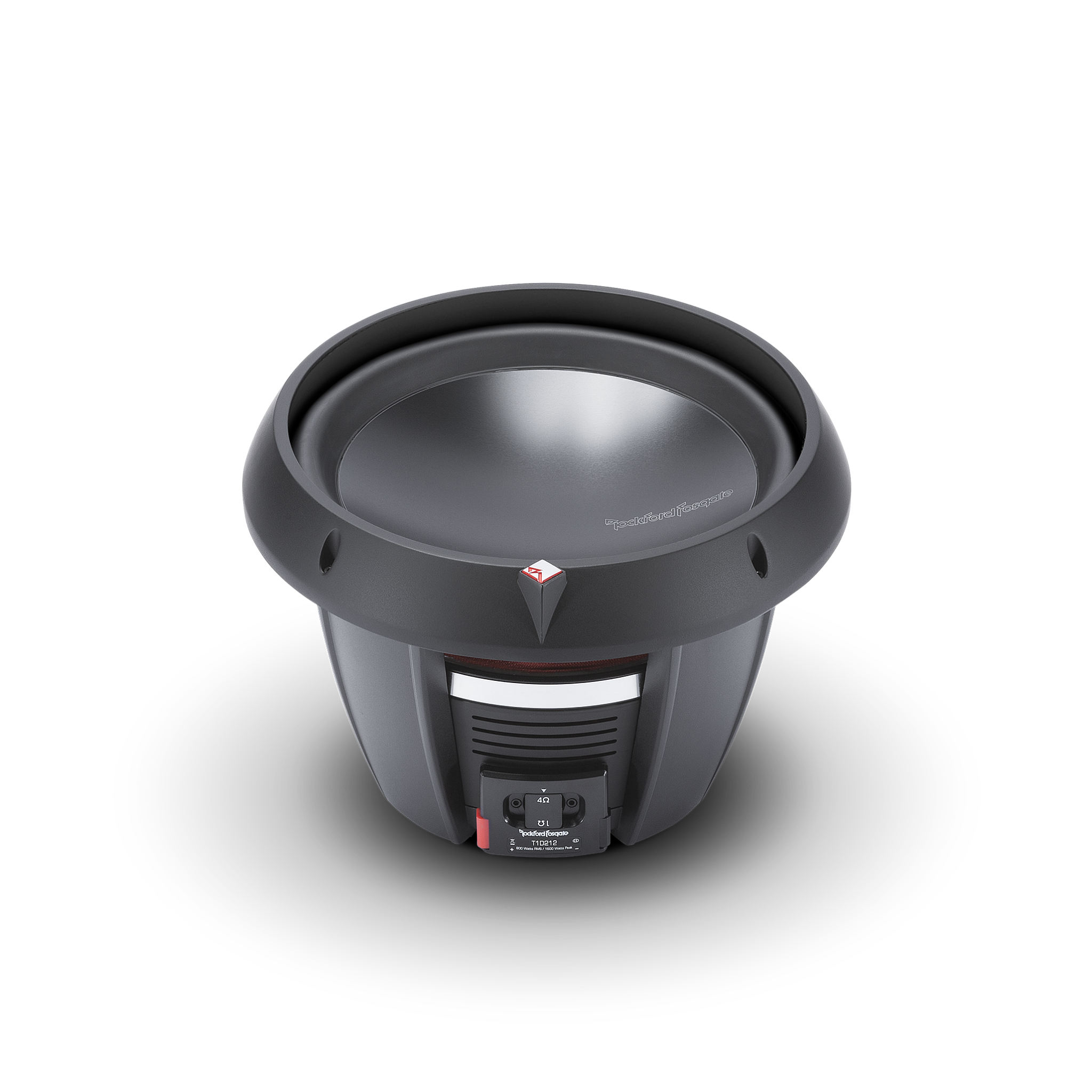

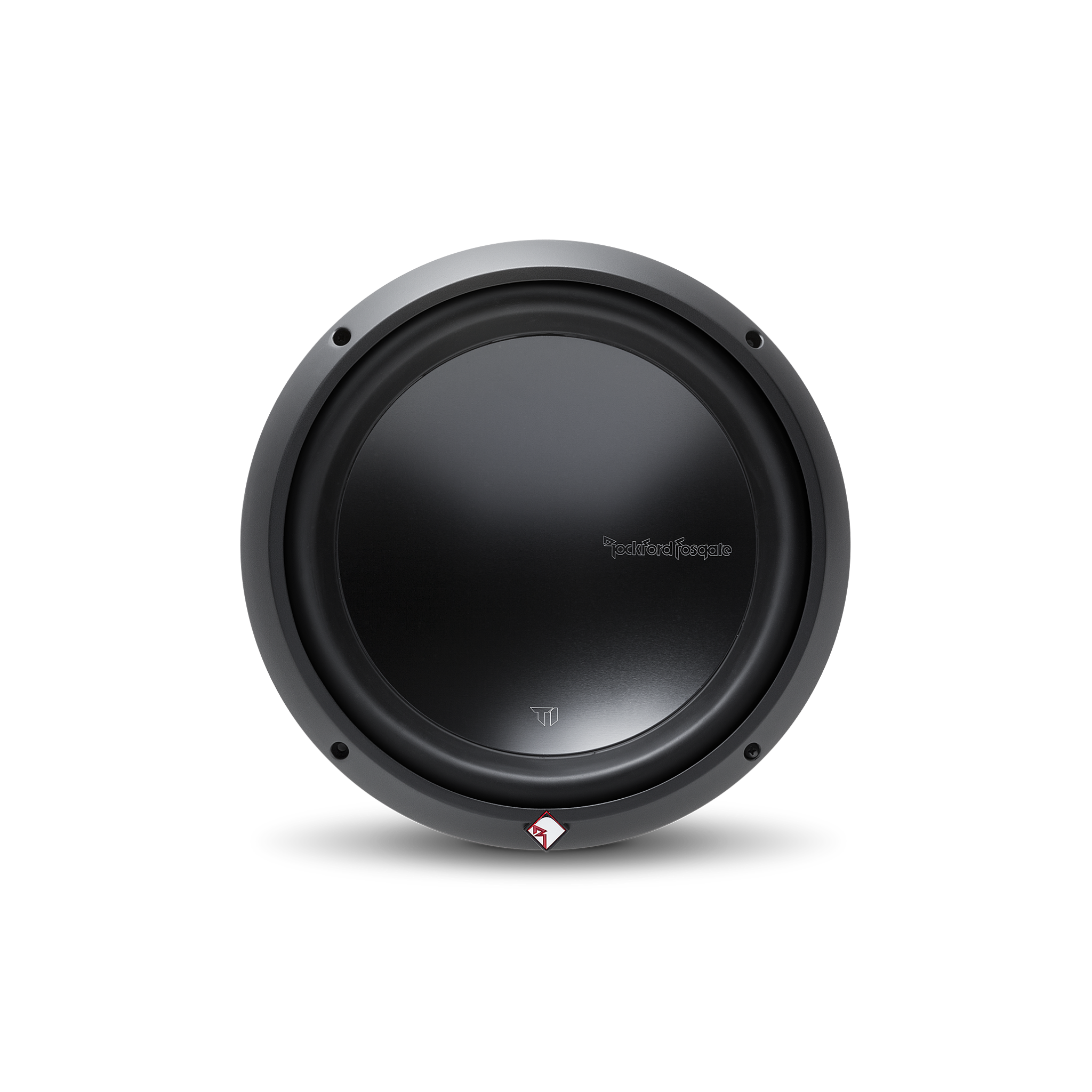

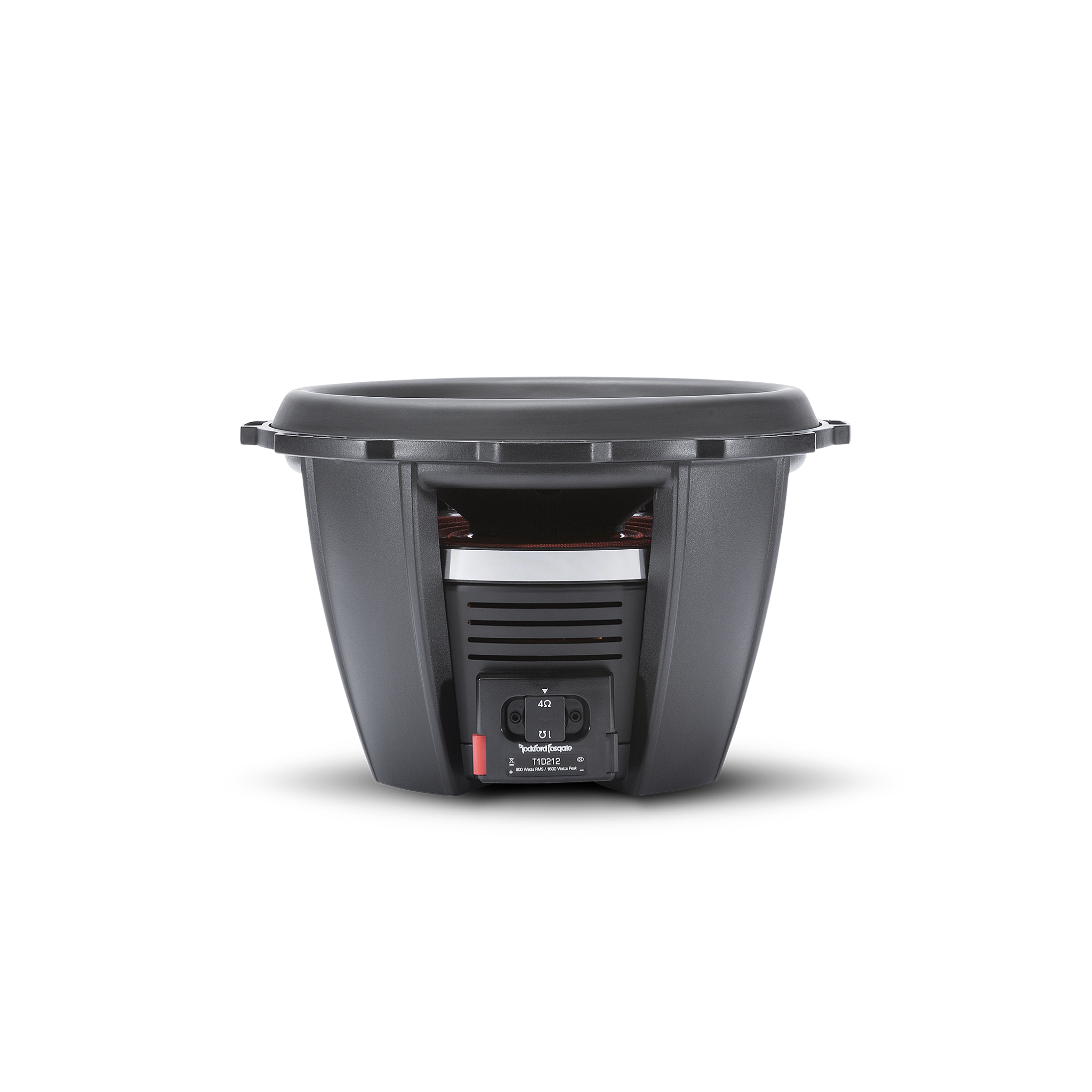

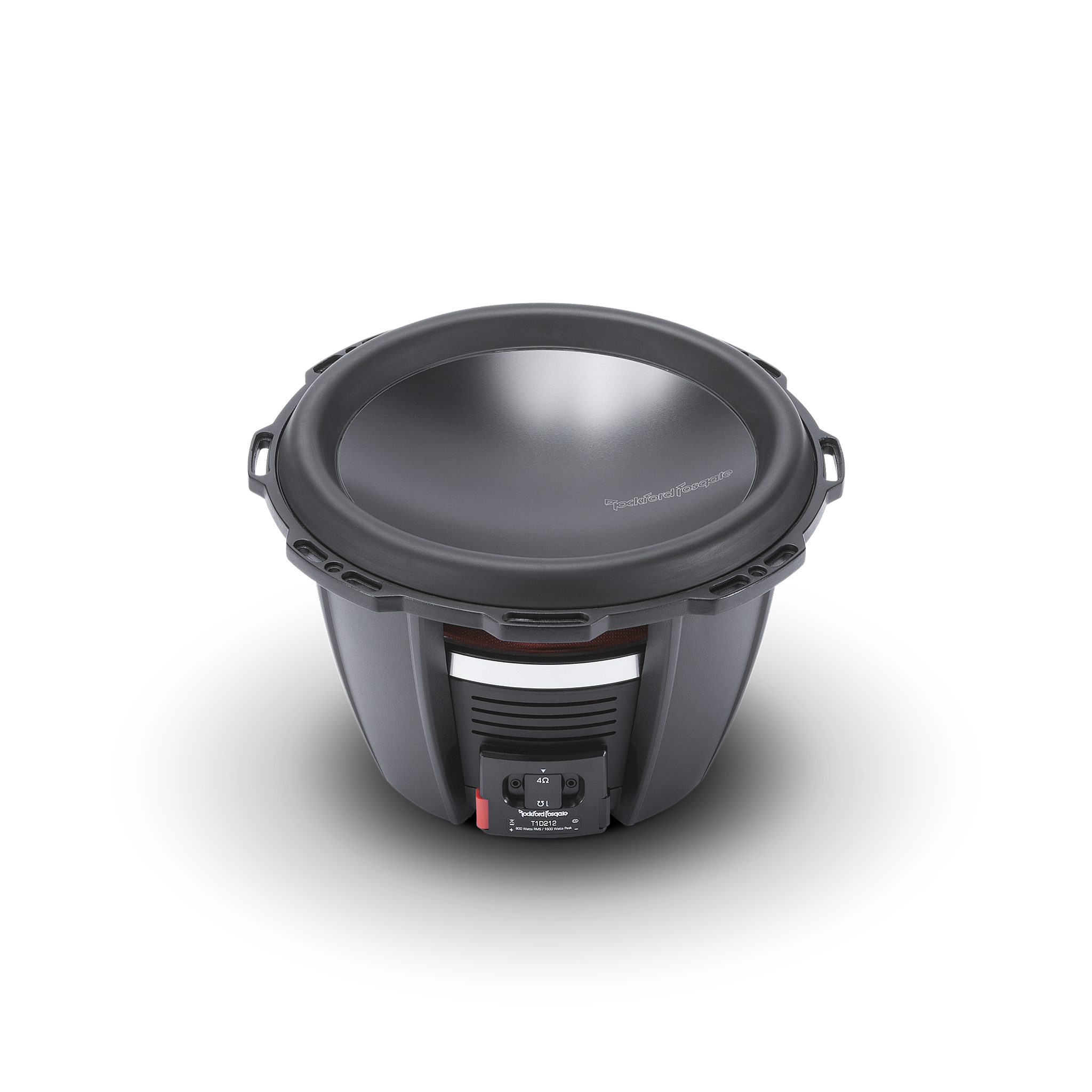

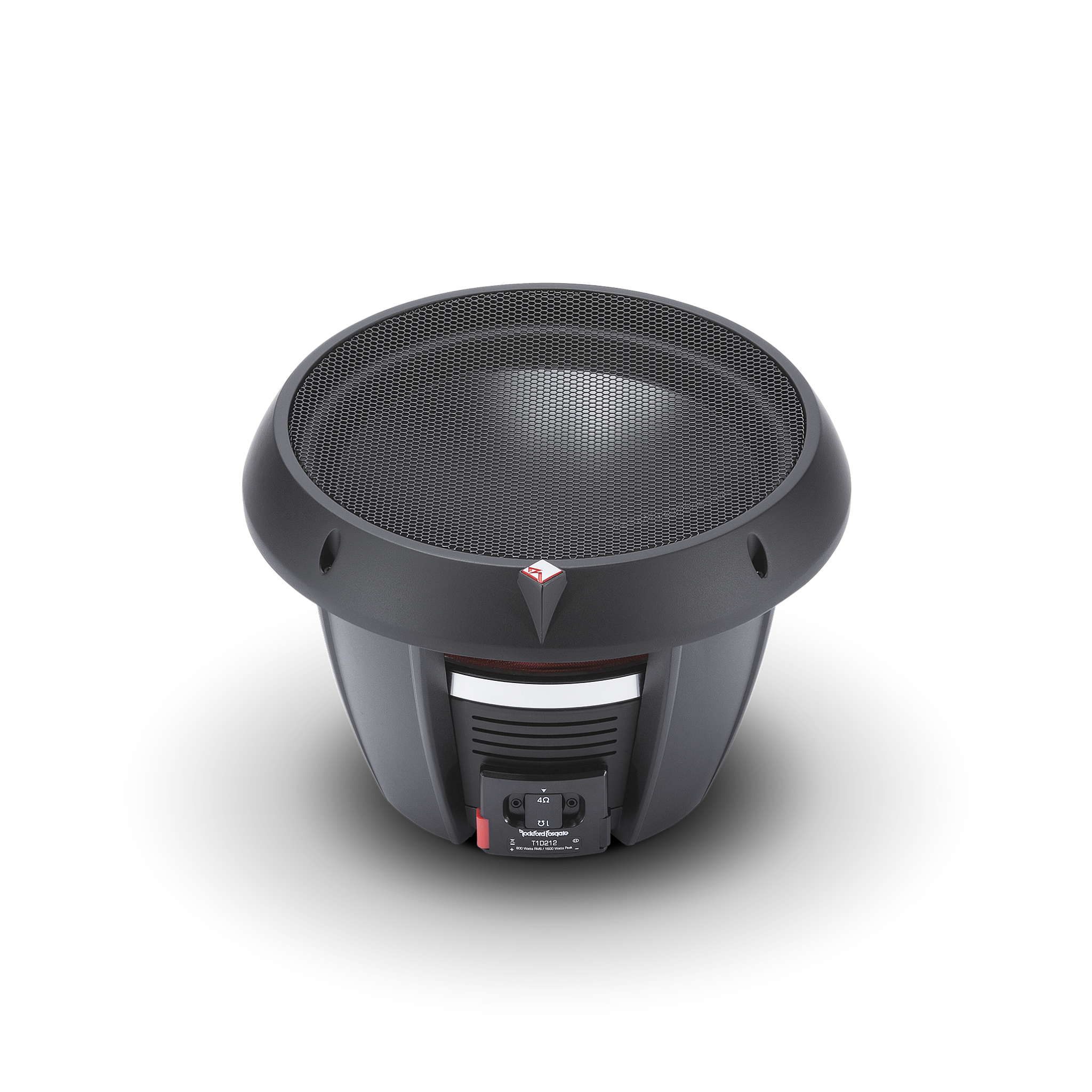

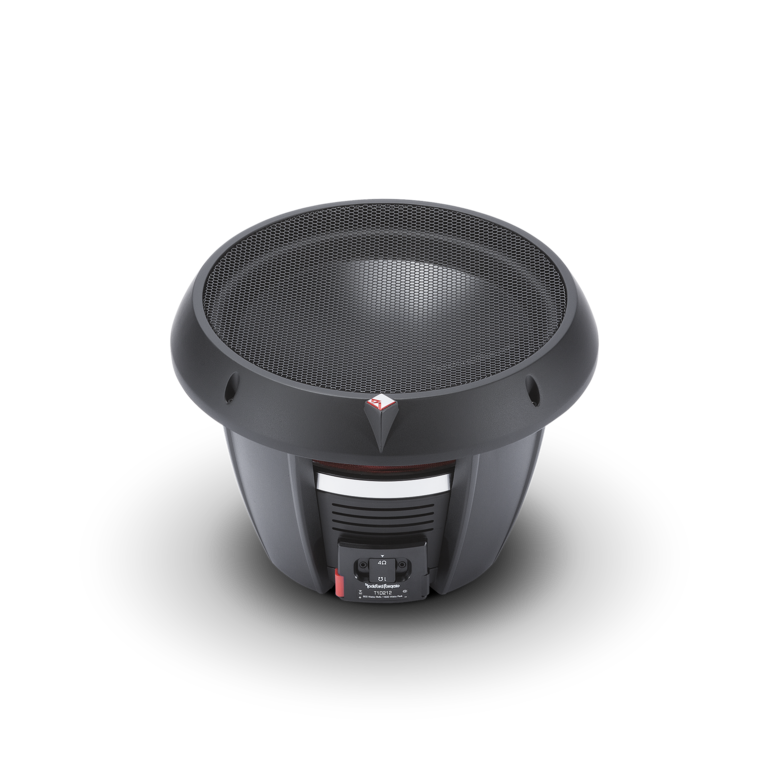

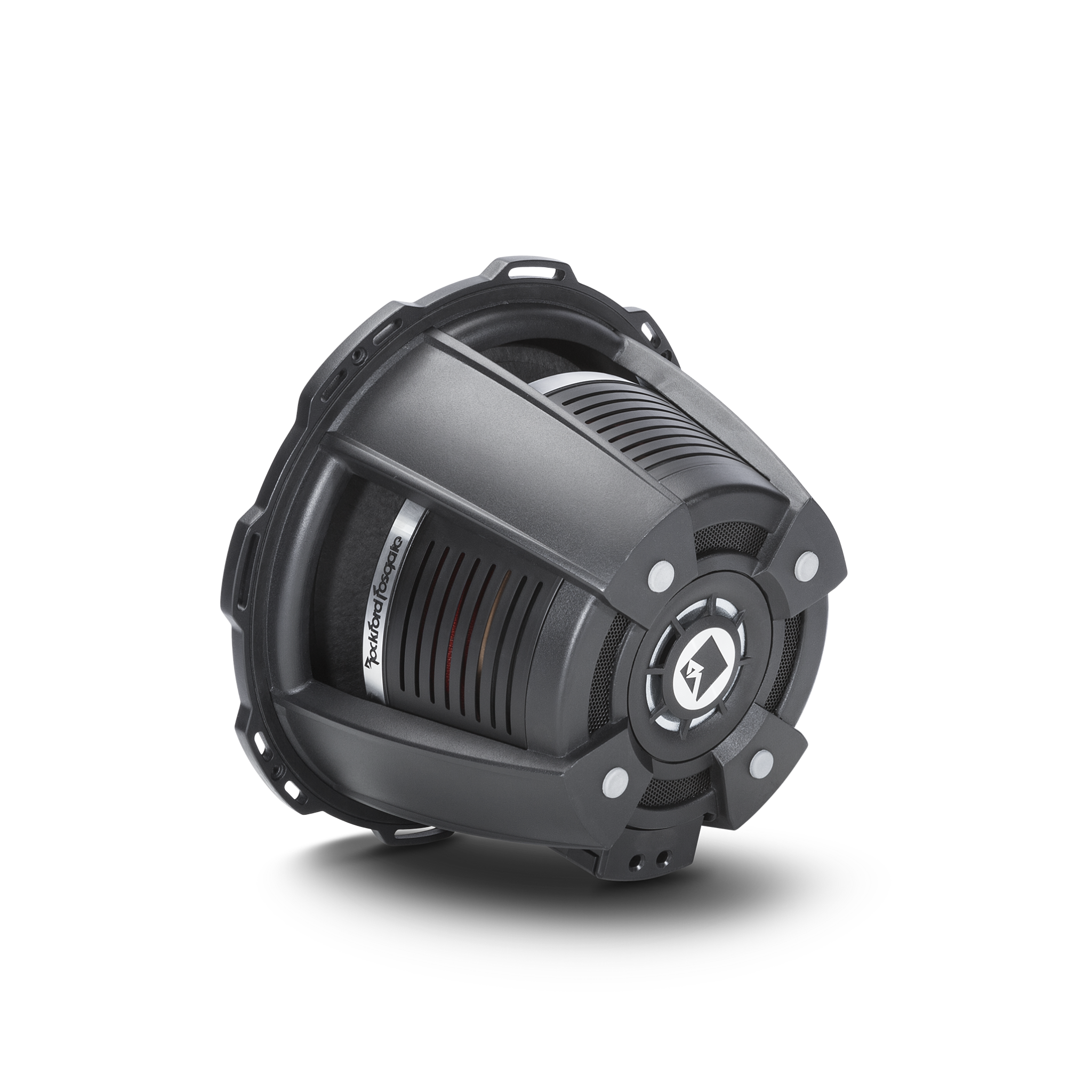

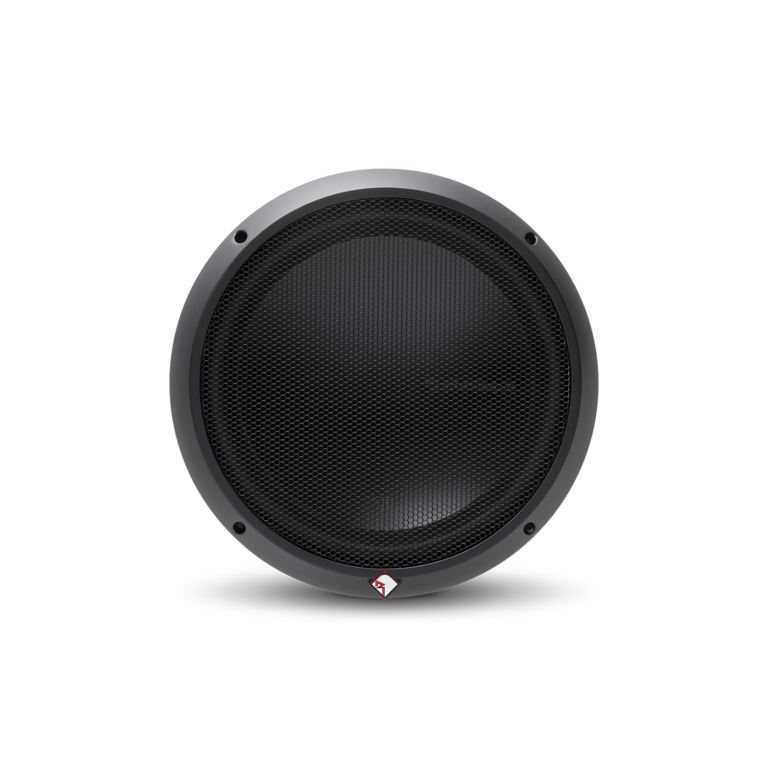

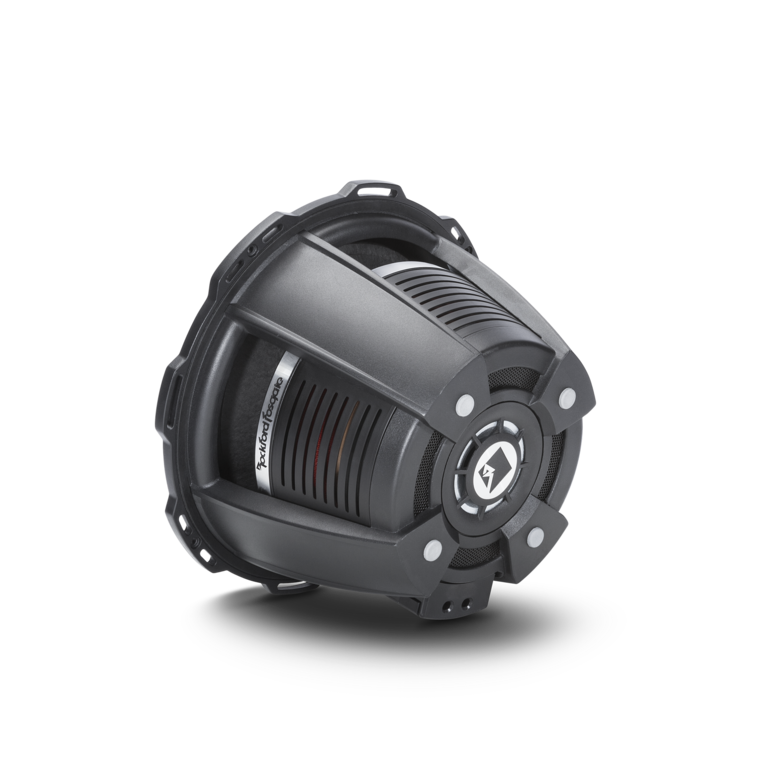

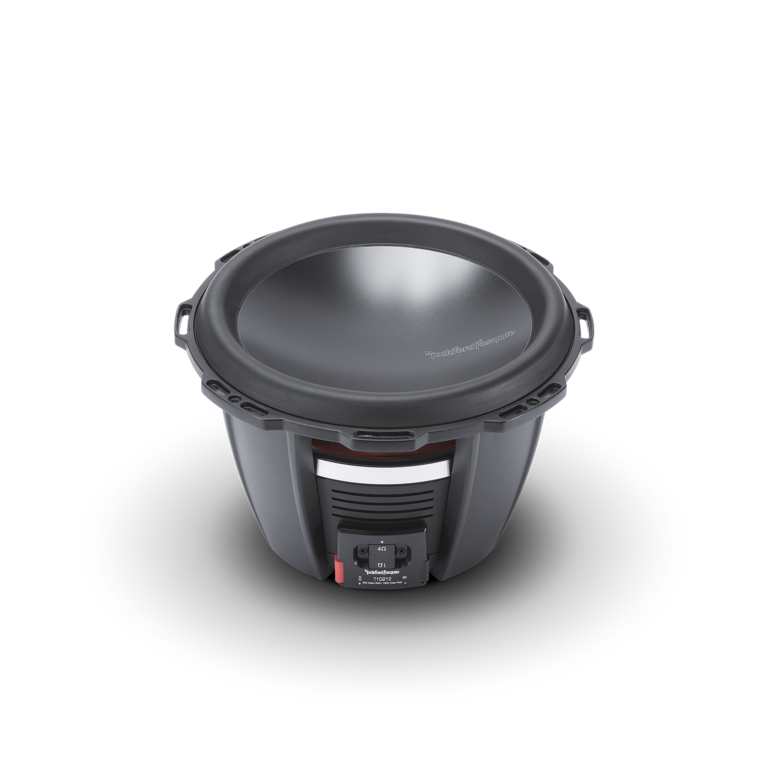

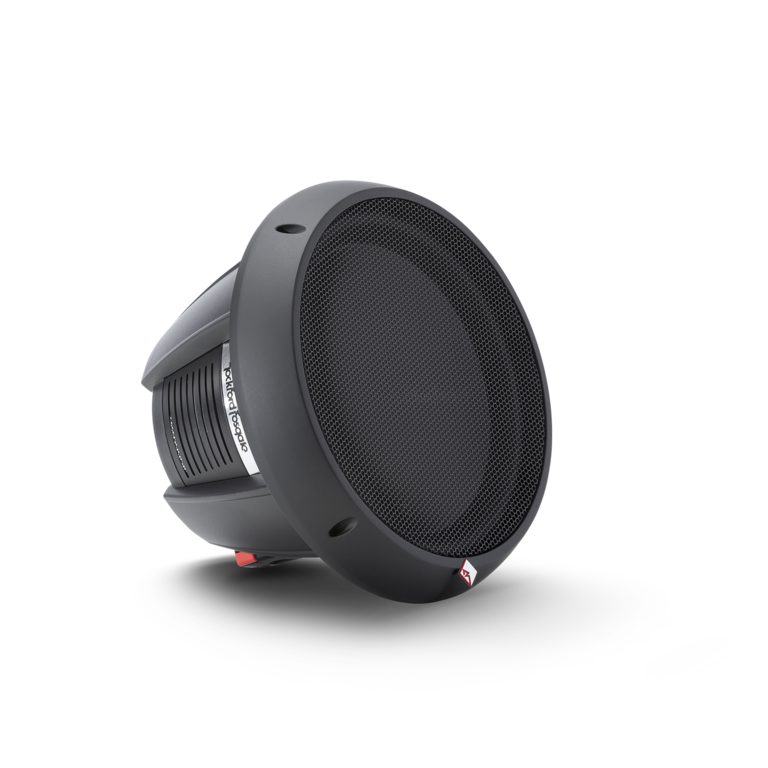

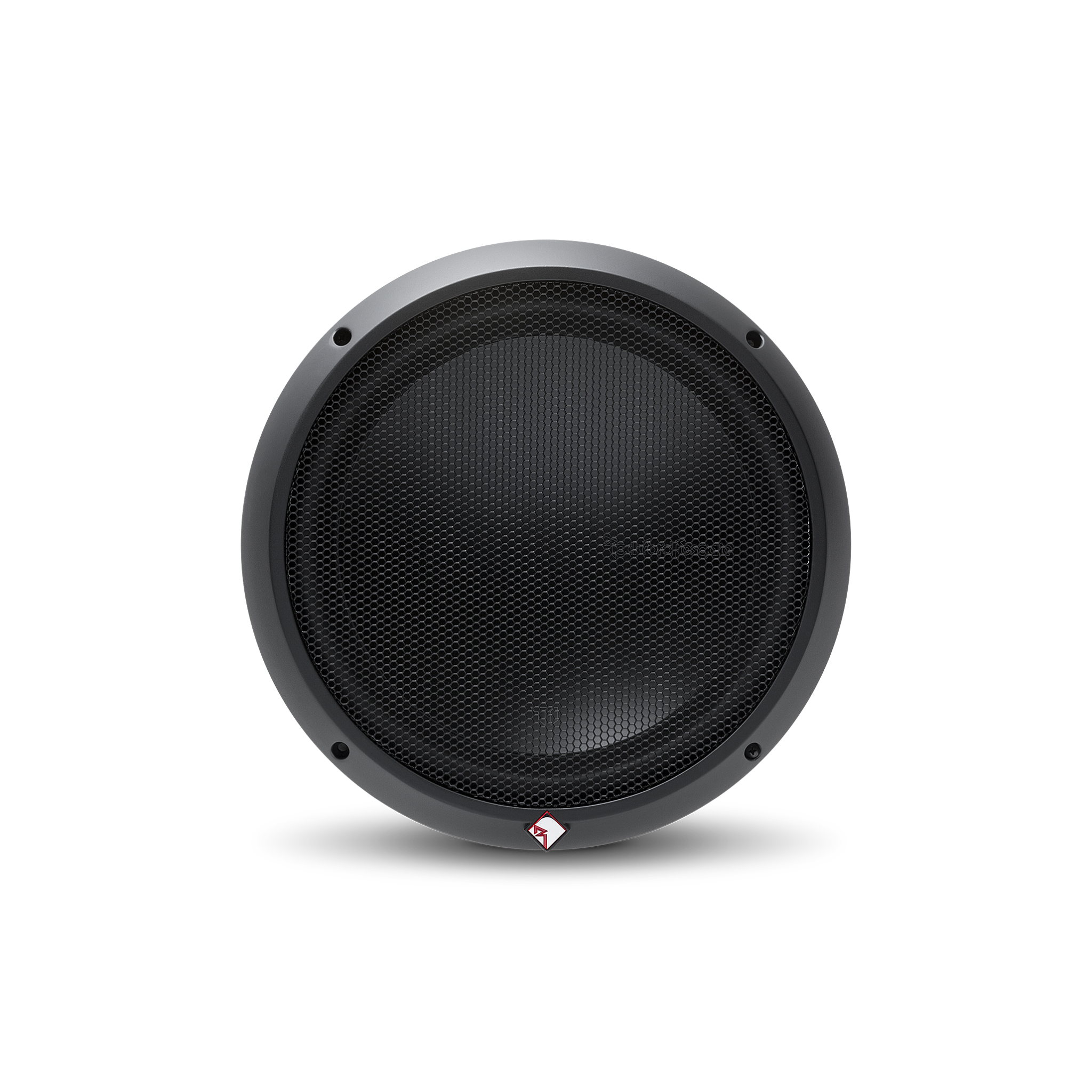

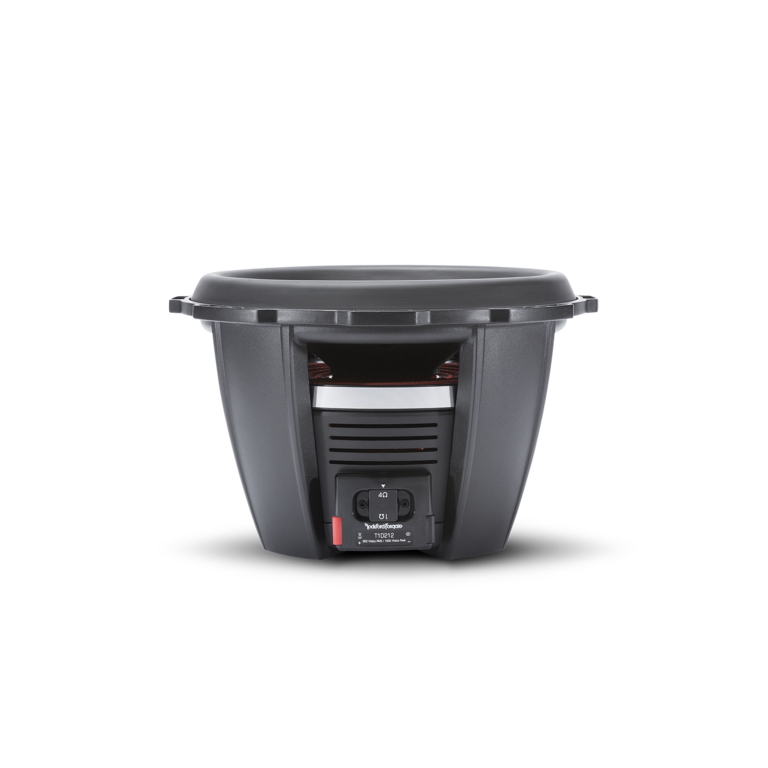

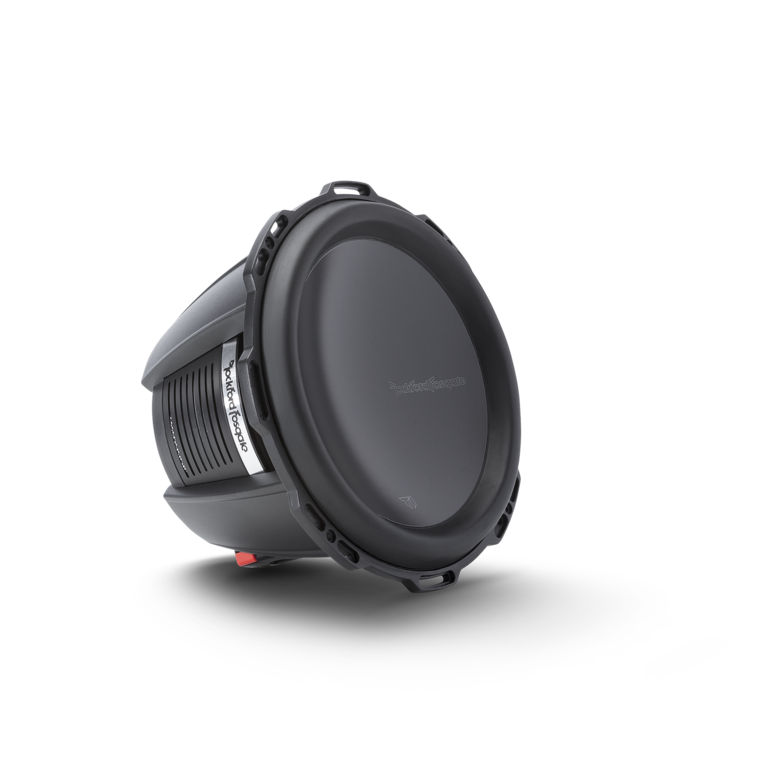

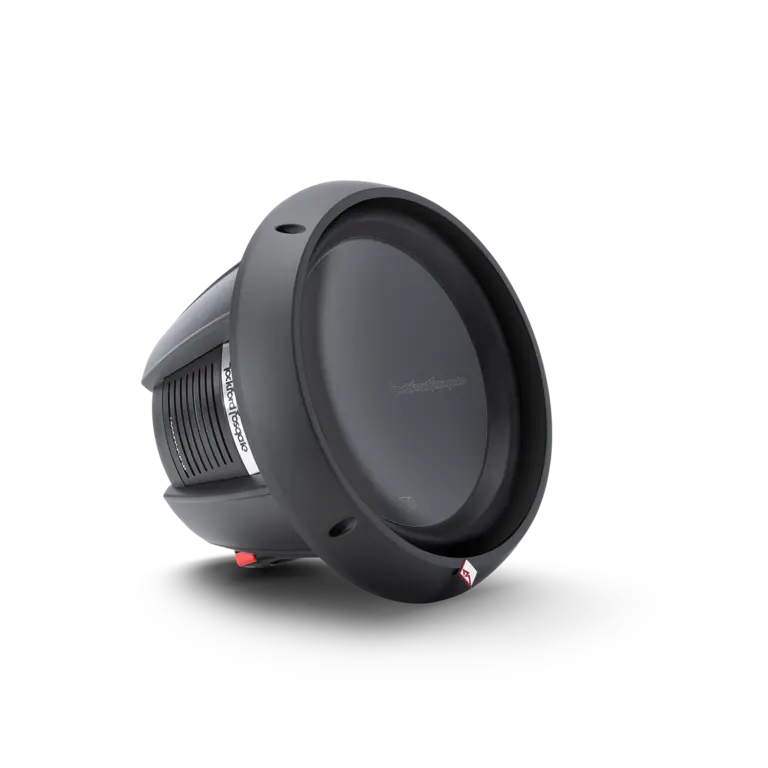

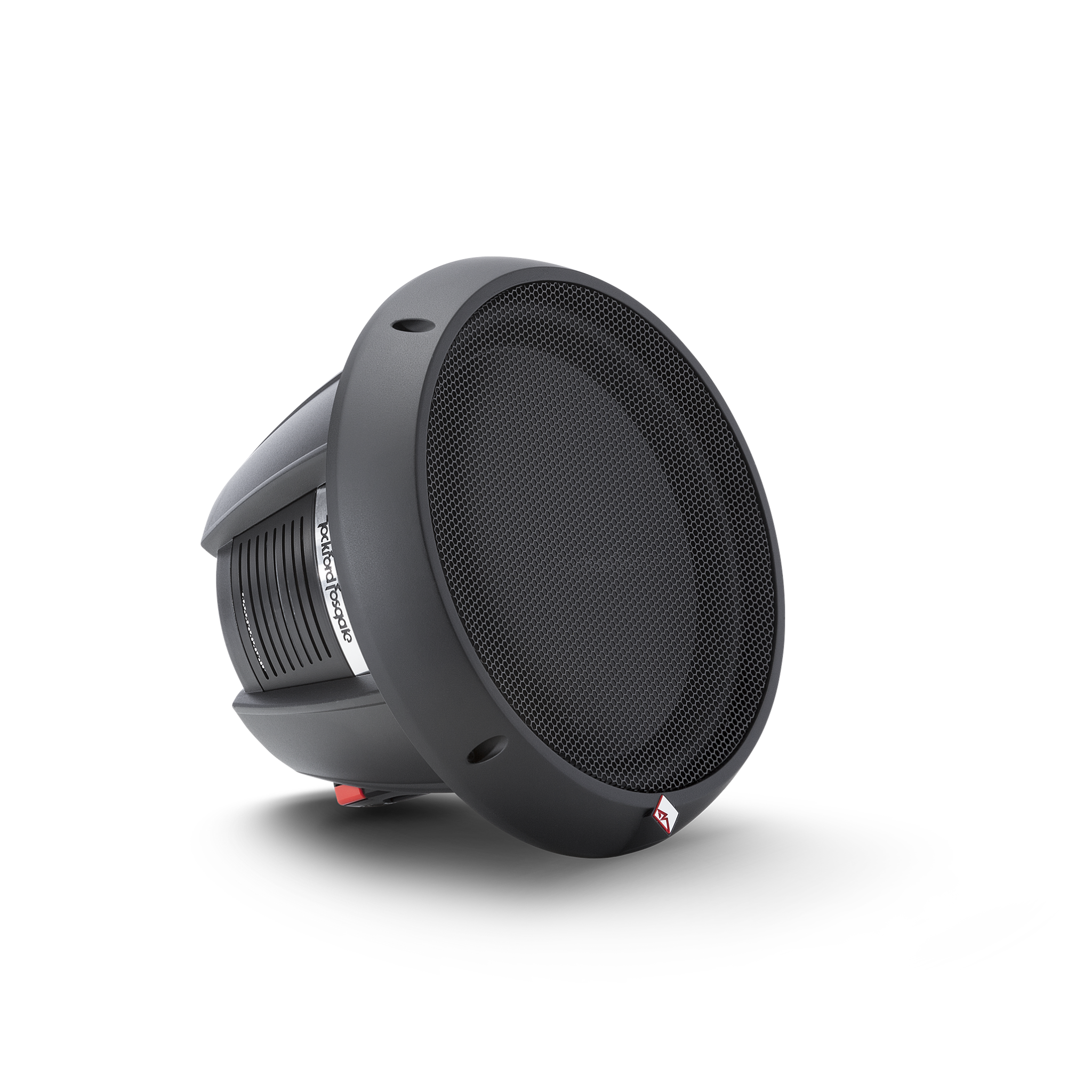

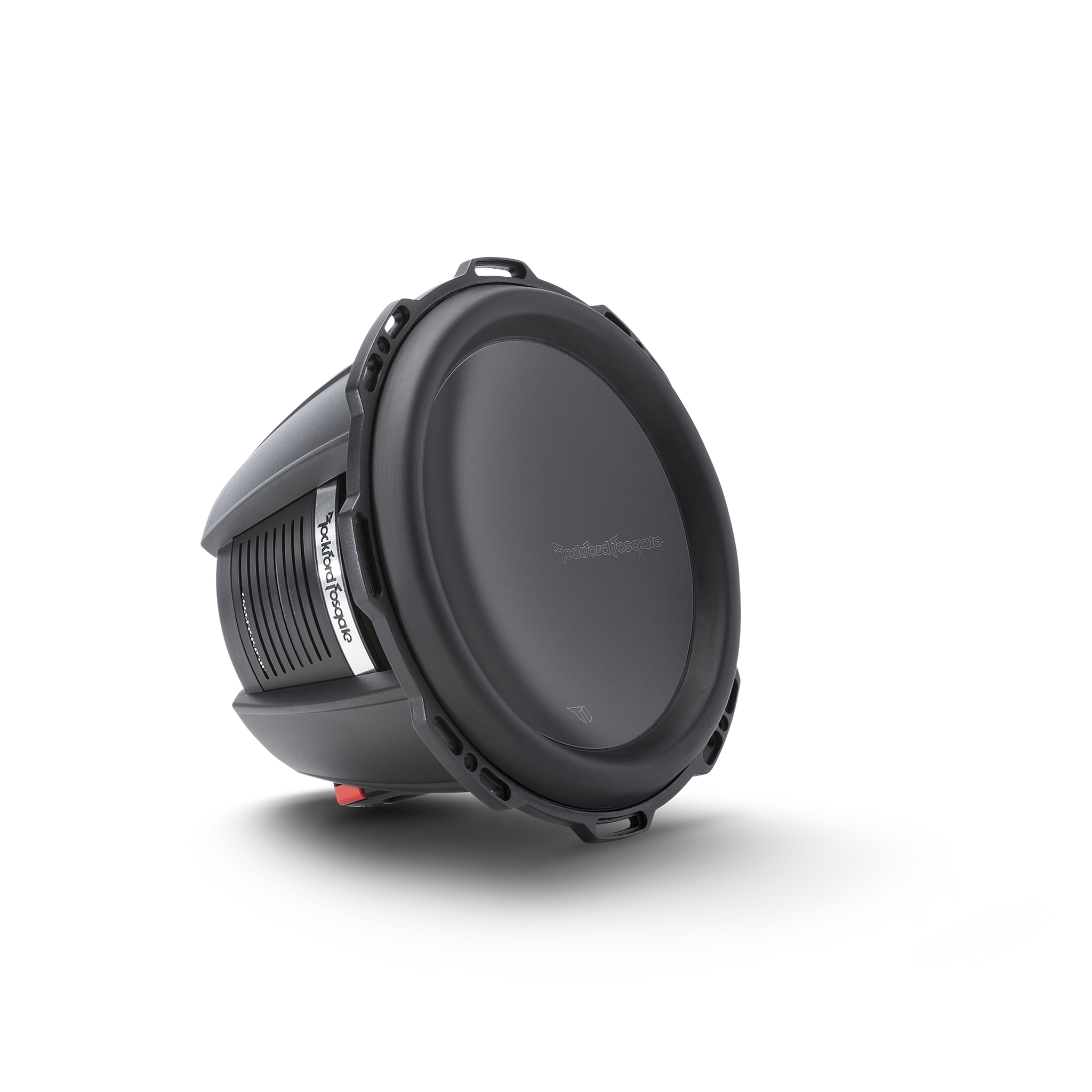

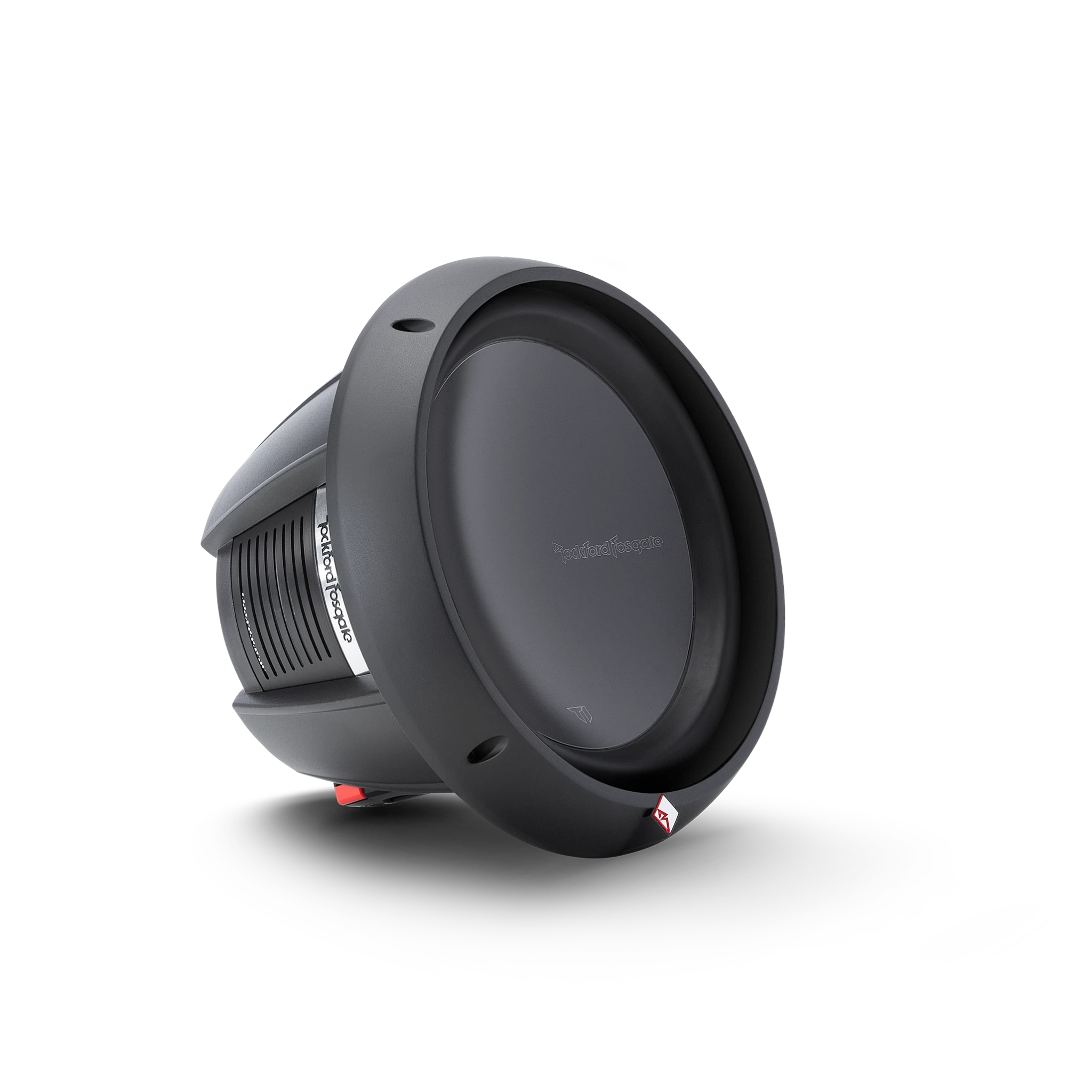

Rockford Fosgate T1D212 Dual 2ohm 12” subwoofer

FEATURES AT A GLANCE

• Symmetrical dual progressive roll tear resistant poly-cotton spiders
• Periodic-stitched fatigue resistant tinsel lead wire
• Proprietary 8 AWG insulated allmetal input spring terminal connection
• Optimized and matched magnetic and complicance geometry
• Kevlar fiber reinforced paper cone
• Anodized aluminum voice coil former / copper clad aluminum wire
• Rigid die-cast aluminum basket
• Anodized aluminum heat sinking dust cap
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Optimized pole piece and spider venting
• 1 Year Warranty

The Power Series T1D212 Dual 2-Ohm subwoofer builds on innovative new Rockford Fosgate technologies. These bad boys have patented VAST technology that increases surface cone area up to 25% so the T1D212 performs like a much larger woofer over the previous model. The new FlexFit basket not only looks the part but it provides extreme flexibility for extreme installations. Clean, high tech and ready to set off car alarms, the T1D212 is here!

Size

12"

Nominal Impedance

Dual 2-Ohm

Mounting Depth

6.75 in. (171 mm)

Shipping Weight

33.3 Lbs. (15.10 Kg.)

Voice Coil Diameter

3" (75.5 mm)

Speaker Connector

Compression Terminal

SPL (dB @ 1w/1m)

85

CEA-2031 Compliant

Le (mH)

1.8

Qts

0.52

Qms

4.50

Vas (Liters)

55.8
