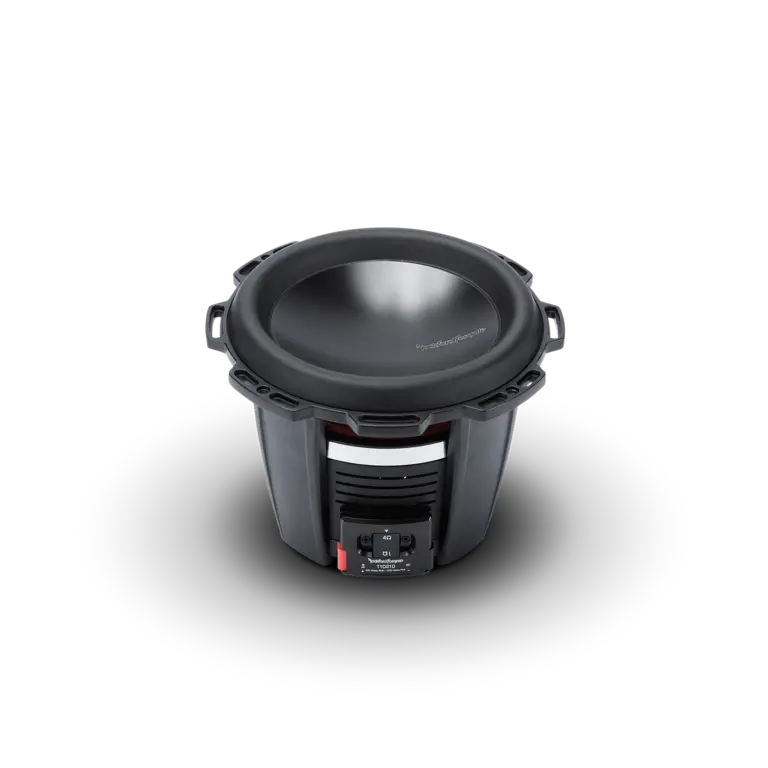

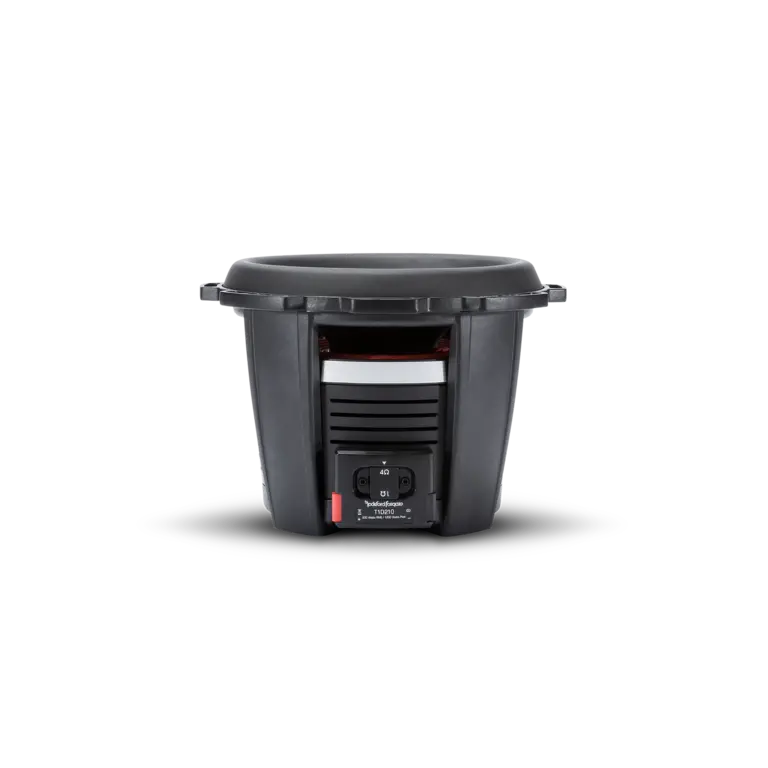

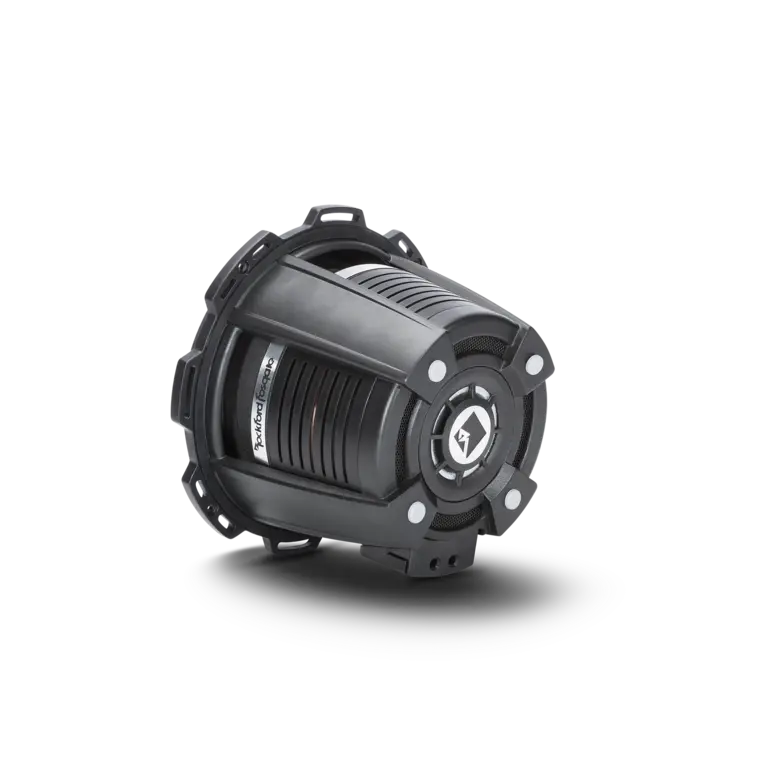

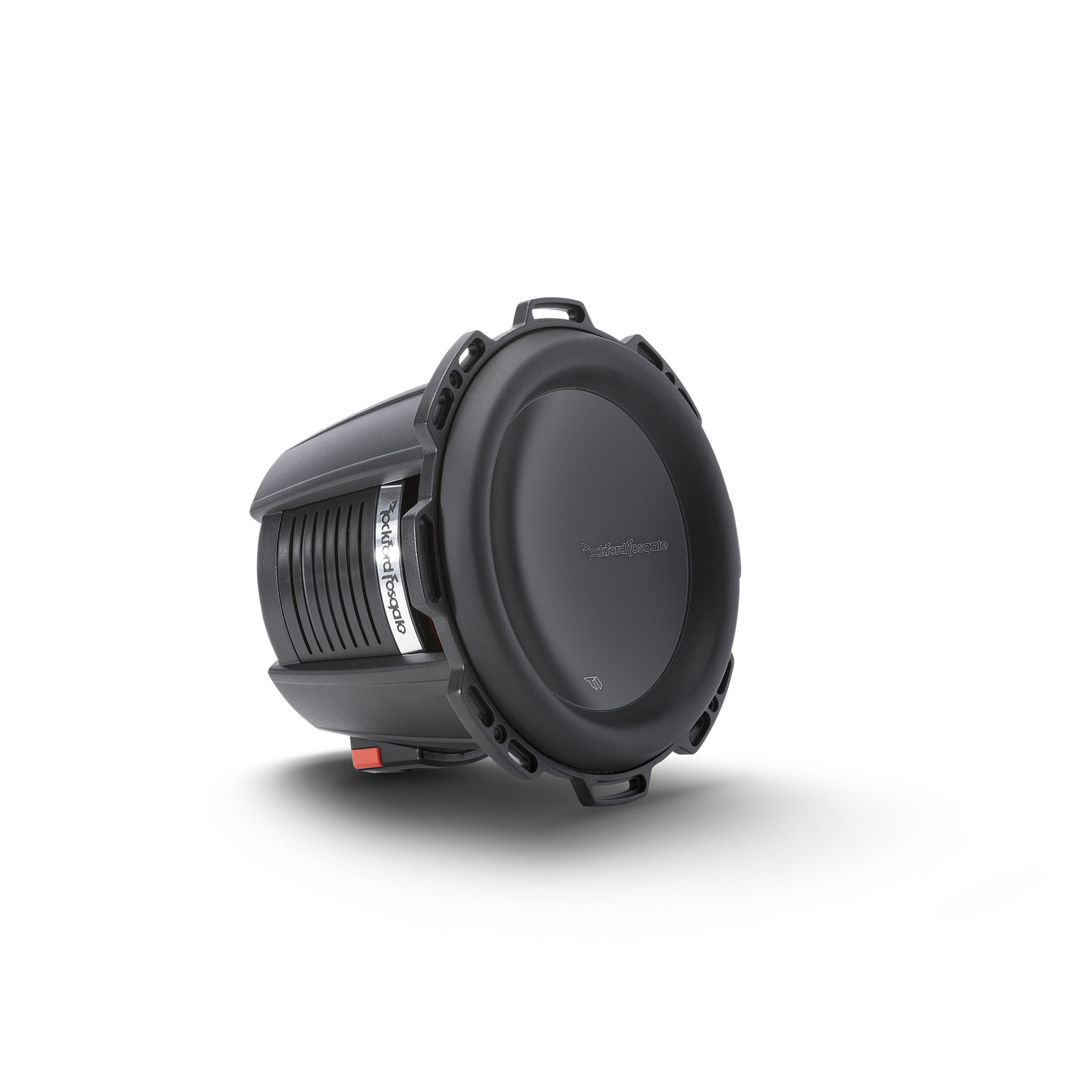

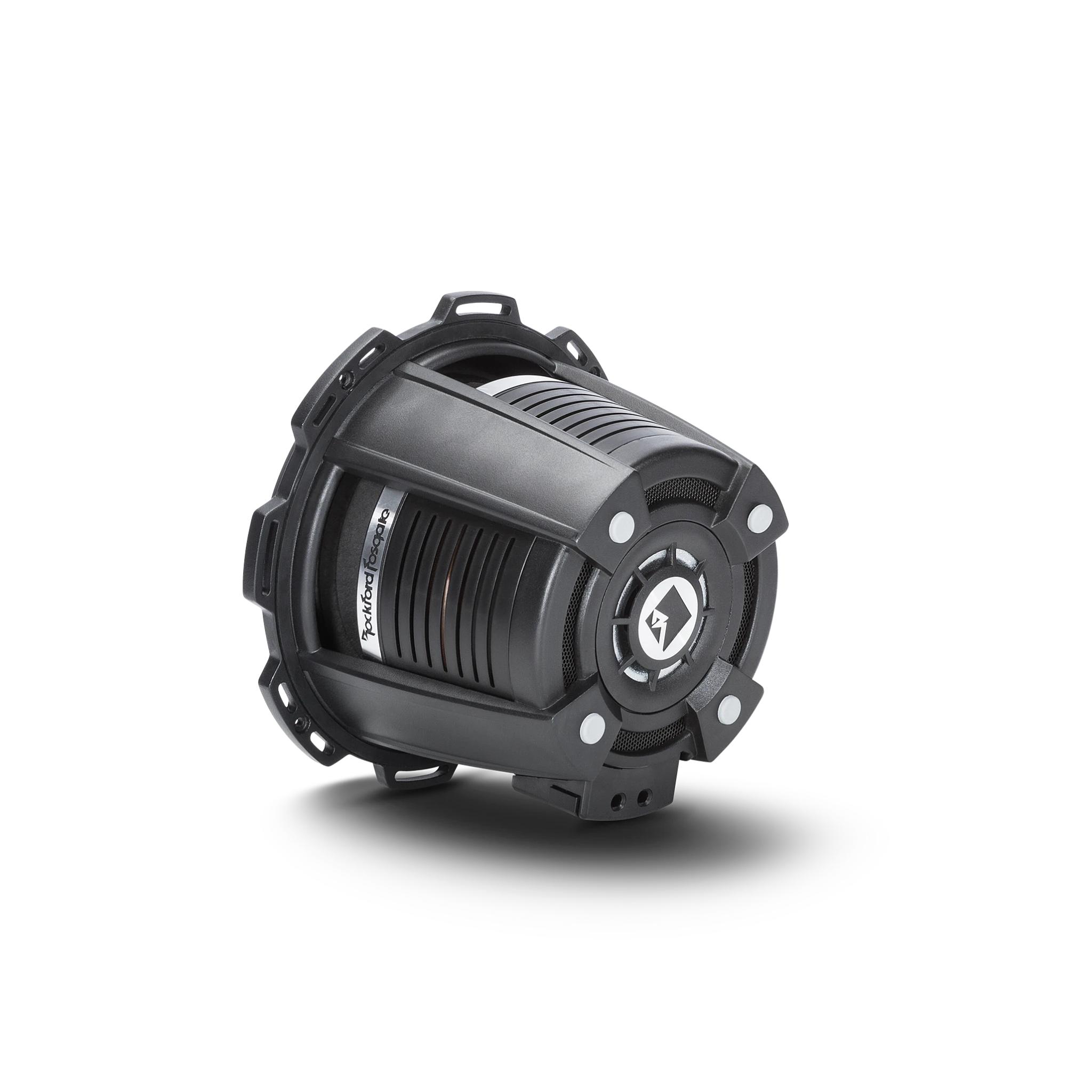

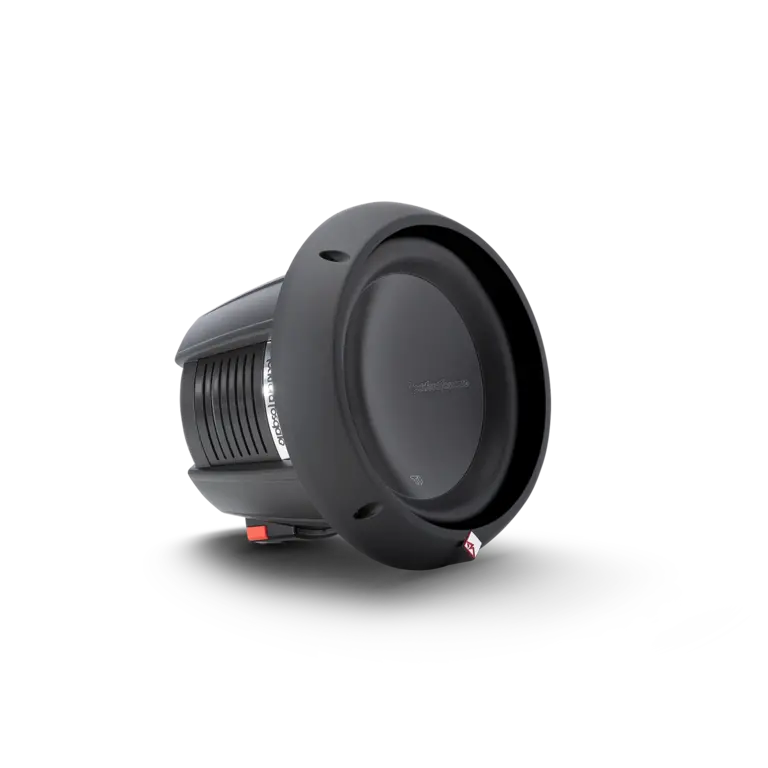

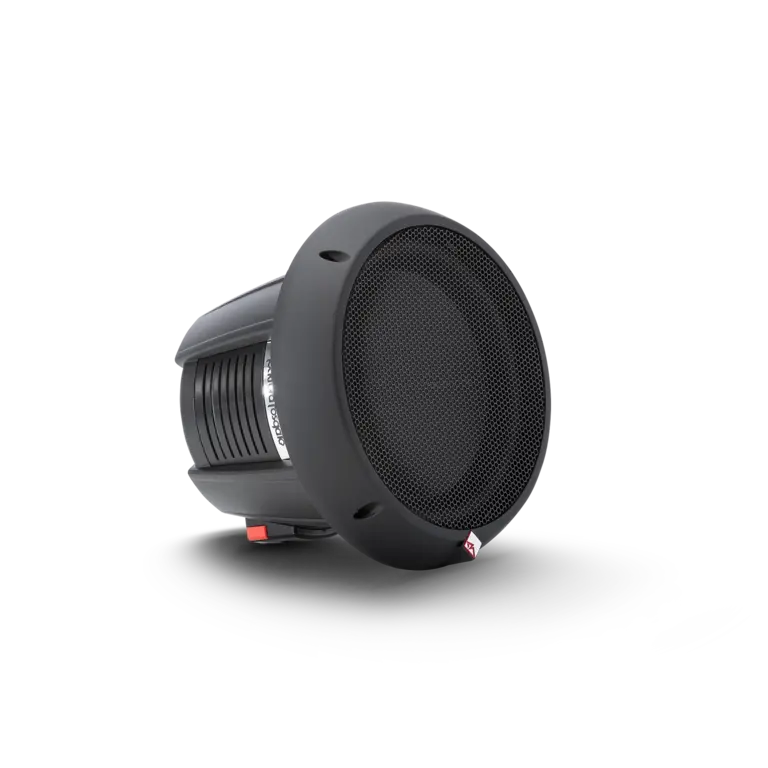

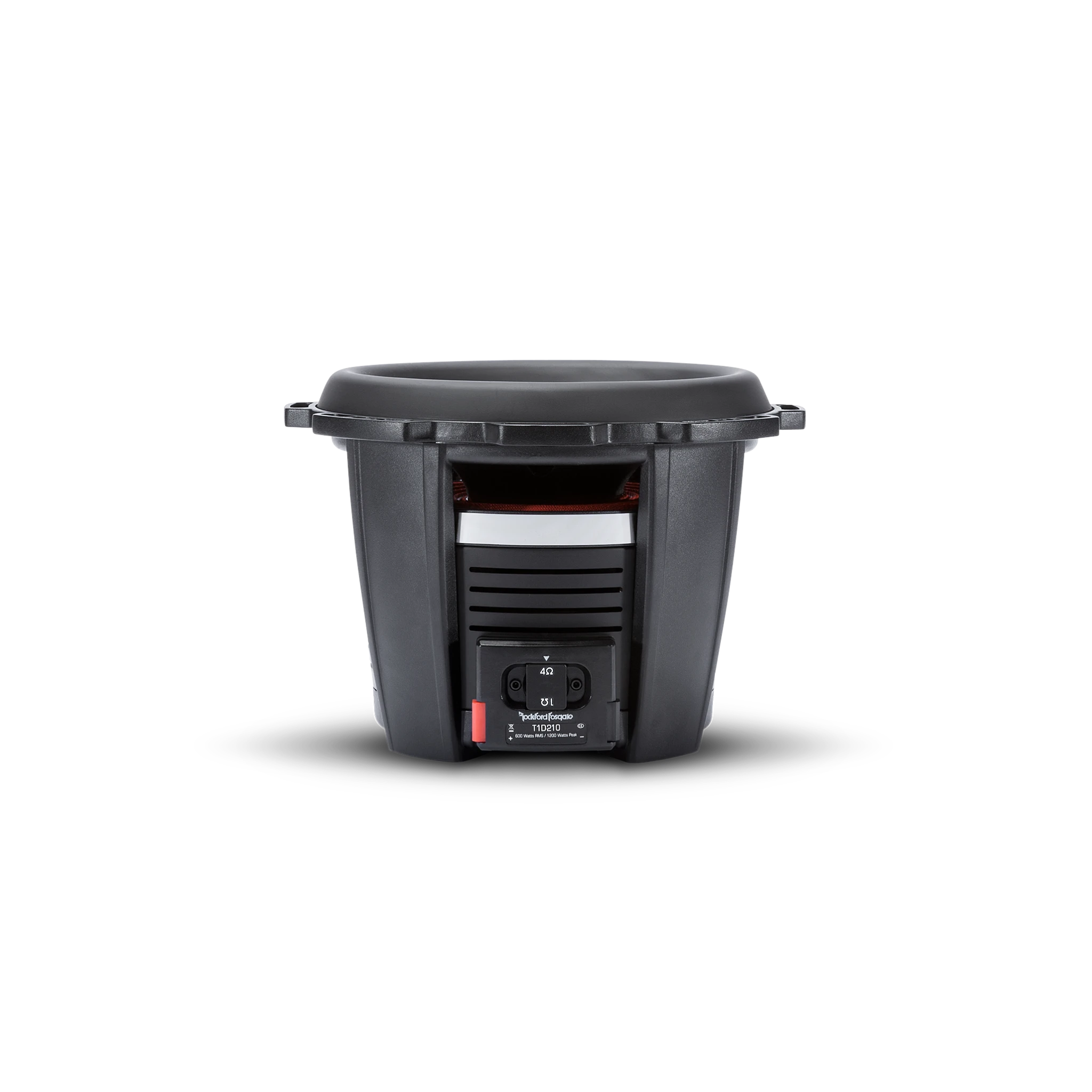

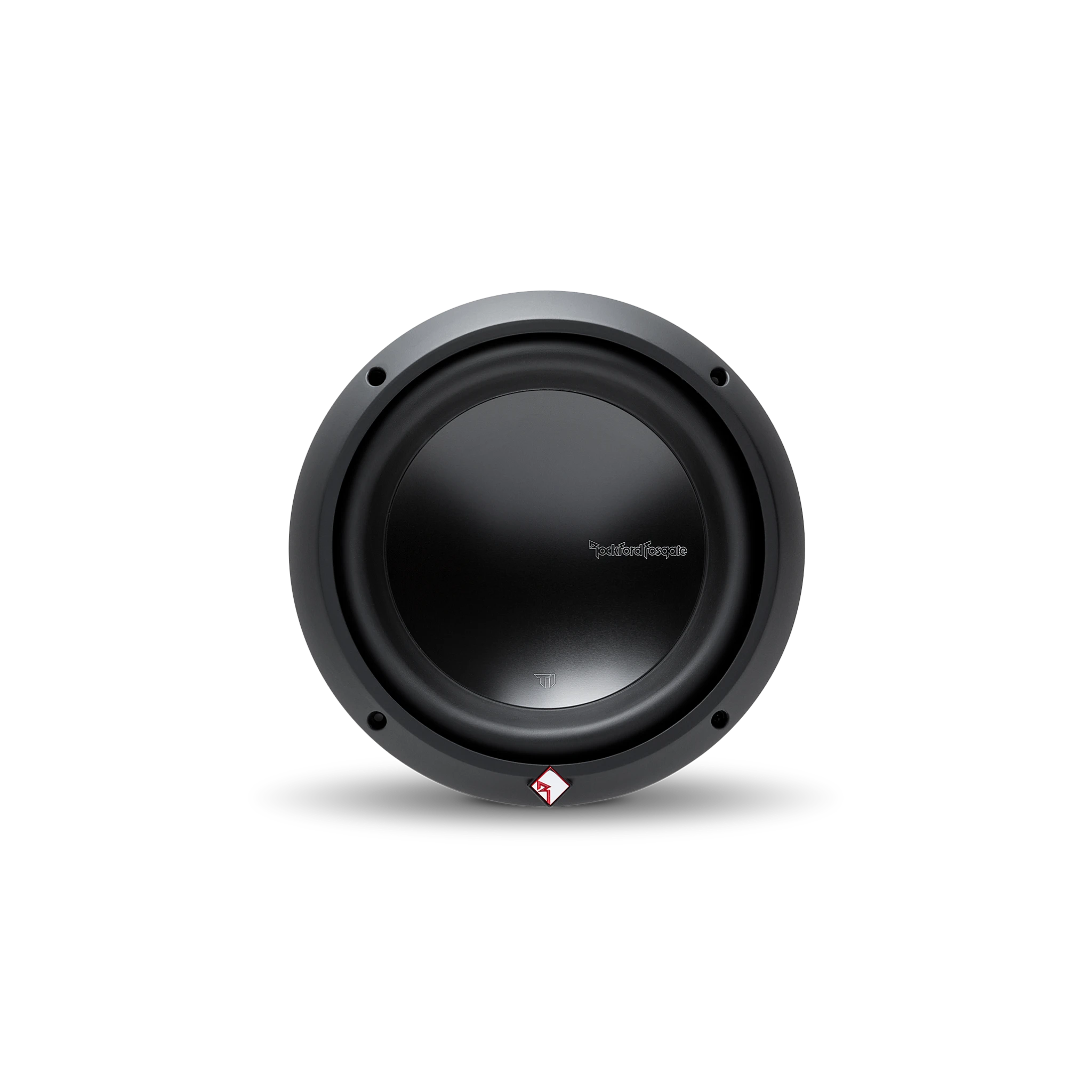

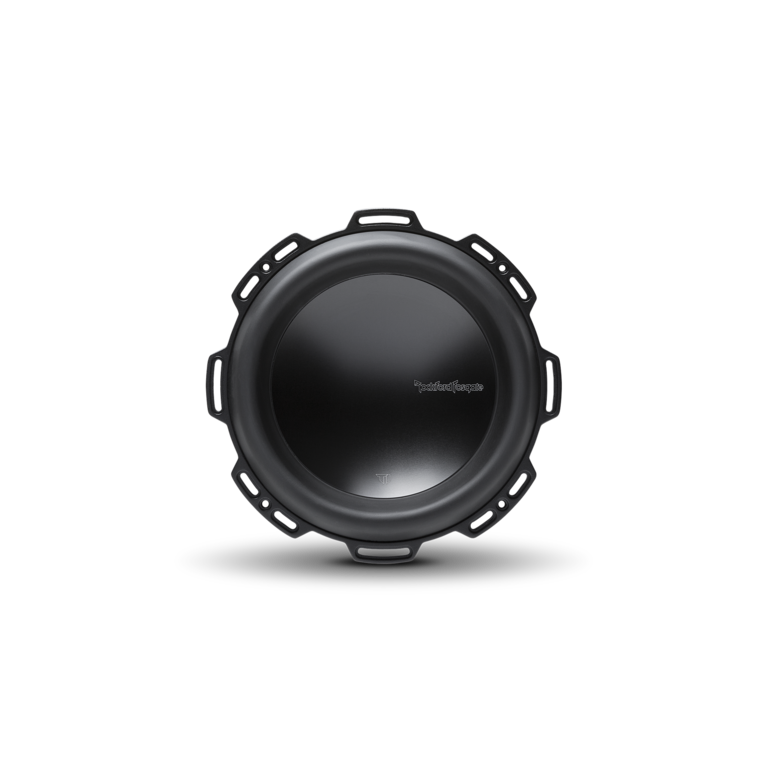

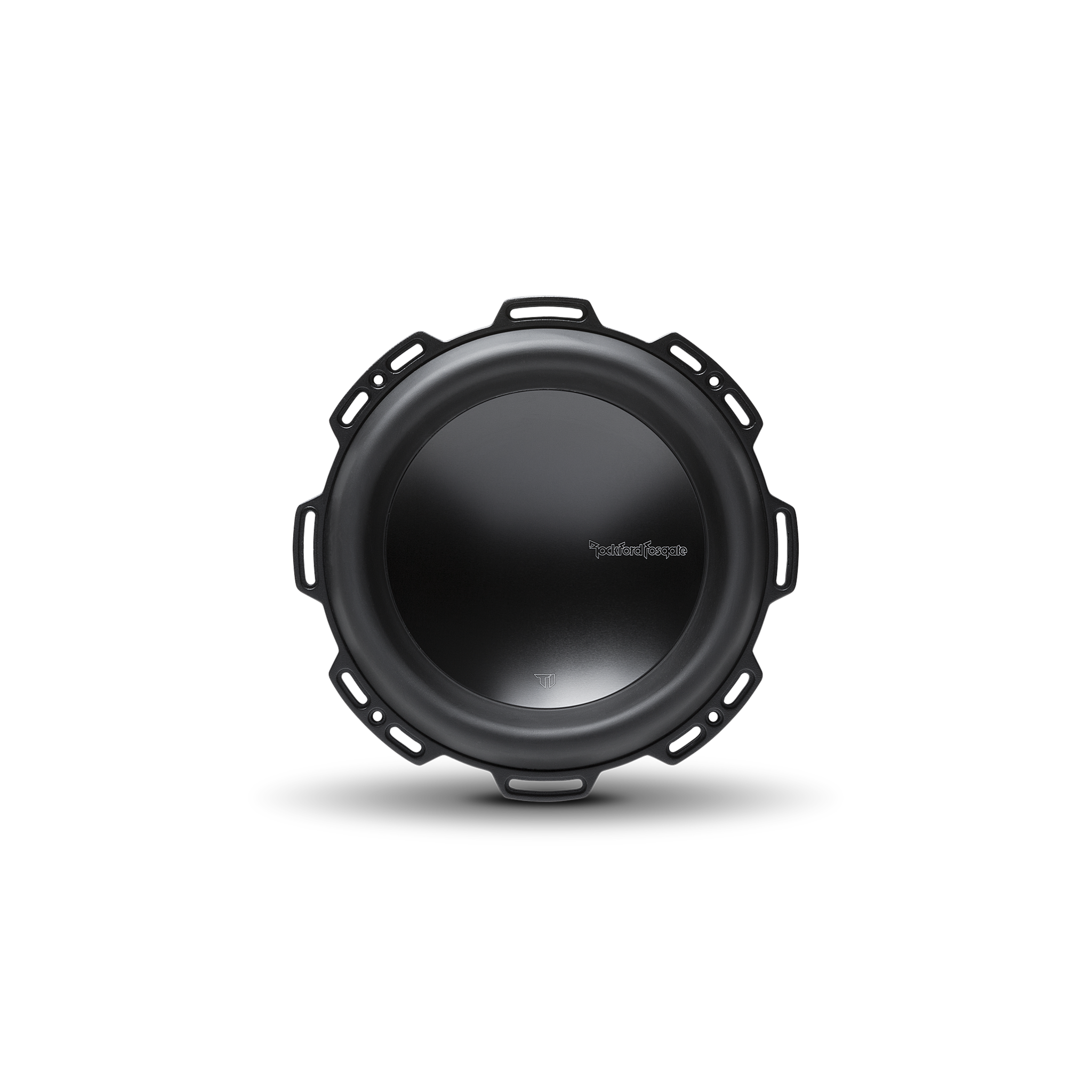

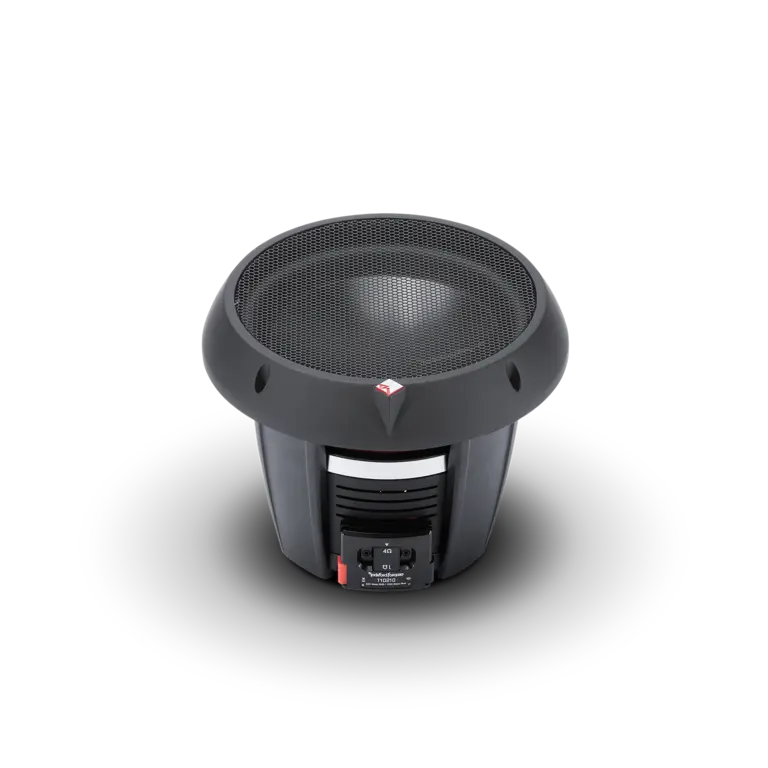

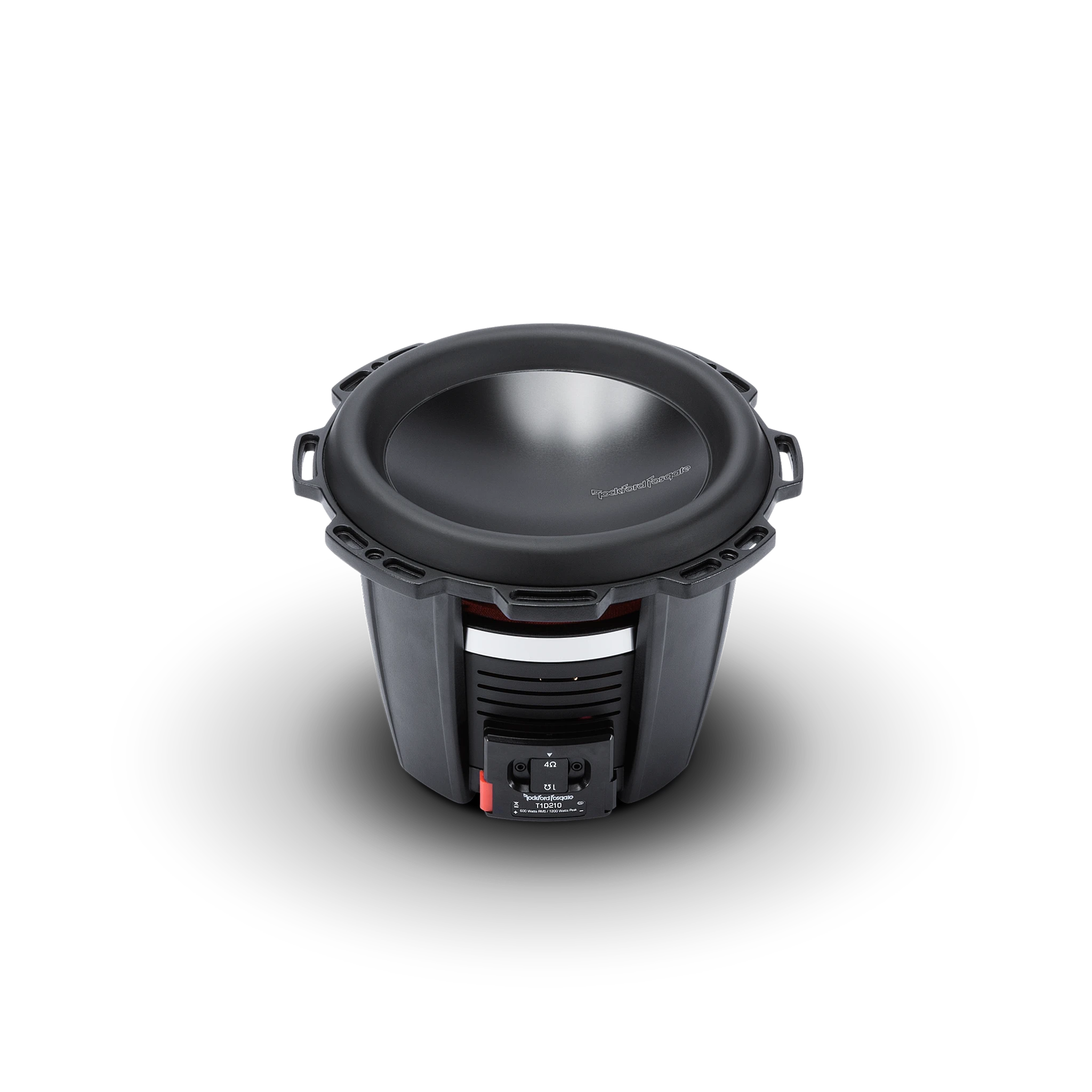

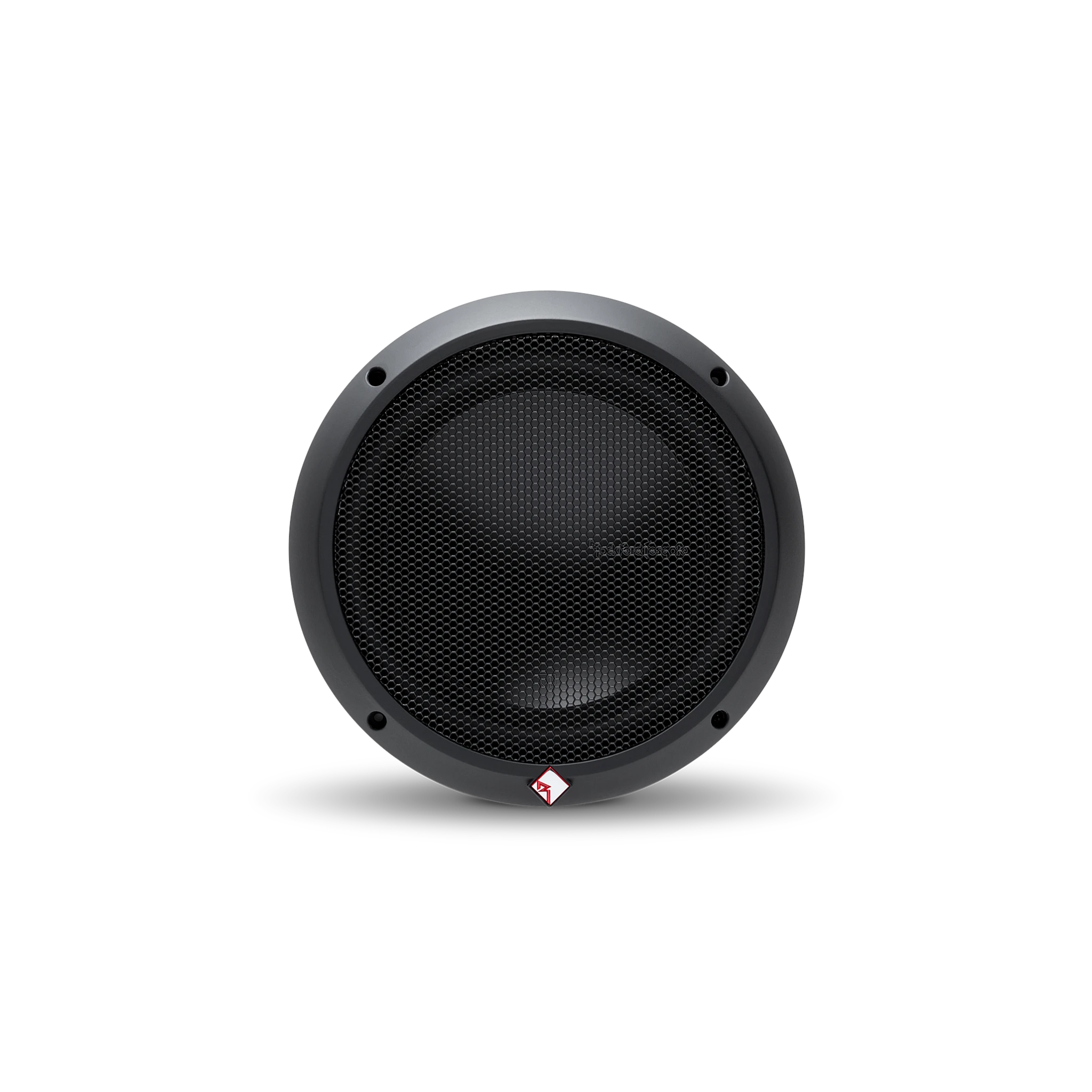

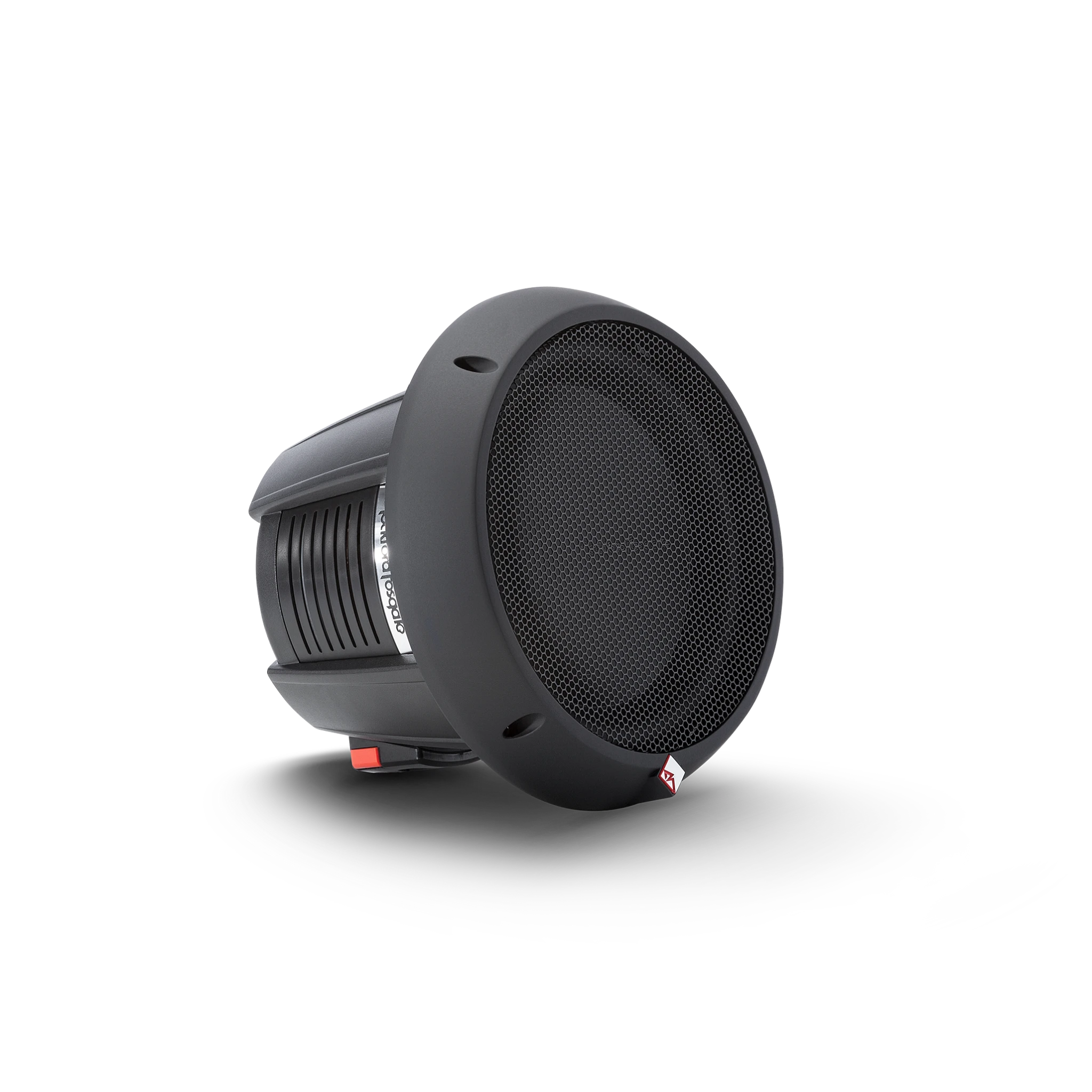

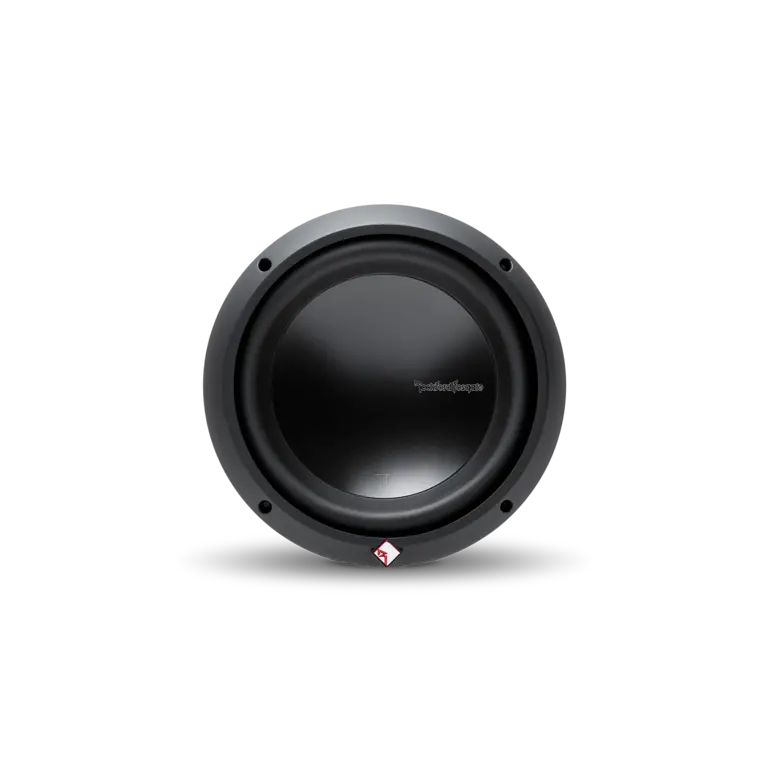

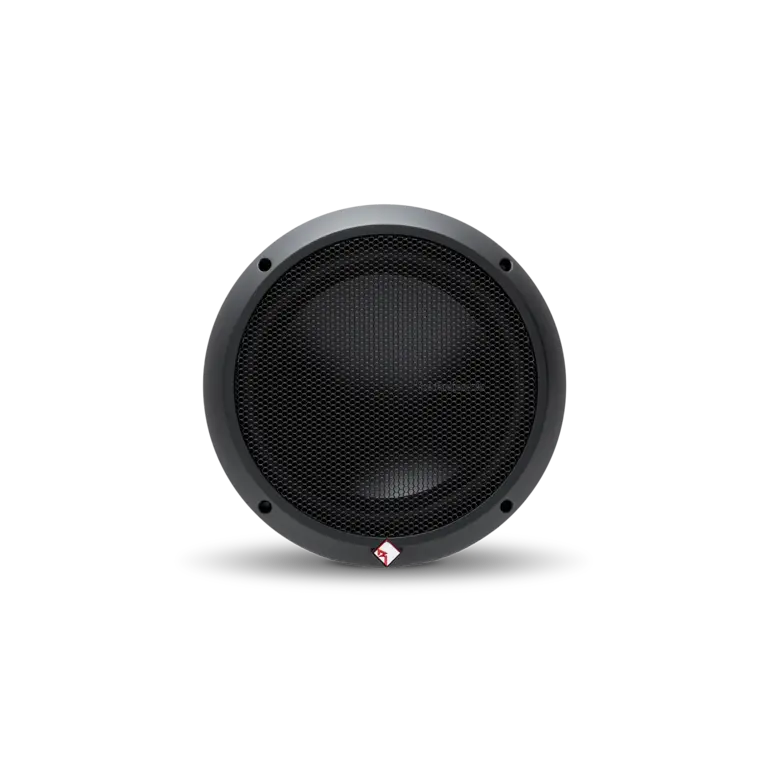

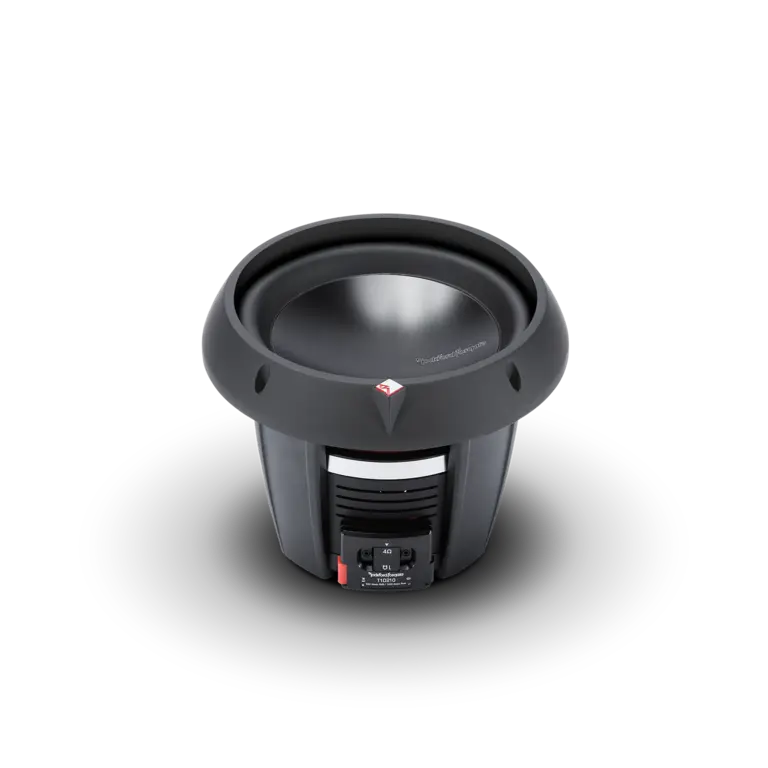

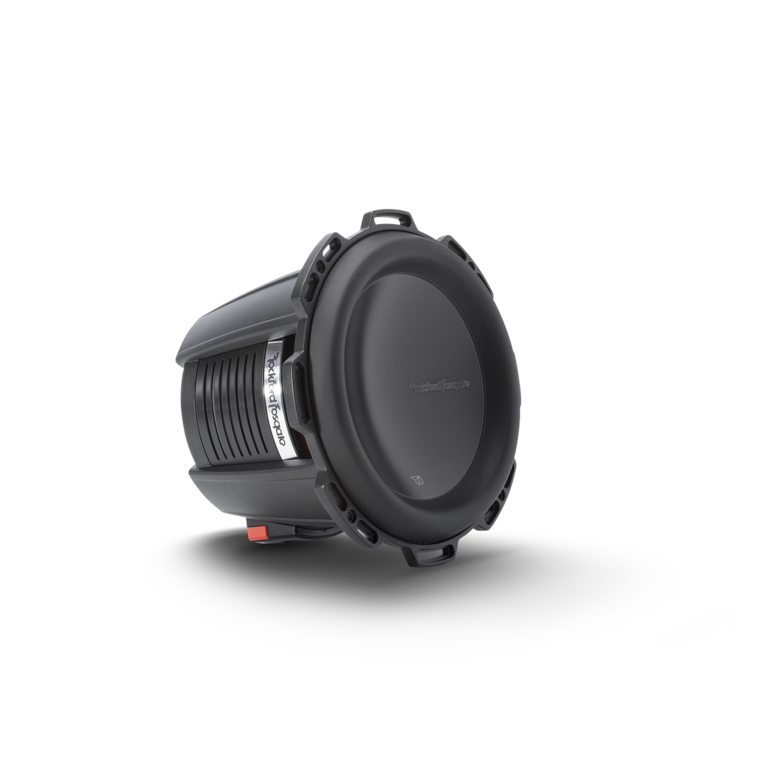

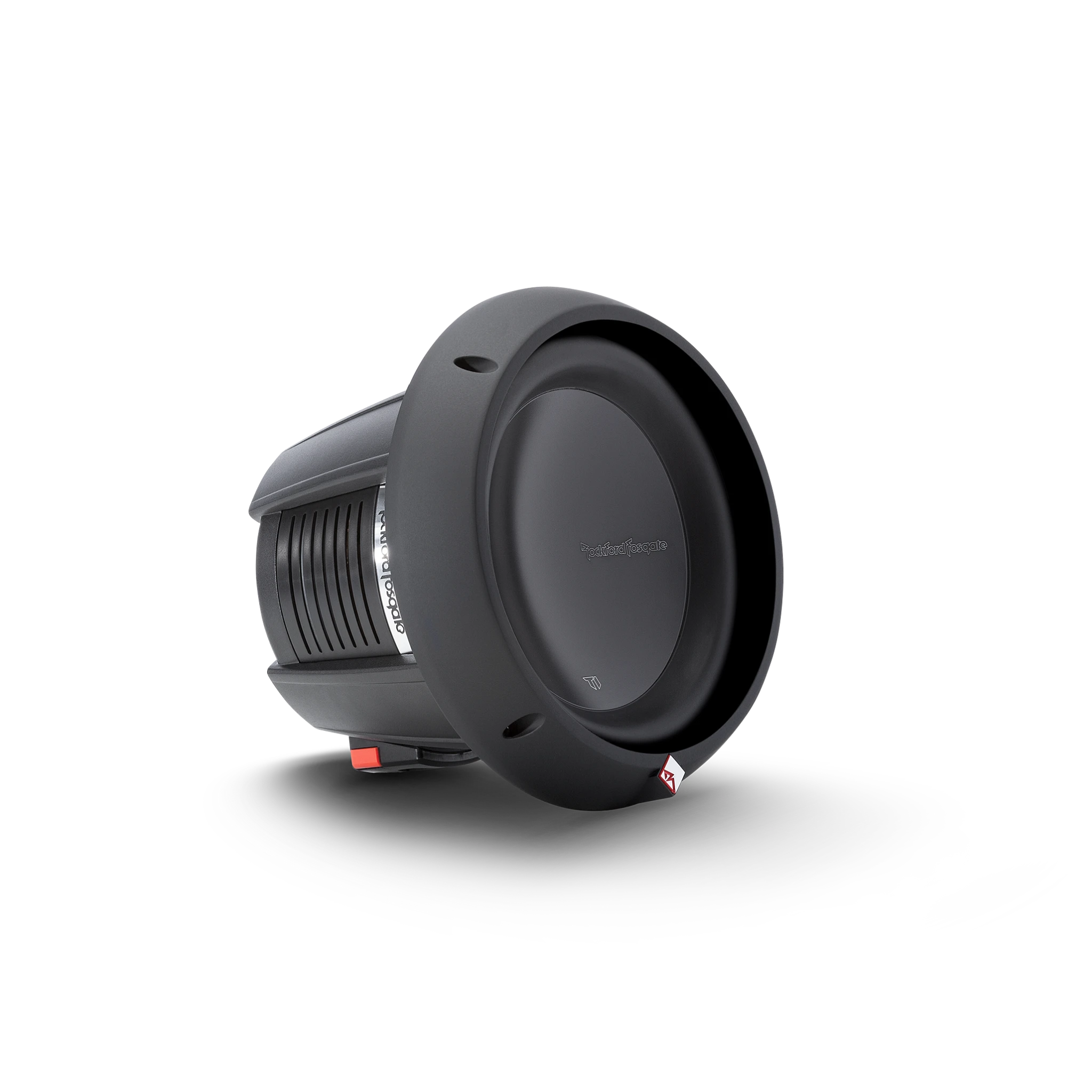

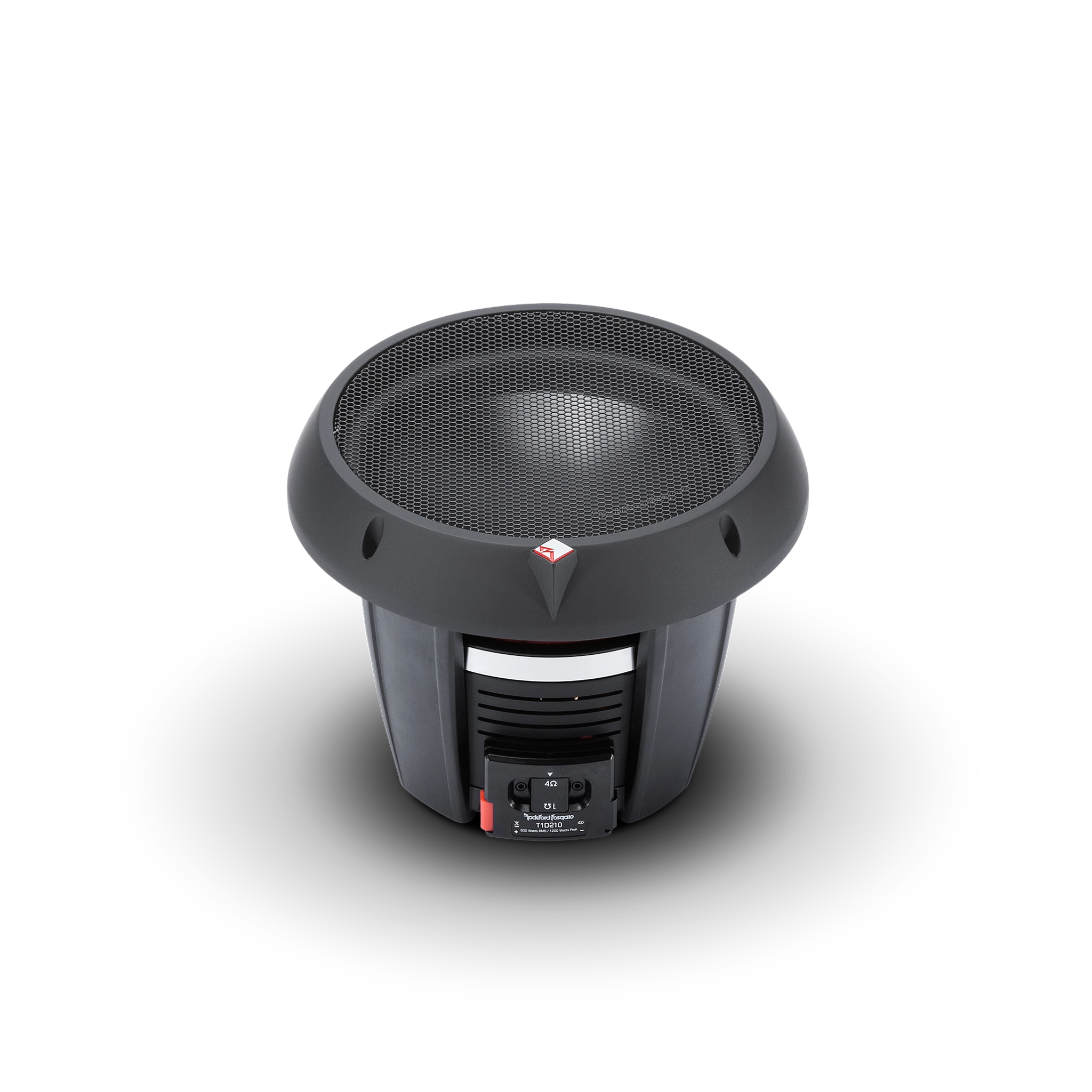

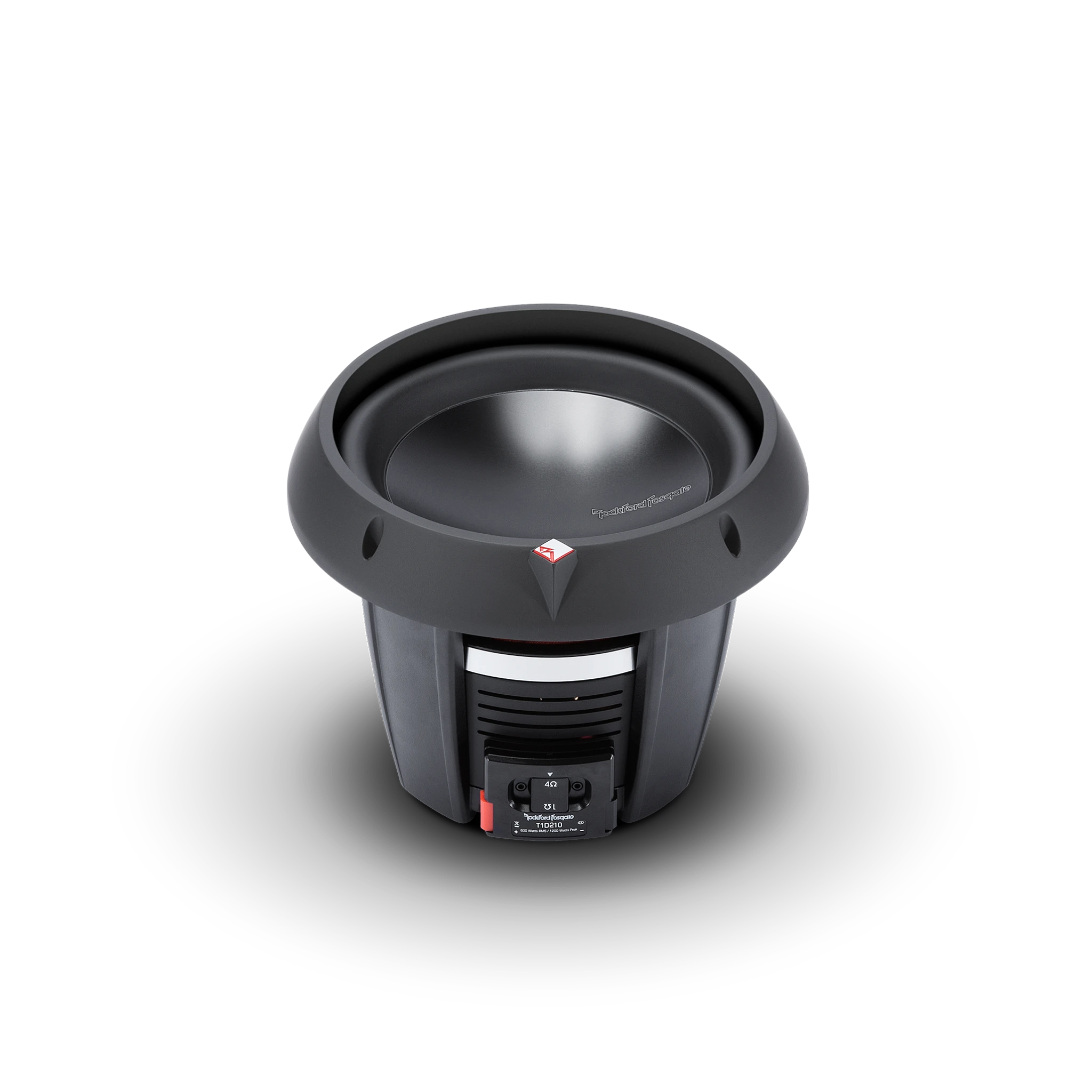

Rockford Fosgate T1D210 Dual 2ohm 10” subwoofer

FEATURES AT A GLANCE

• Symmetrical dual progressive roll tear resistant poly-cotton spiders
• Optimized and matched magnetic and complicance geometry
• Proprietary 8 AWG insulated allmetal input spring terminal connection
• Anodized aluminum heat sinking dust cap
• Kevlar fiber reinforced paper cone
• Periodic-stitched fatigue resistant tinsel lead wire
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Anodized aluminum voice coil former / copper clad aluminum wire
• Optimized pole piece and spider venting
• Rigid die-cast aluminum basket
• 1 Year Warranty

The Power Series T1D210 Dual 2-Ohm subwoofer builds on innovative new Rockford Fosgate technologies. These bad boys have patented VAST technology that increases surface cone area up to 25% so the T1D210 performs like a much larger woofer over the previous model. The new FlexFit basket not only looks the part but it provides extreme flexibility for extreme installations. Clean, high tech and ready to set off car alarms, the T1D210 is here!

Magnet Weight (oz)

100 oz. (2.84 kg)

Qts

0.54

Qes

0.59

Qms

6.00

Xmax (mm)

16

Cutout Diameter

9.0625 in. (230 mm)

Woofer Displacement

0.078 cu. ft. (2.2 Liters)

Sd (cm²)

345

CEA-2031 Compliant

Subwoofer Type

Standard

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

0.75 cu. ft. (21.2 Liters)

Vented Box Volume (Vb)

1.5 cu. ft. (42.4 Liters)
