Create an accountFEATURES AT A GLANCE
- 4-Channel
- RCA Level Output
- Speaker Level Input
- 1 Year Warranty

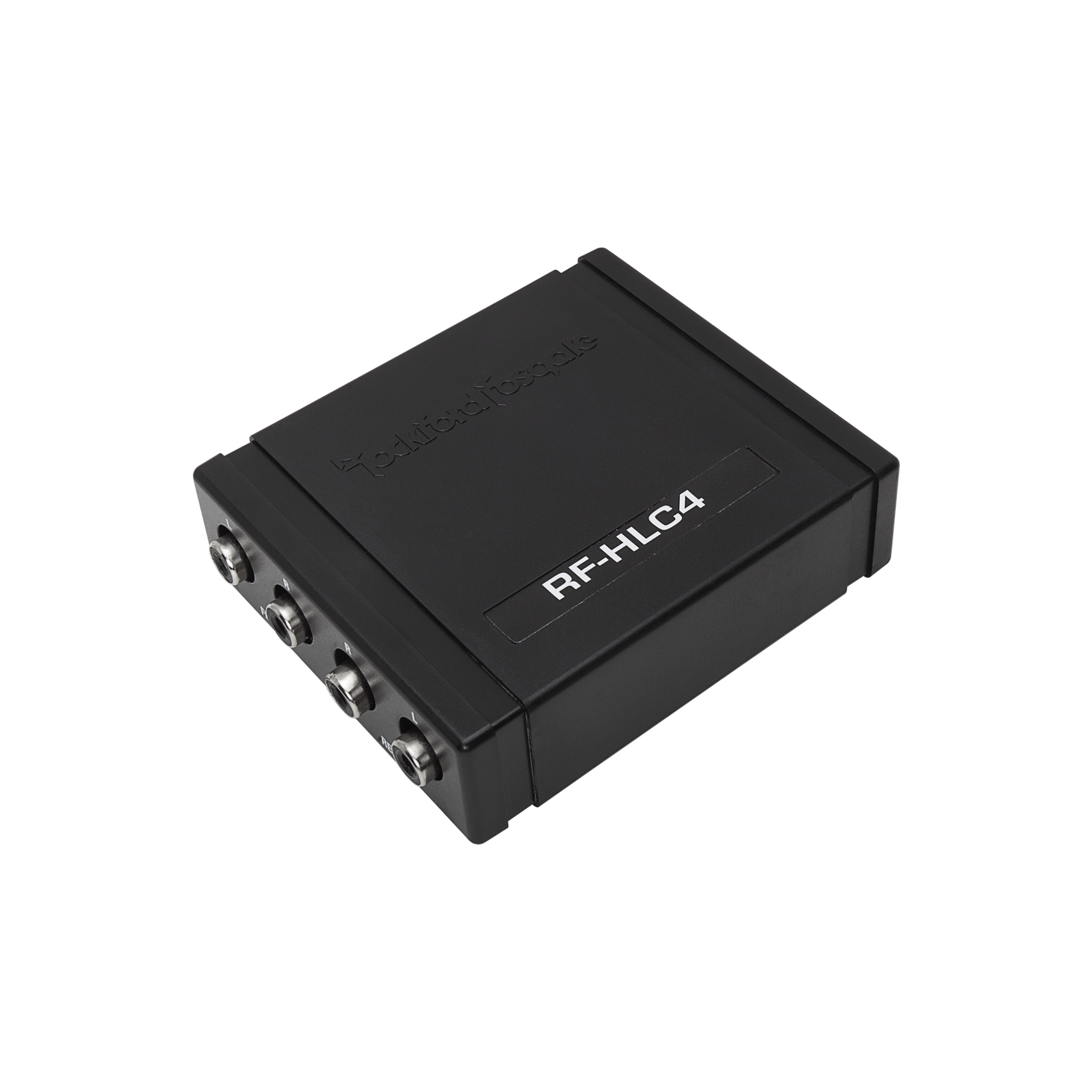

The RF-HLC4 is a 4-channel high-level to low-level signal converter designed for factory or aftermarket radios that do not have dedicated low-level RCA outputs. The adapter converts high-level signal from the radio's speaker line and transforms it into a safer low-level audio signal. This allows you to add a 4-channel amplifier to your system for higher power output and better sound quality.
Signal Input
Front Left & Right +/- leads
Rear Left & Right +/- leads
Front & Rear ground leads
Rear Left & Right +/- leads
Front & Rear ground leads
Dimensions
1" x 3" x 3-1/2"
(2.54cm x 7.62cm x 8.89cm)
(2.54cm x 7.62cm x 8.89cm)
Configuration
Line Output Converter
Signal Output

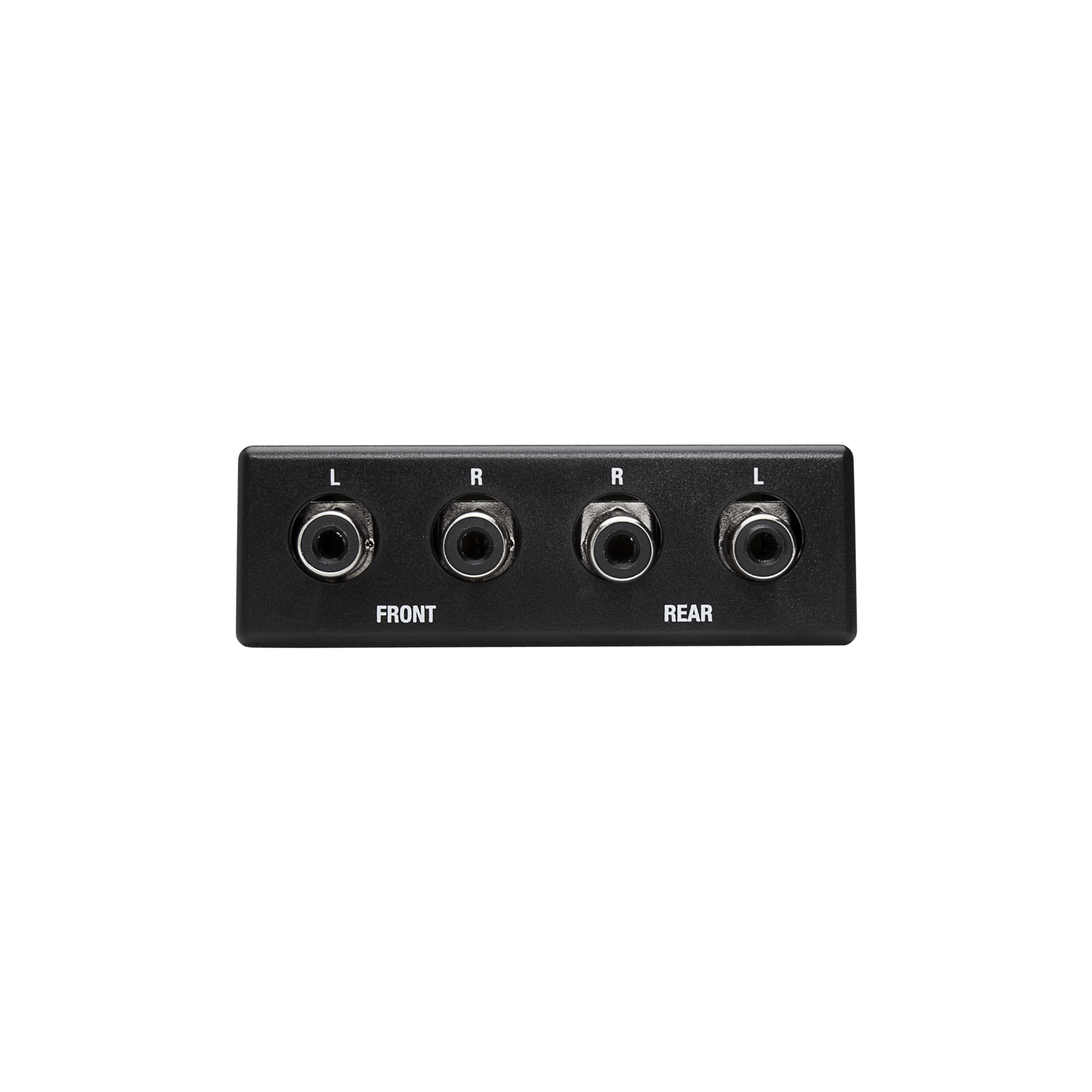

Front Left & Right RCA jacks
Rear Left & Right RCA jacks
Rear Left & Right RCA jacks
Input Voltage
Up to 10.5V (high-level)
Output Voltage
Up to 3V (low-level)
Mounting
Behind dash
Input Impedance
—
Output Impedance
—
