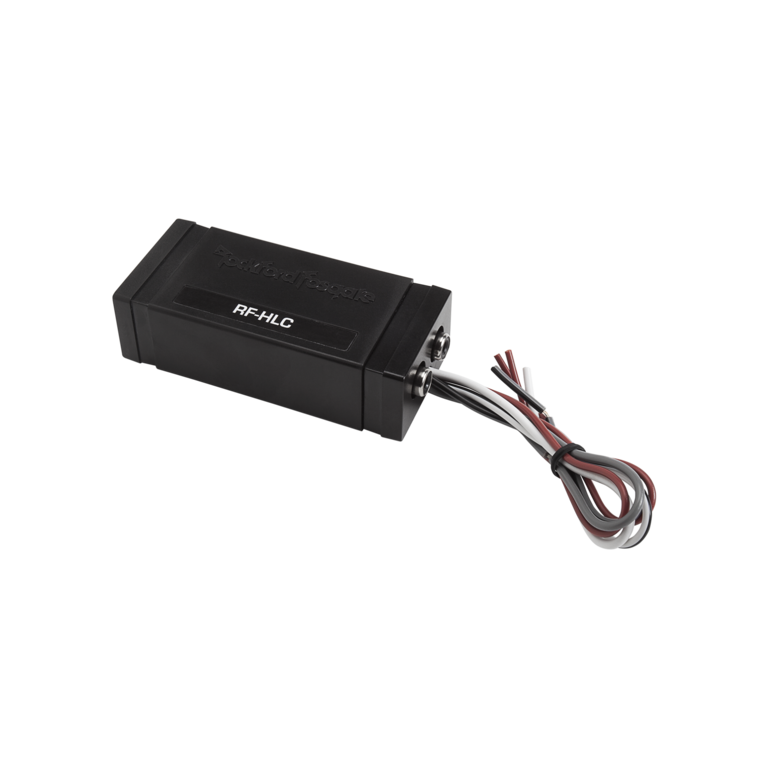

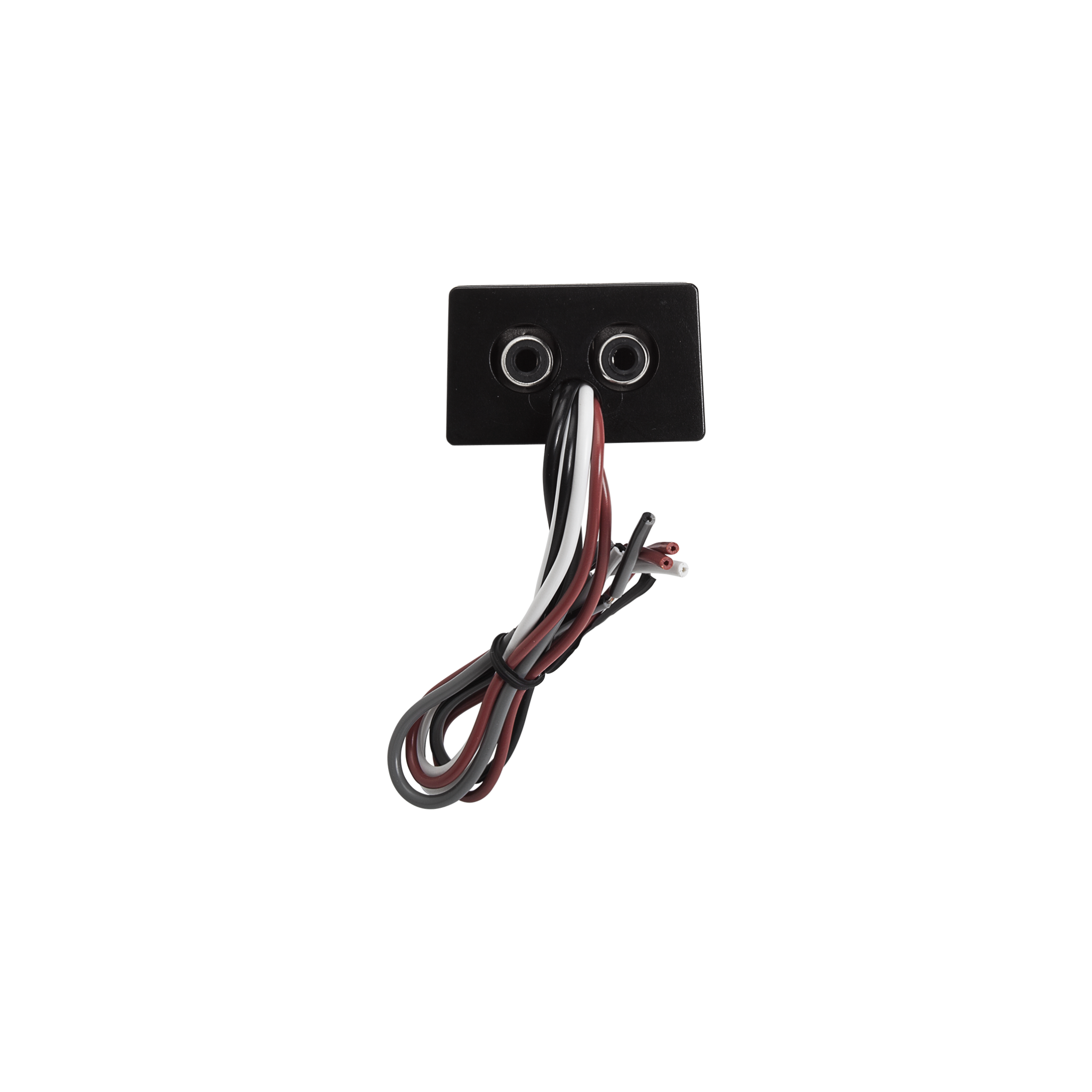

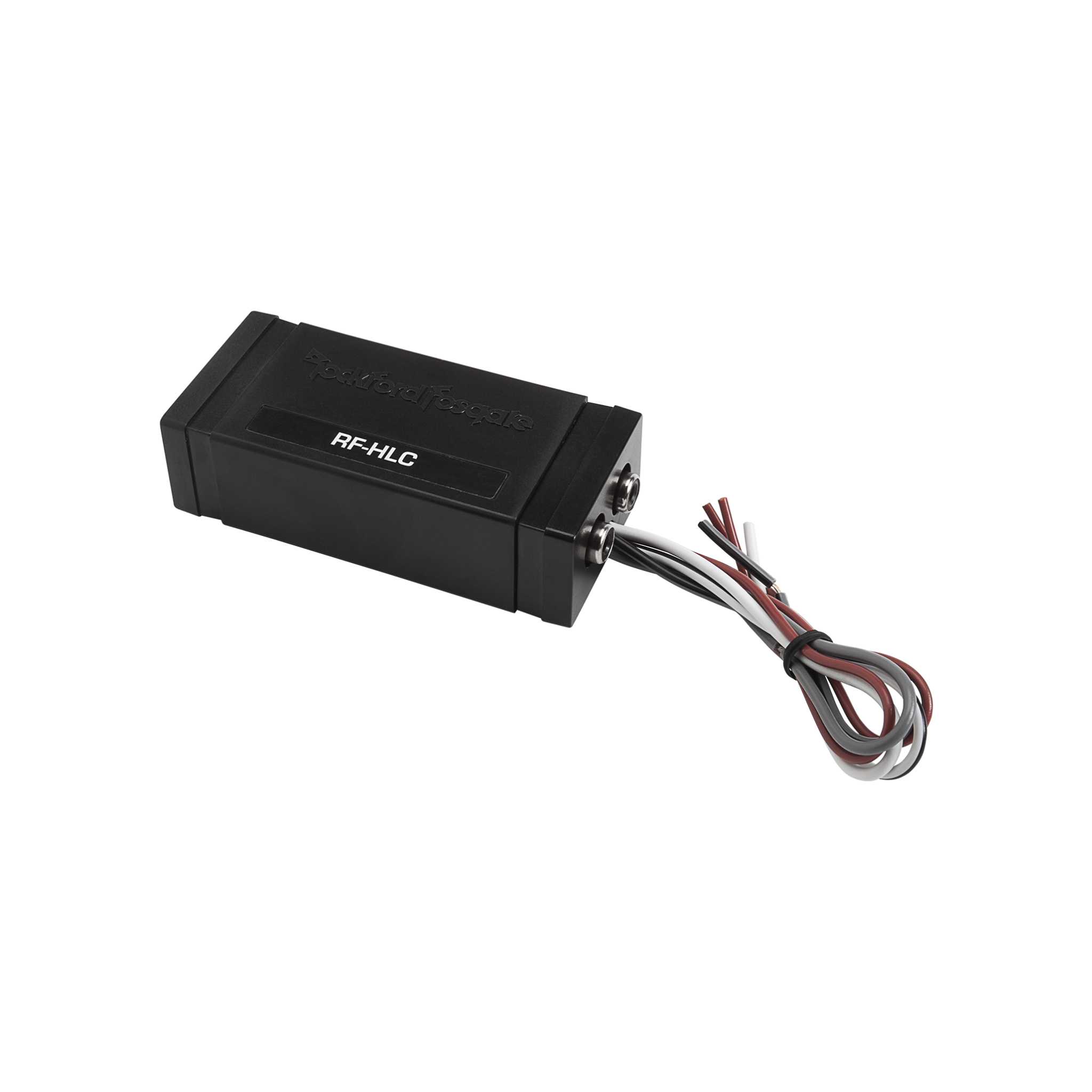

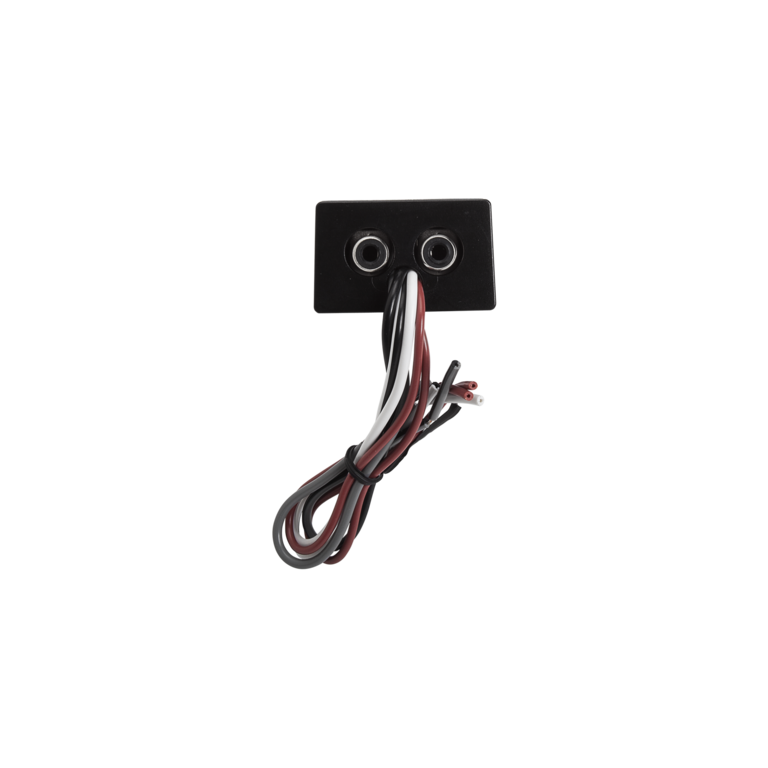

Rockford Fosgate RF-HLC 2ch speaker level to RCA output

$26.97
Rockford Fosgate
In stock
Use the RF-HLC high-to-low signal converter to connect 2-channel amplifiers to radios without RCA outputs.
+-
Add to cart

FEATURES AT A GLANCE

  • 2-Channel
  • RCA Level Output
  • Speaker Level Input
  • 1 Year Warranty

The RF-HLC is a 2-channel high-level to low-level signal converter designed for factory or aftermarket radios that do not have dedicated low-level RCA outputs.  The adapter converts high-level signal from the radio's speaker line and transforms it into a safer low-level audio signal.  This allows you to add a 2-channel amplifier to your system for higher power output and better sound quality.

Configuration
Line Output Converter
Signal Output
Left & Right RCA jacks
Input Voltage
Up to 10.5V (high-level)
Output Voltage
Up to 3V (low-level)
Dimensions
1" x 1-9/16" x 3-1/2"
(2.54cm x 3.96cm x 8.89cm)
Signal Input
Left & Right +/- leads
Ground lead
Mounting
Behind dash
Input Impedance
—
Output Impedance
—
Processor Type
Analog Processor
