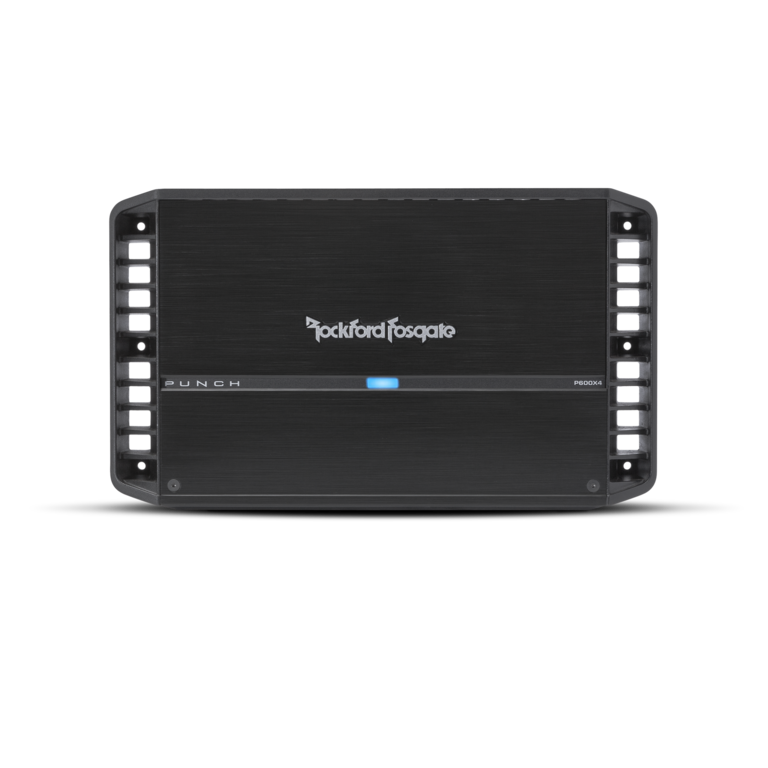

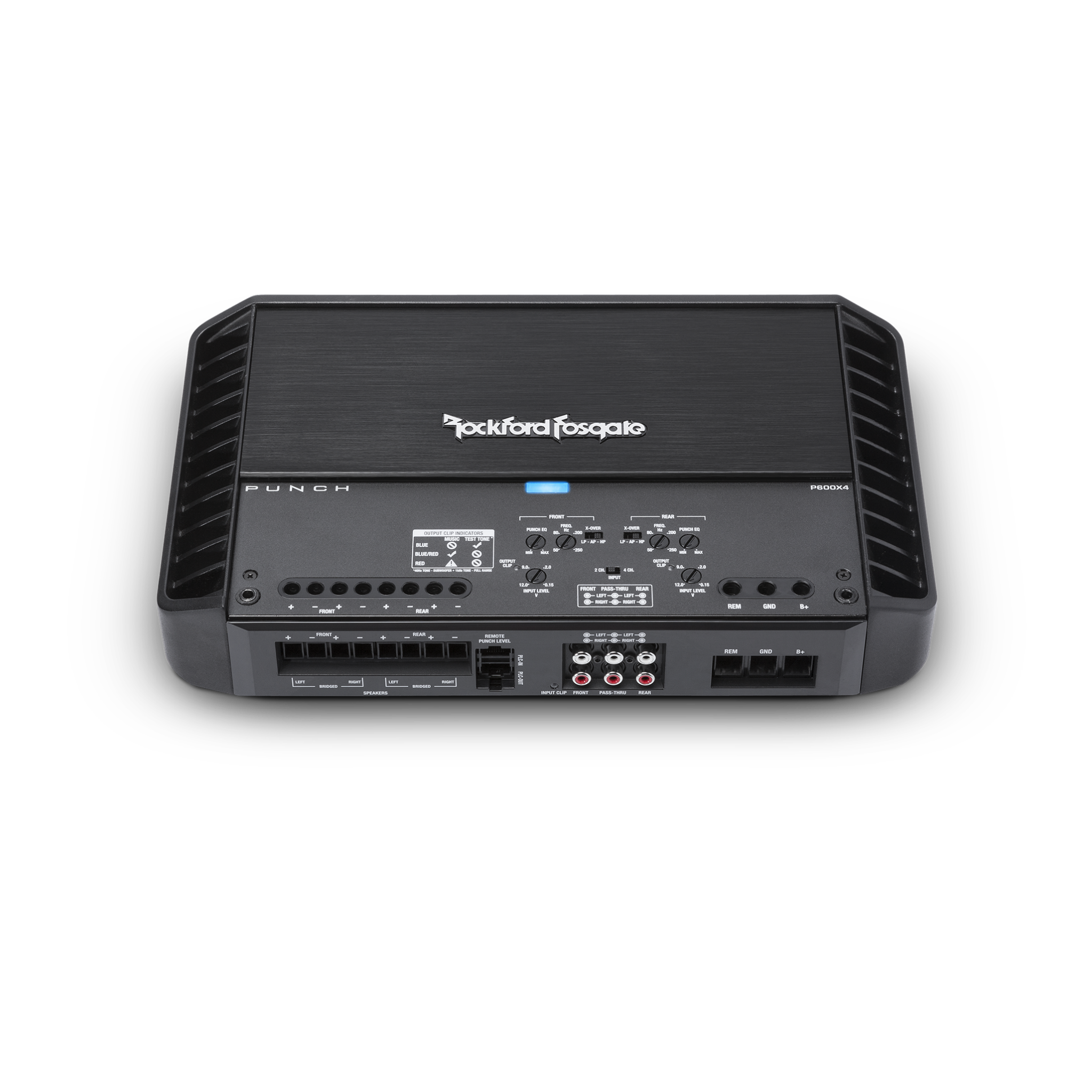

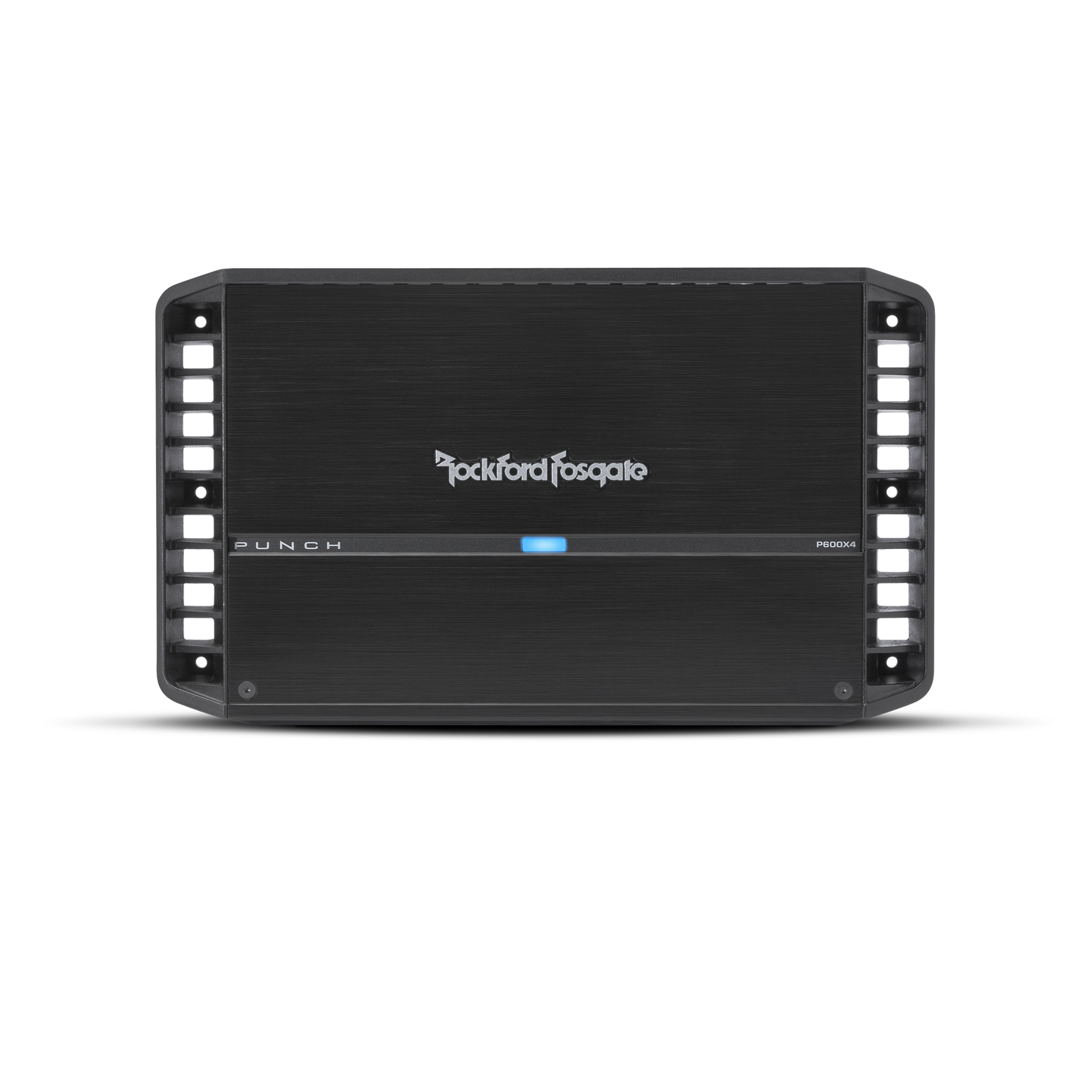

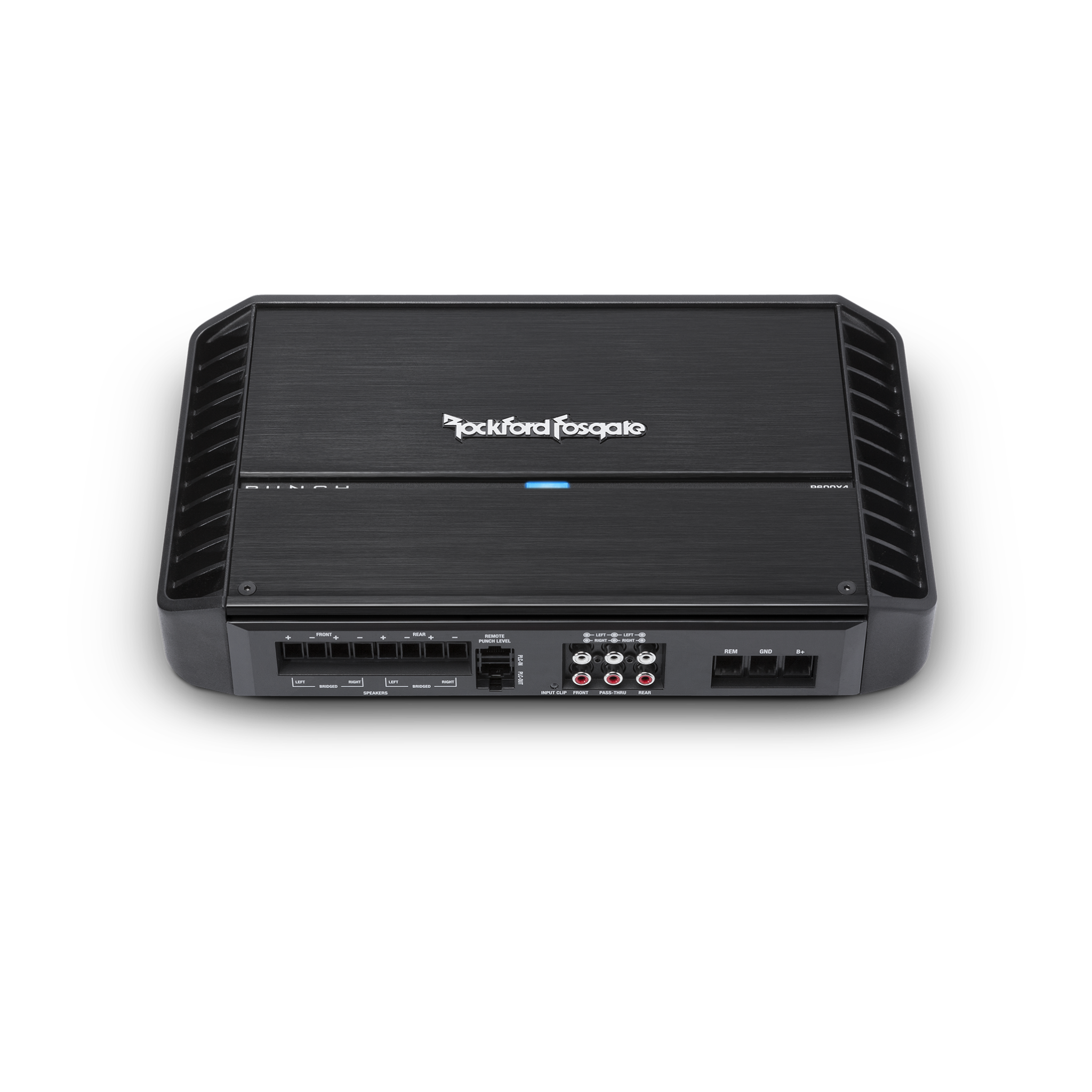

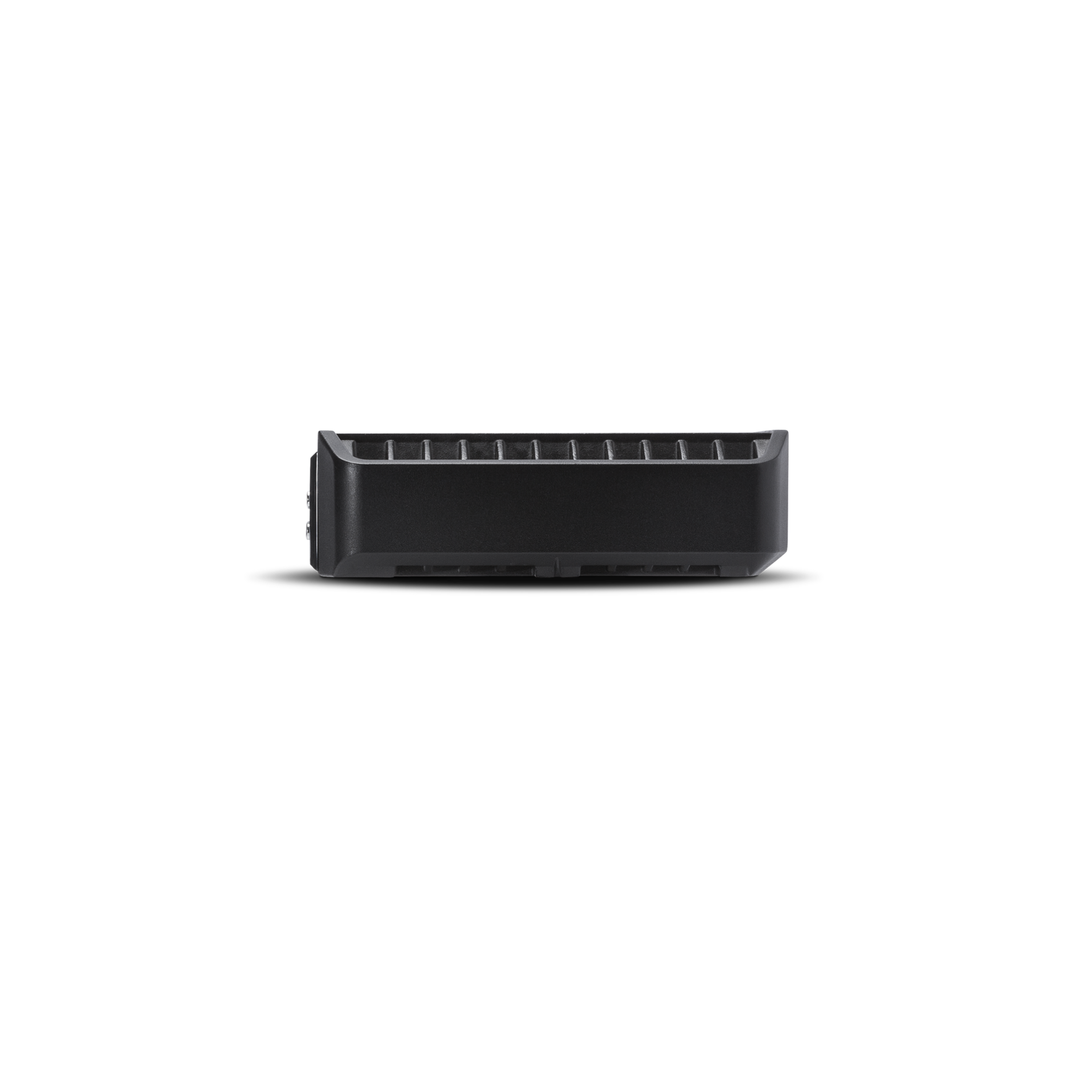

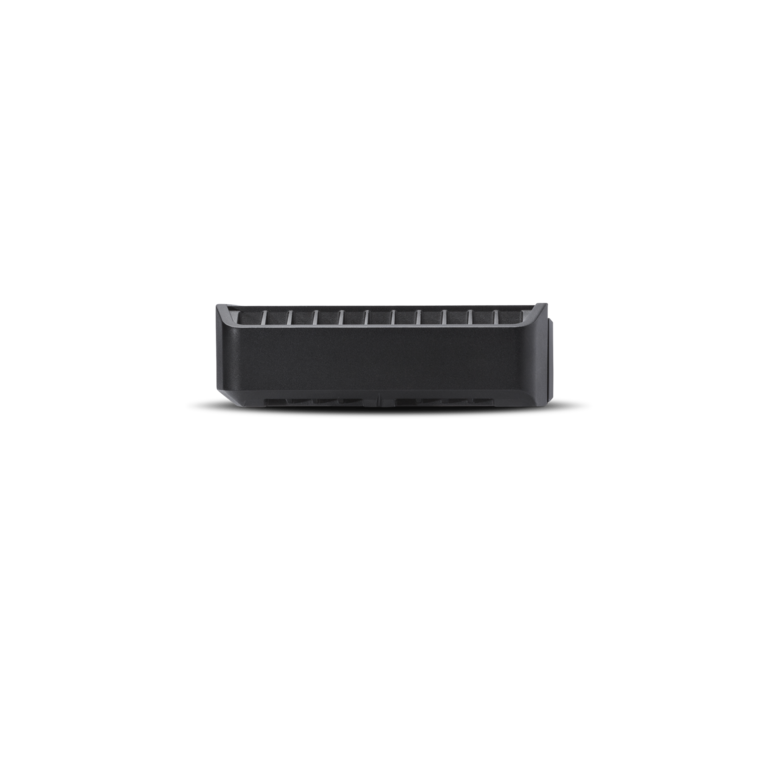

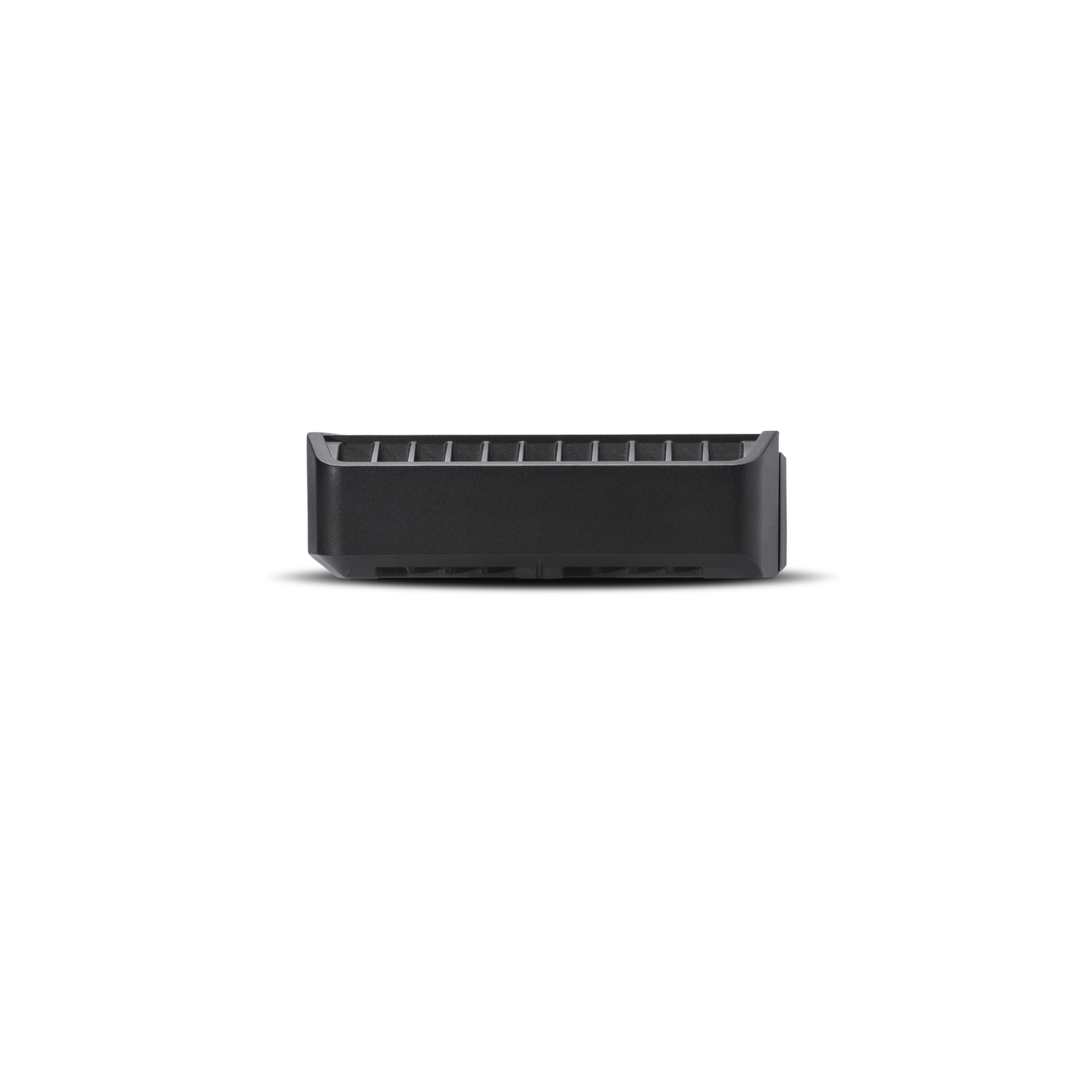

The Punch P600X4 is a 4-channel amplifier producing 150 Watts into all four channels at 2-Ohm. The P600X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels.
FEATURES AT A GLANCE
- 12dB/octave Butterworth crossover
- Features C.L.E.A.N. Set-up
- High level input capable with Auto Turn-On circuit
- On-board Punch EQ with +18dB boost @ 45Hz
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)

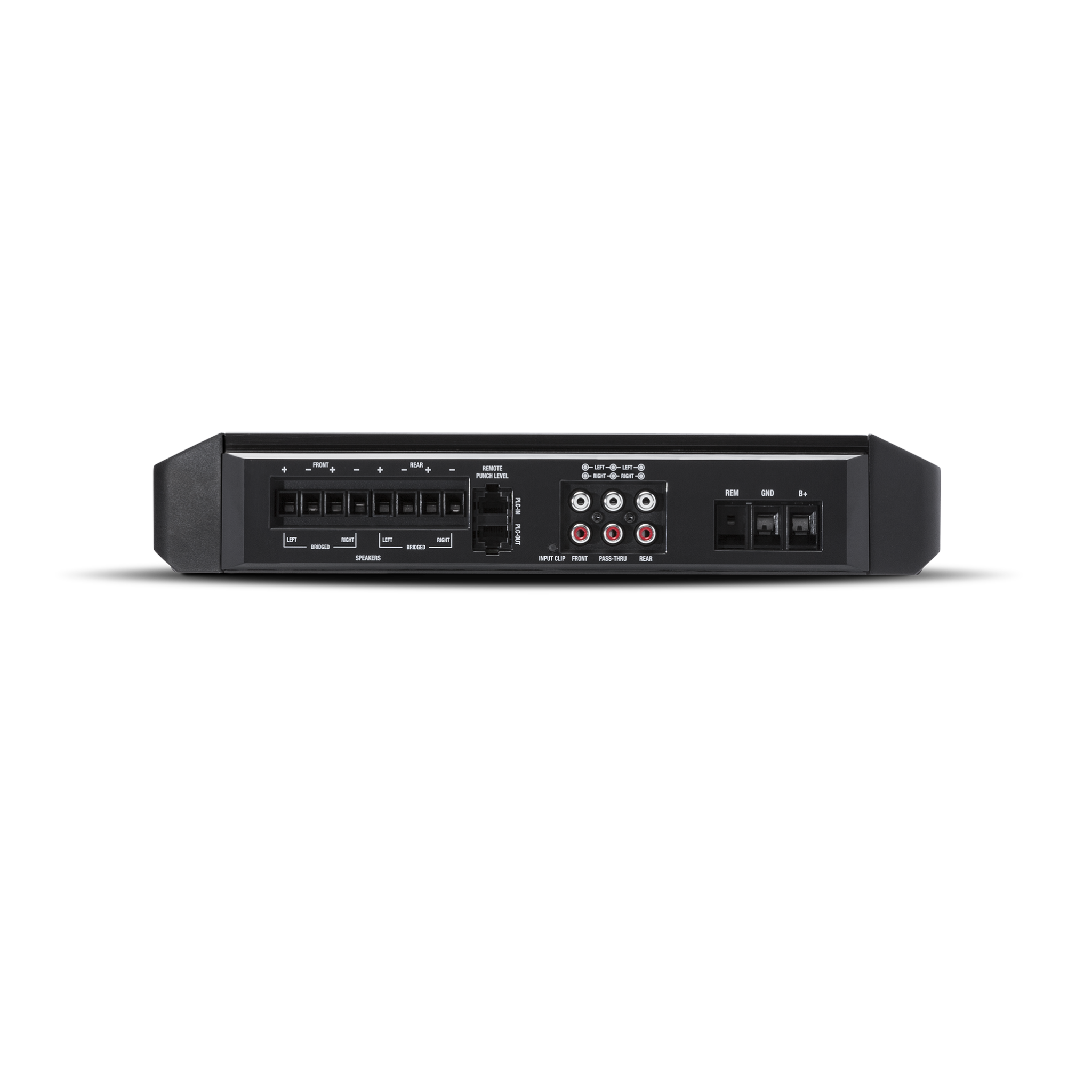

- RCA pass-thru outputs
- Short circuit protection
- Over current protection

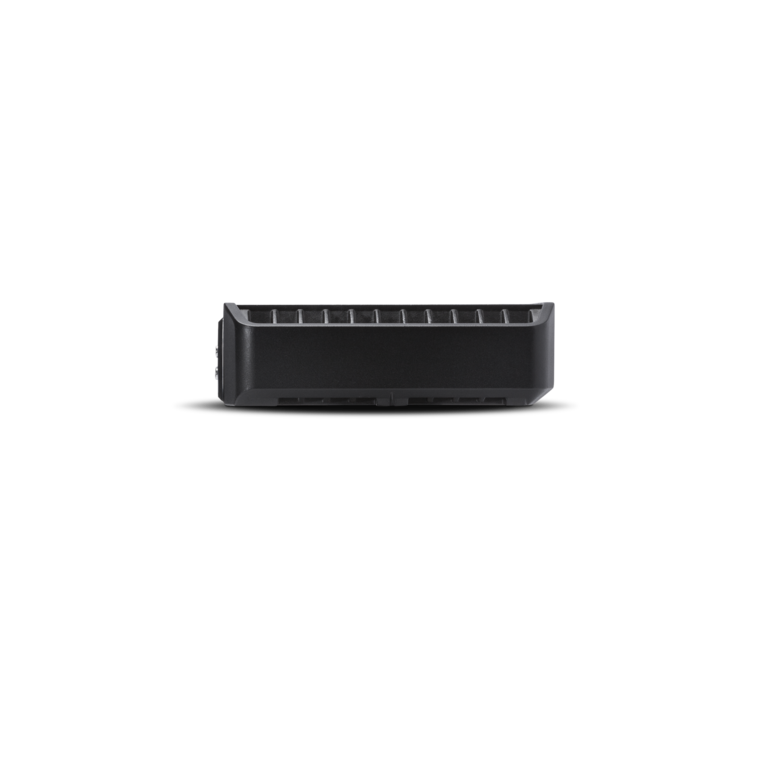

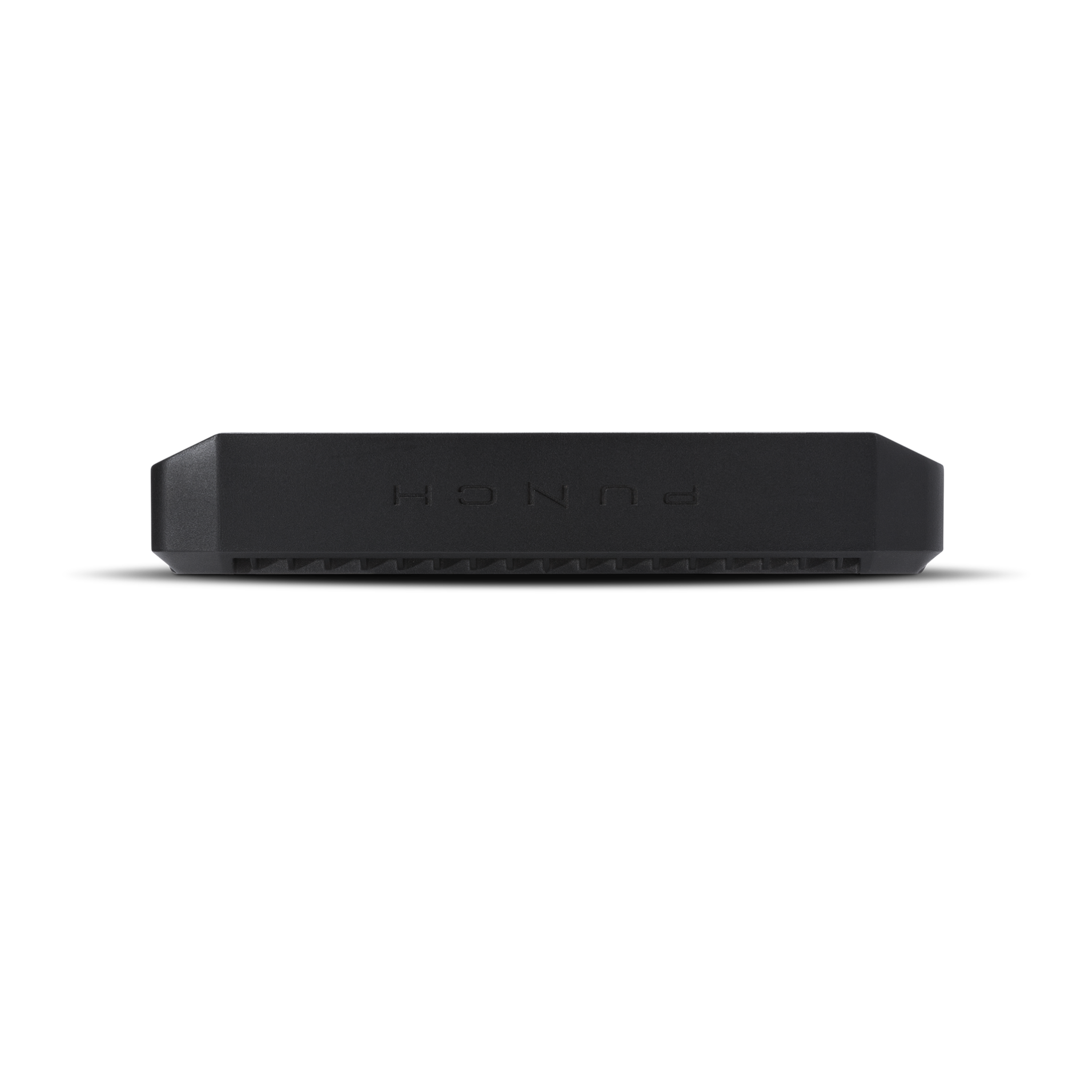

- Cast aluminum heatsink
- Muted turn on
- 1 Year Warranty

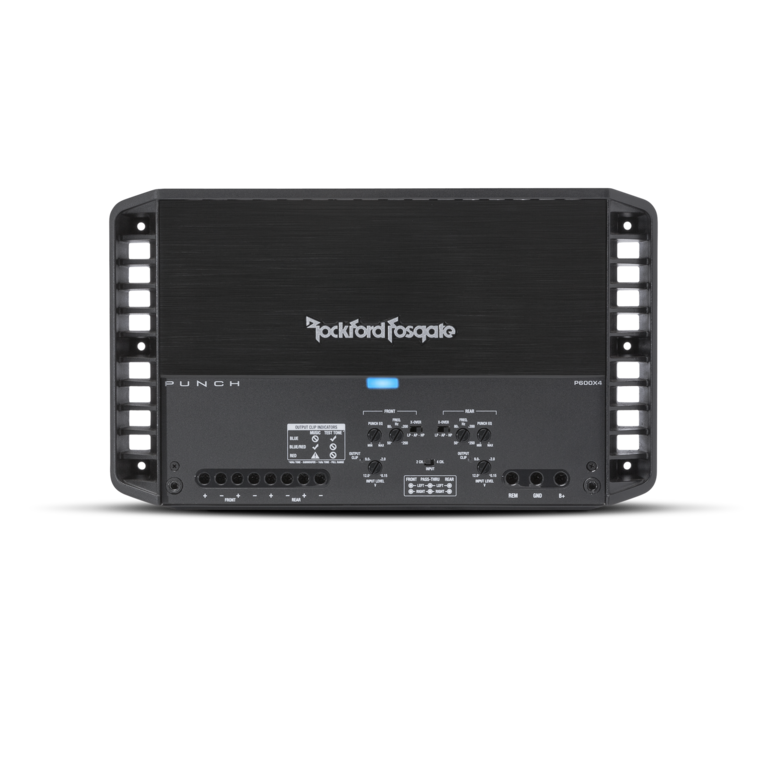

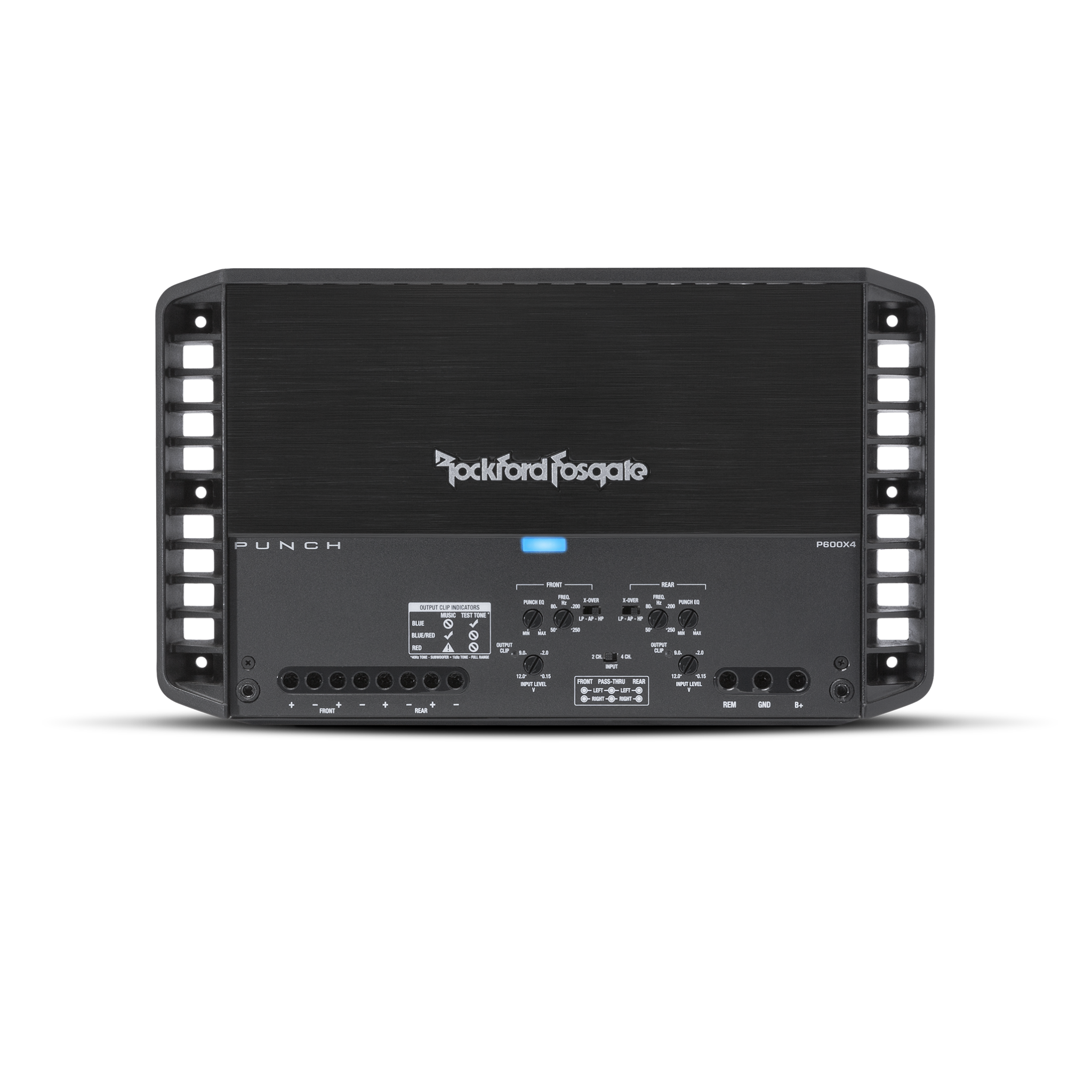

- Stealth top mounted control panel
The Punch P600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.
(Sum of Rated Power)
(RMS Continuous Power)
150 Watts x 4 @ 2-Ohm
300 Watts x 2 @ 4-Ohm Bridged
(PVC/PowerCube®)
211 Watts x 4 @ 2-Ohms 0° Res
2-Ohm: <1.0%
Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Function depends upon LP/AP/HP switch position
Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth
All-Pass: Yes
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
(not included)
6.05 x 19.71 x 33.73 (cm)
