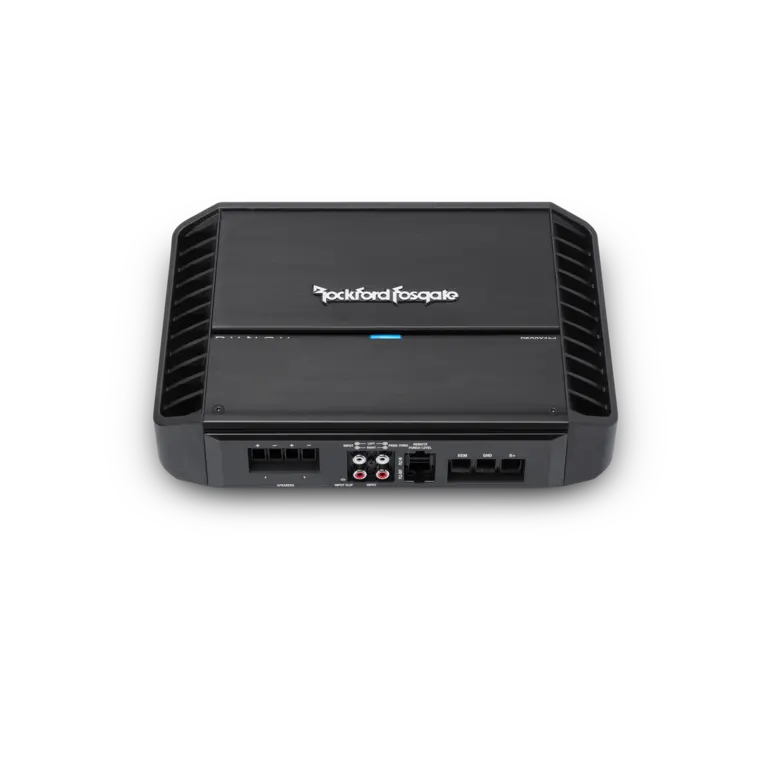

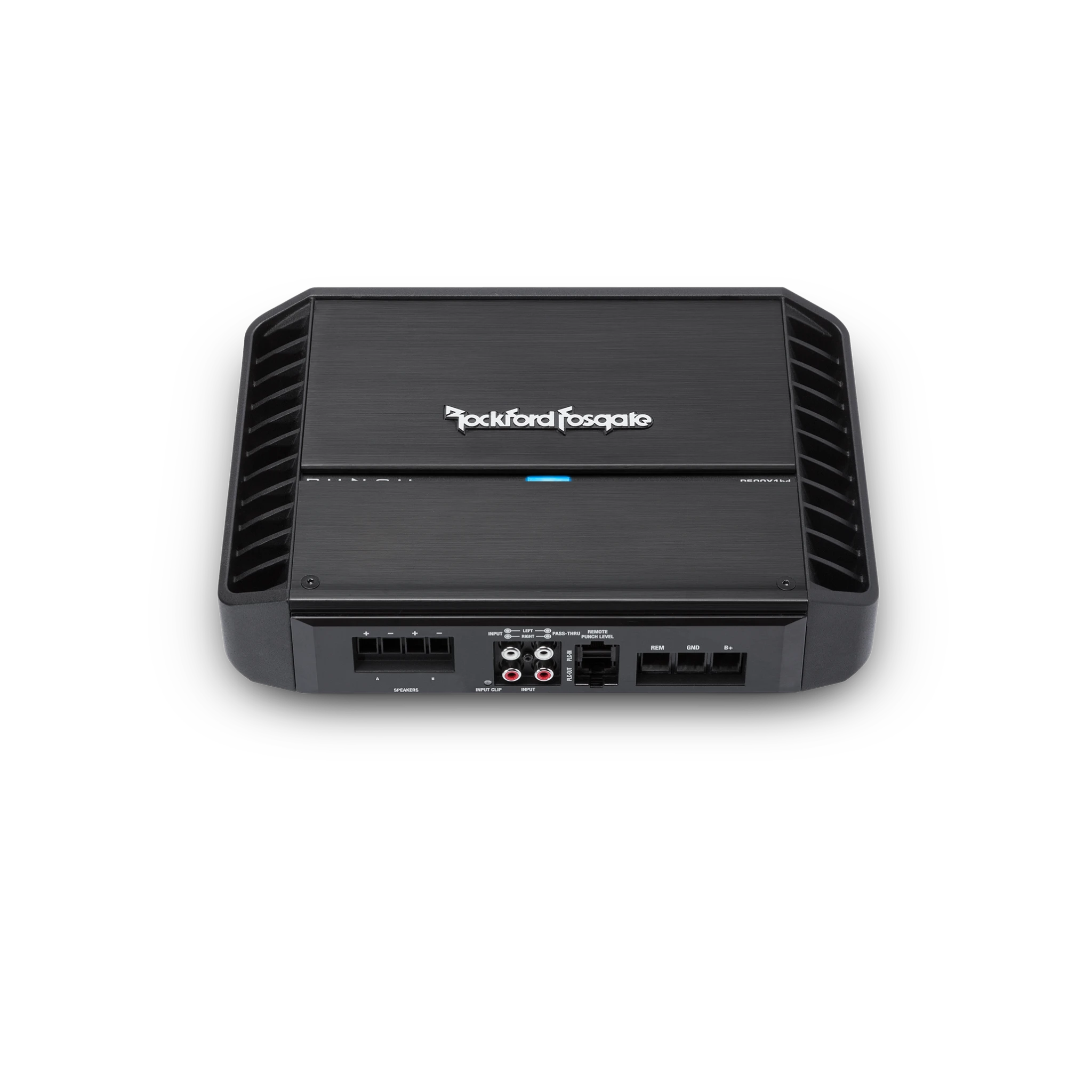

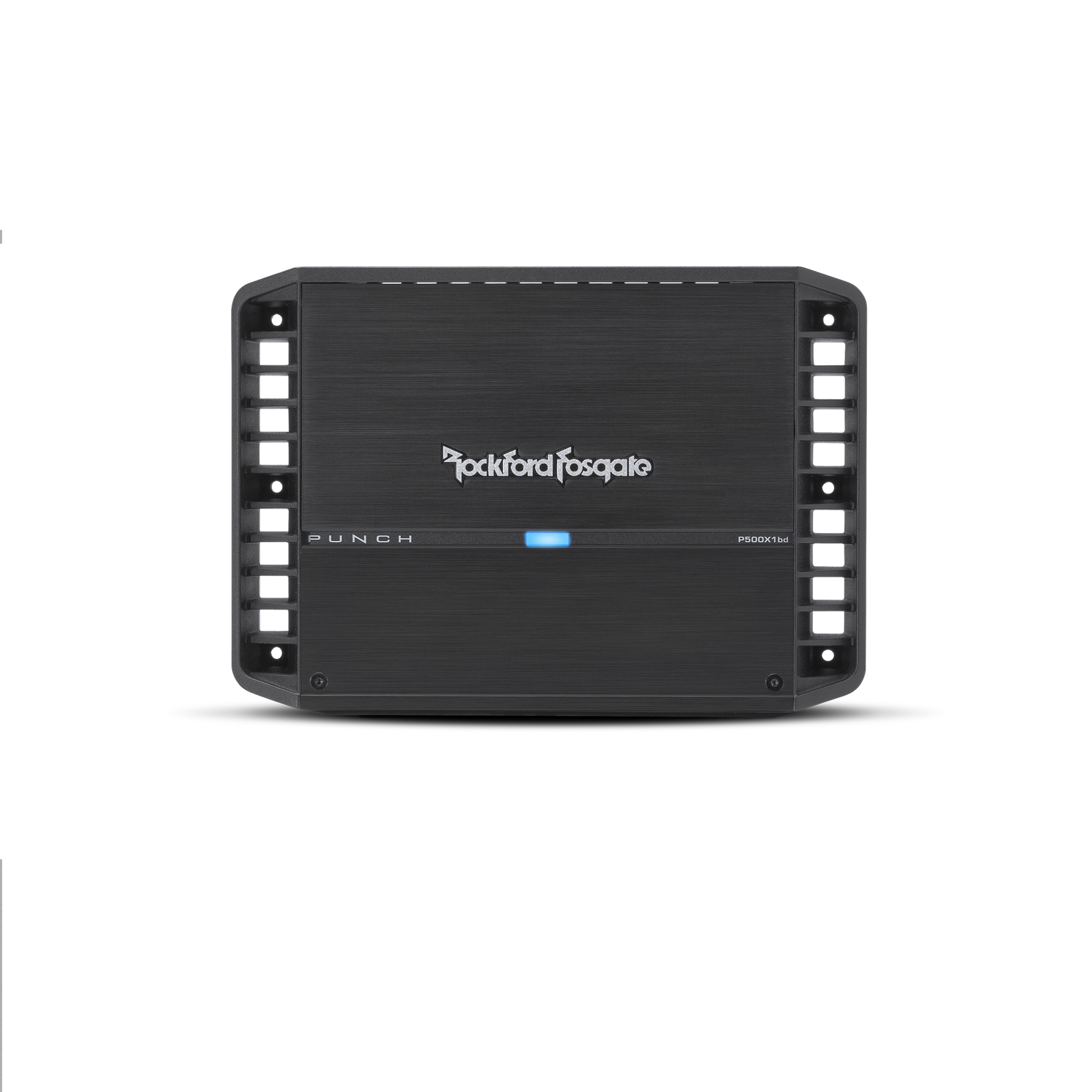

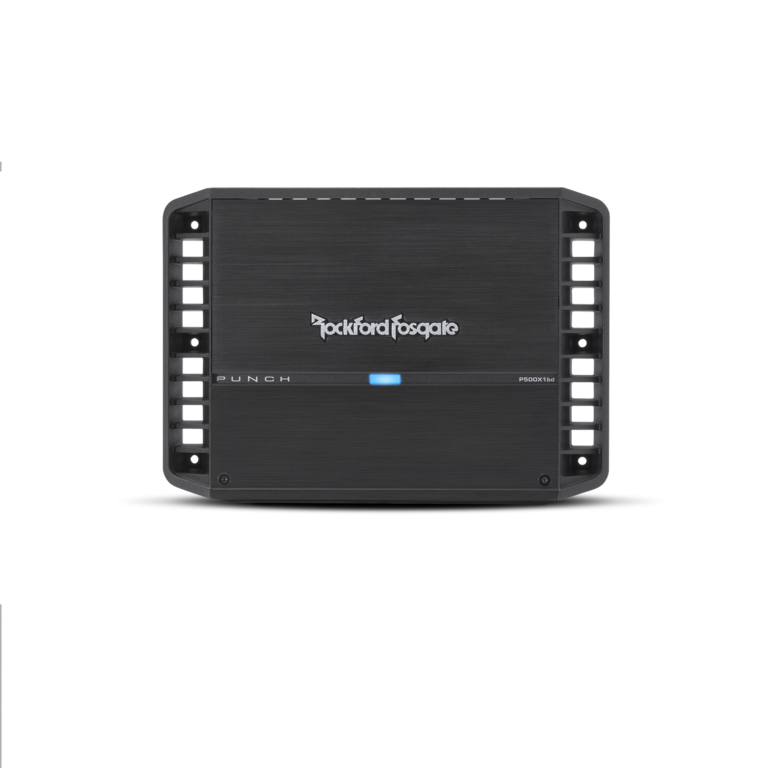

P500X1bd
The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers.
With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
FEATURES AT A GLANCE
- Features C.L.E.A.N. Set-up

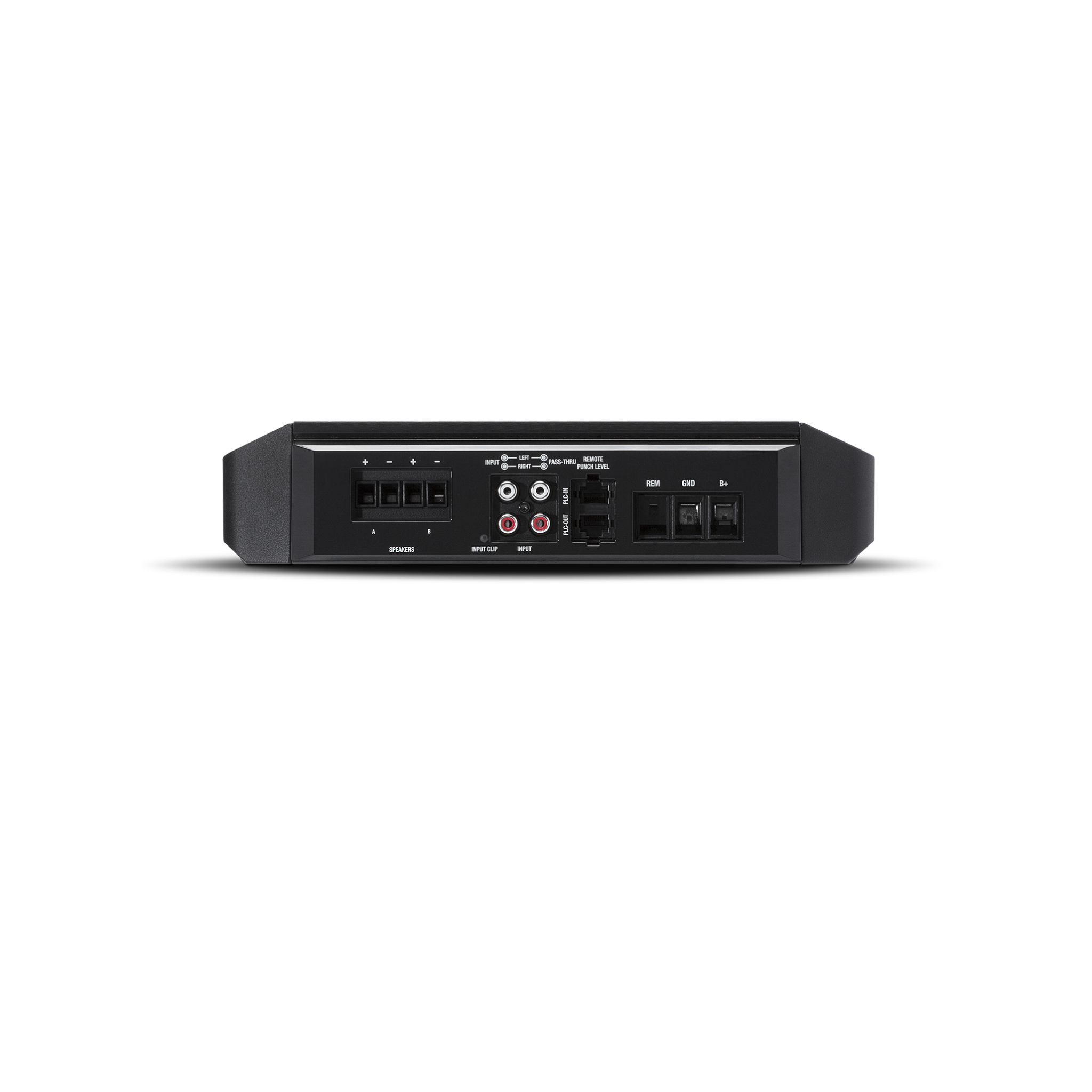

- RCA pass-thru outputs
- 12dB/octave Butterworth crossover
- High level input capable with Auto Turn-On circuit
- Short circuit protection
- Over current protection
- Infrasonic filter

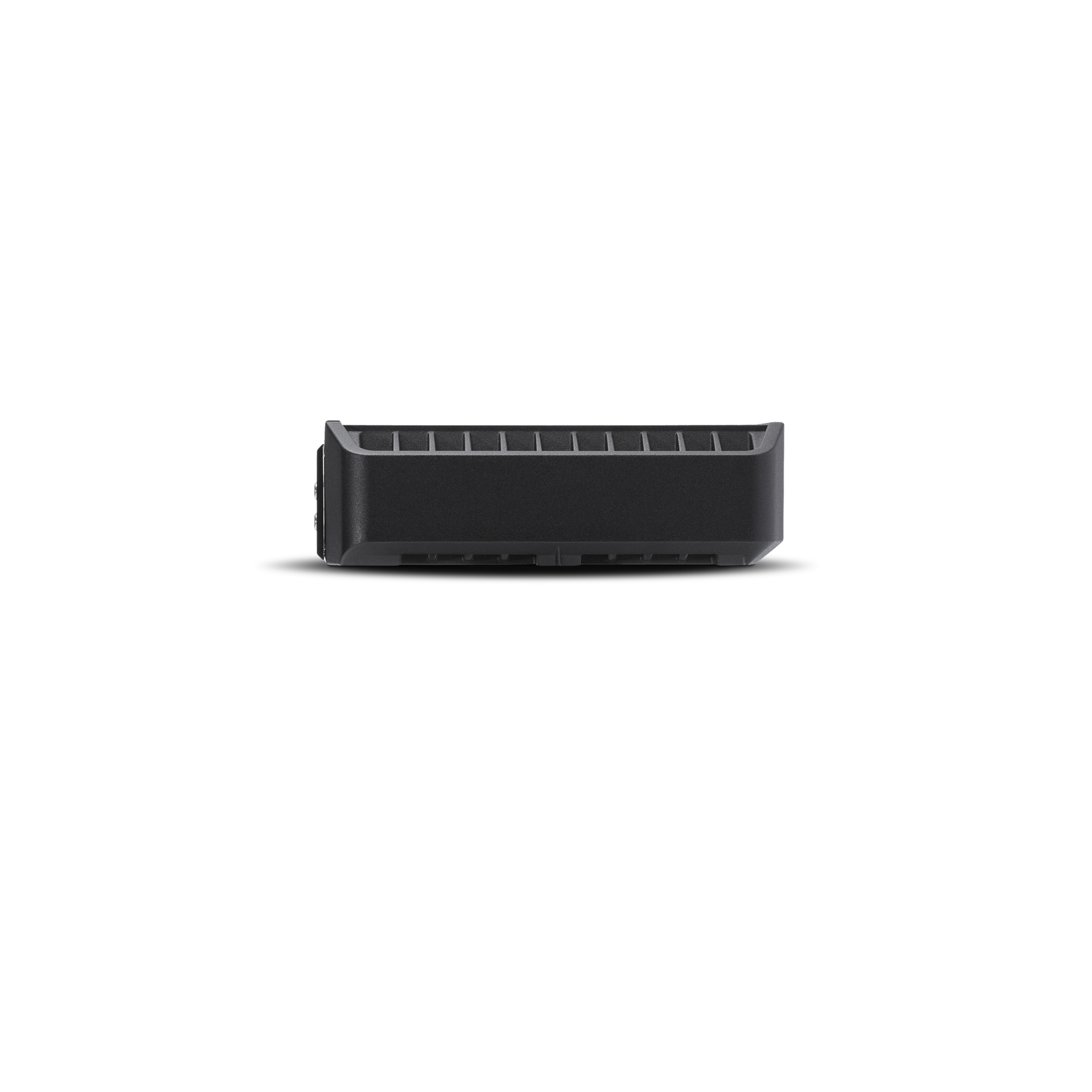

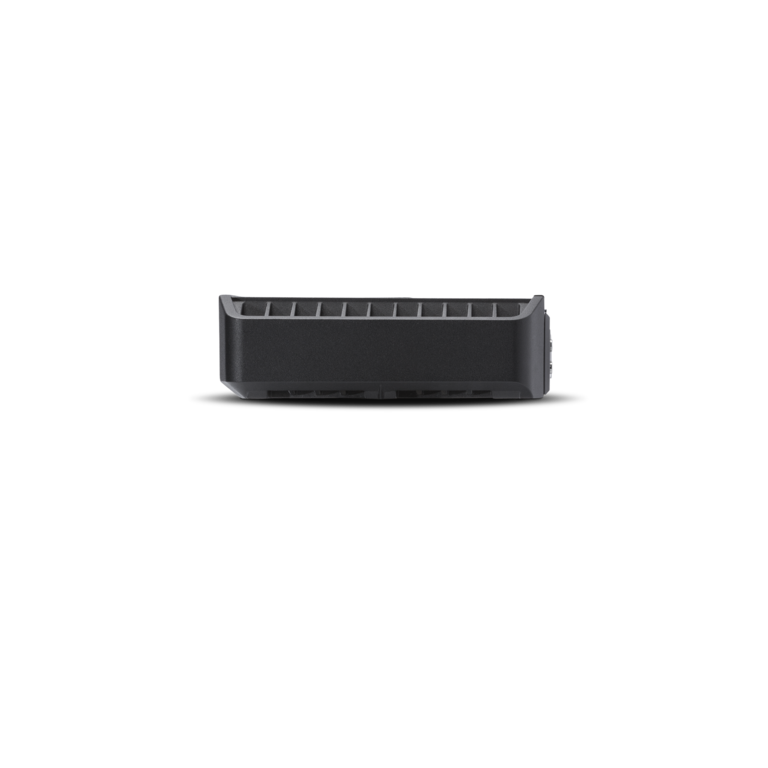

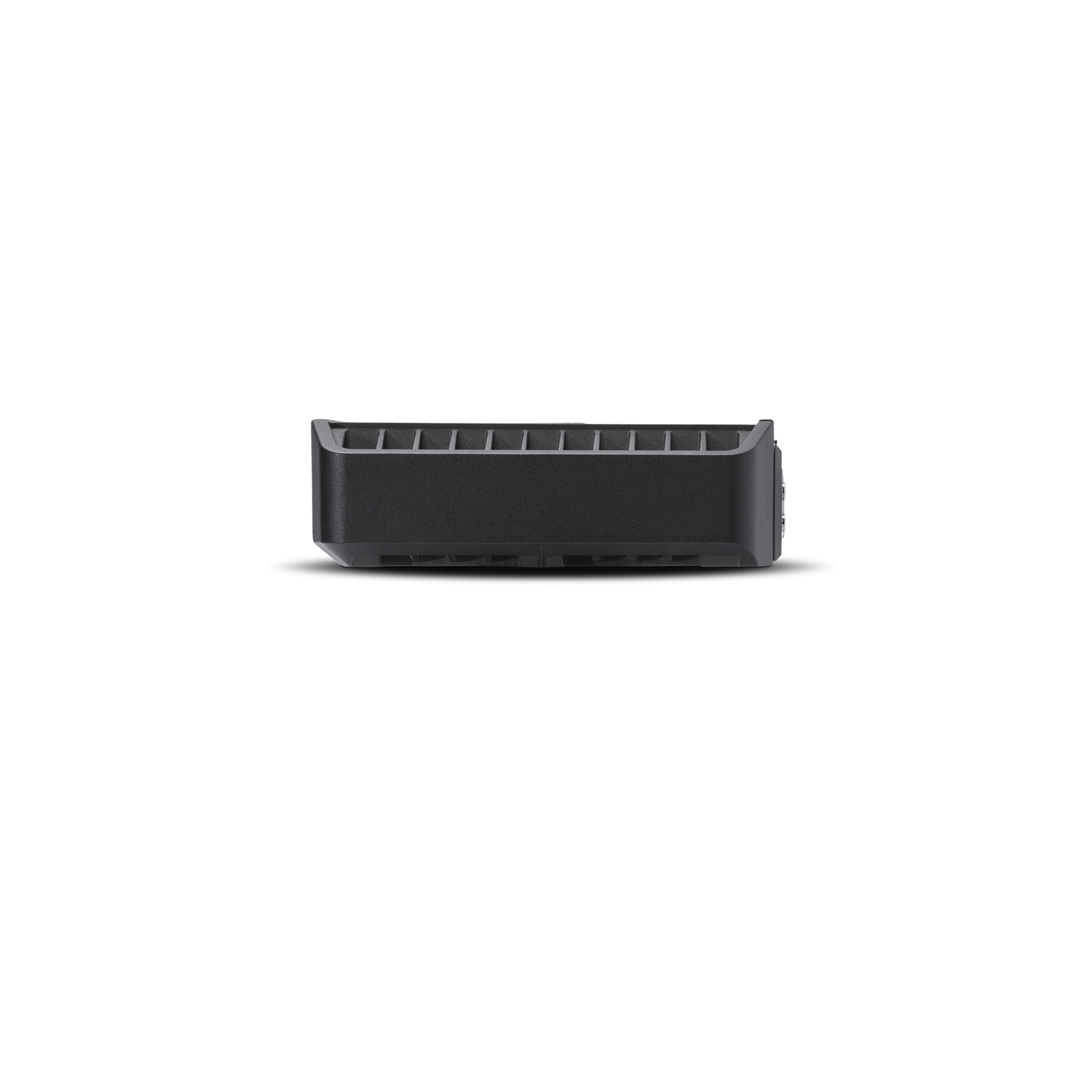

- Cast aluminum heatsink

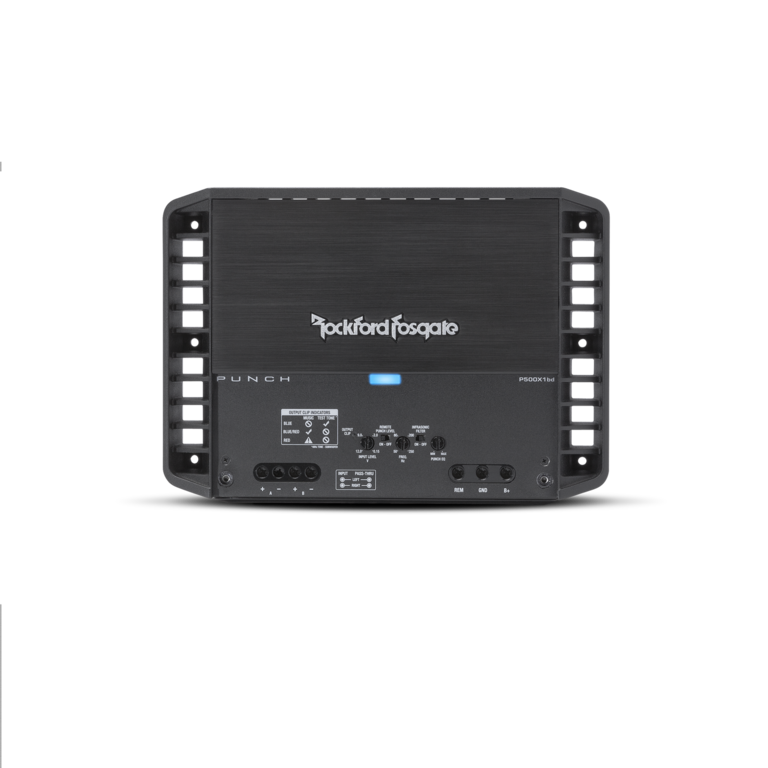

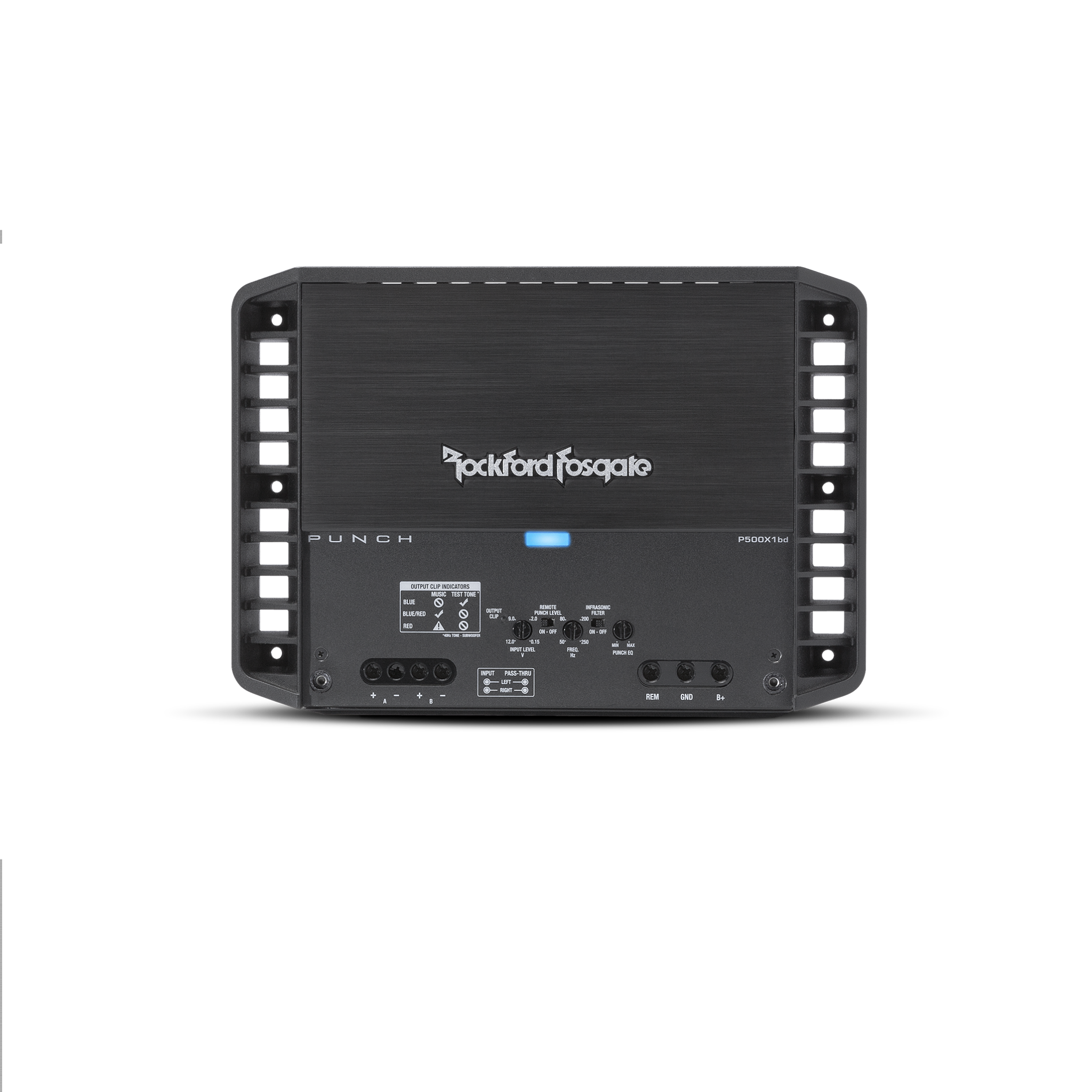

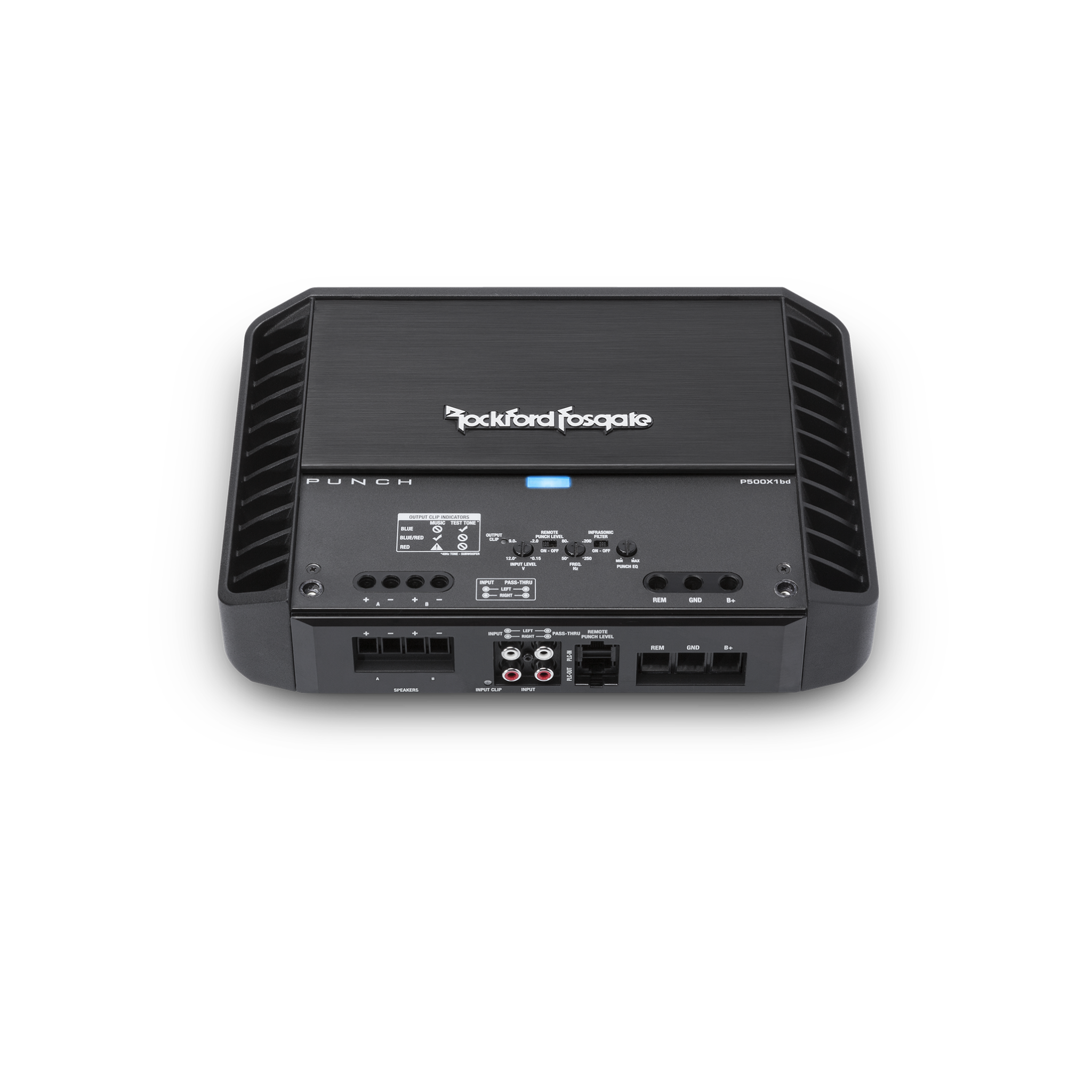

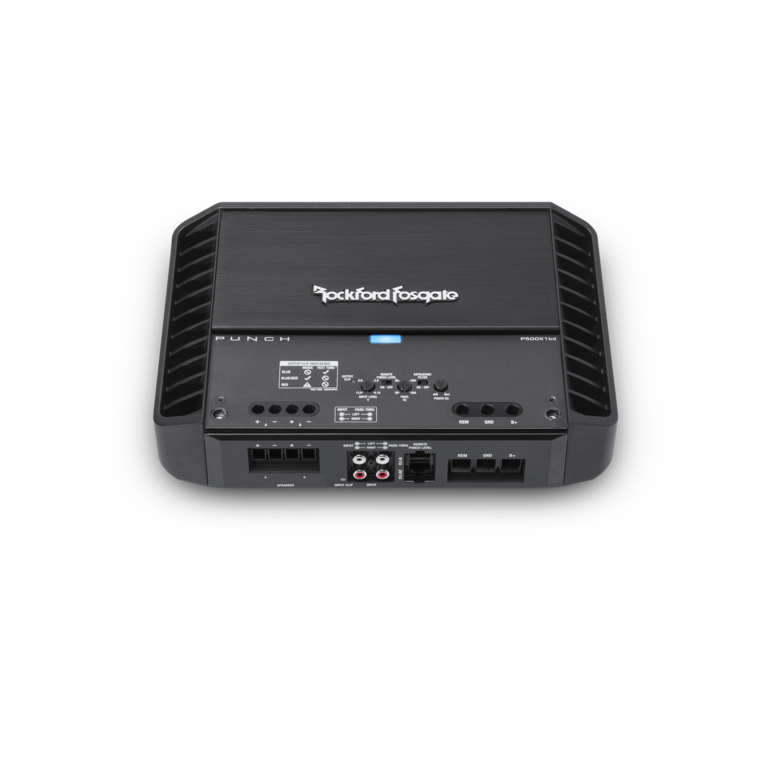

- Stealth top mounted control panel
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- Muted turn on
- 1 Year Warranty
- On-board Punch EQ with +18dB boost @ 45Hz
(Sum of Rated Power)
(RMS Continuous Power)
300 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm
(PVC/PowerCube®)
410 Watts x 1 @ 2-Ohm
787 Watts x 1 @ 1-Ohm
2-Ohm: <1.0%
1-Ohm: <1.0%
Infrasonic Filter (IF): 28Hz @ 12dB/Octave
All-Pass (AP): No
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
(not included)
6.05 x 19.71 x 28.02 (cm)
