Create an accountFEATURES AT A GLANCE
- Proprietary high-flow, low-noise port
- Constructed with 5/8" MDF
- 1 Year Warranty

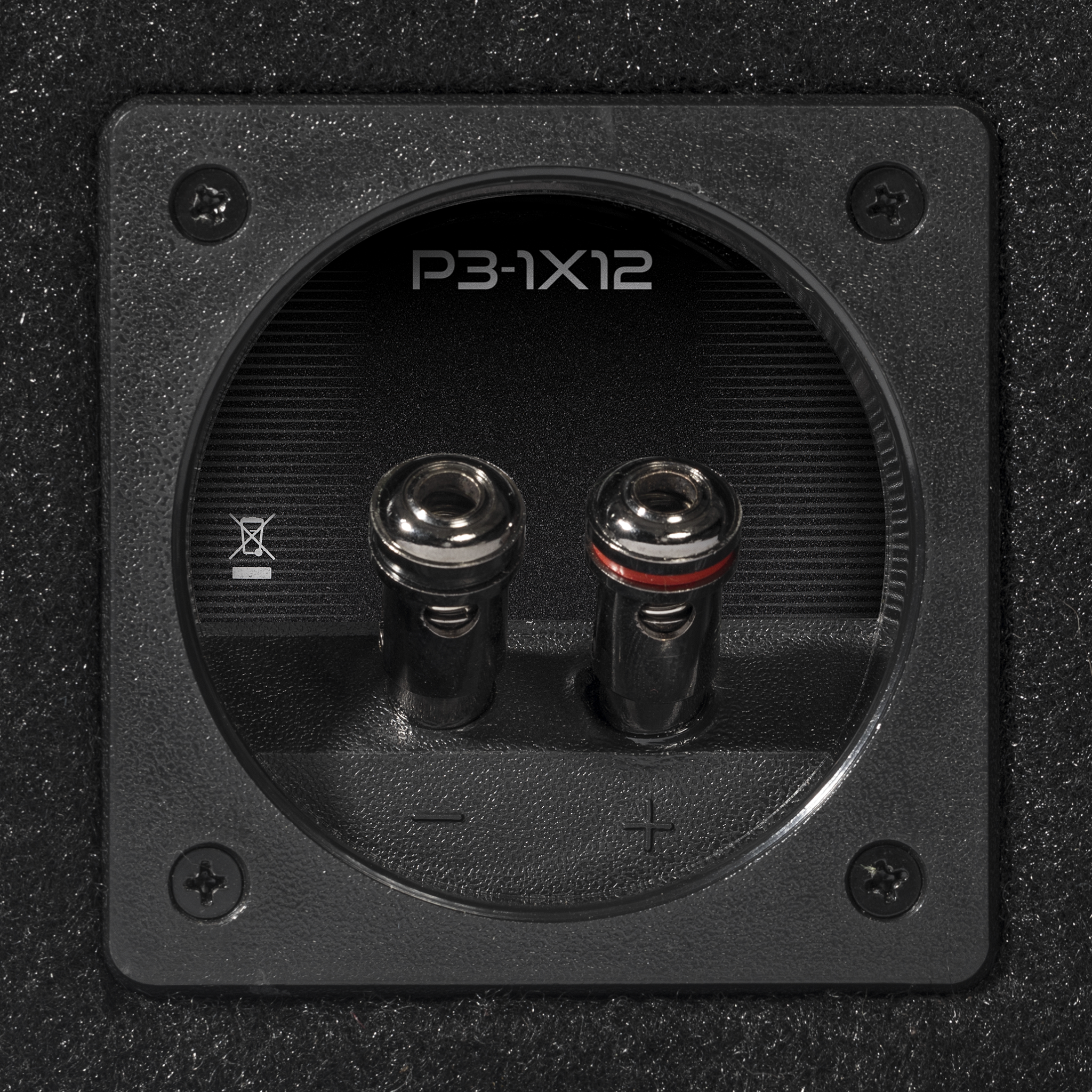

- High current binding posts

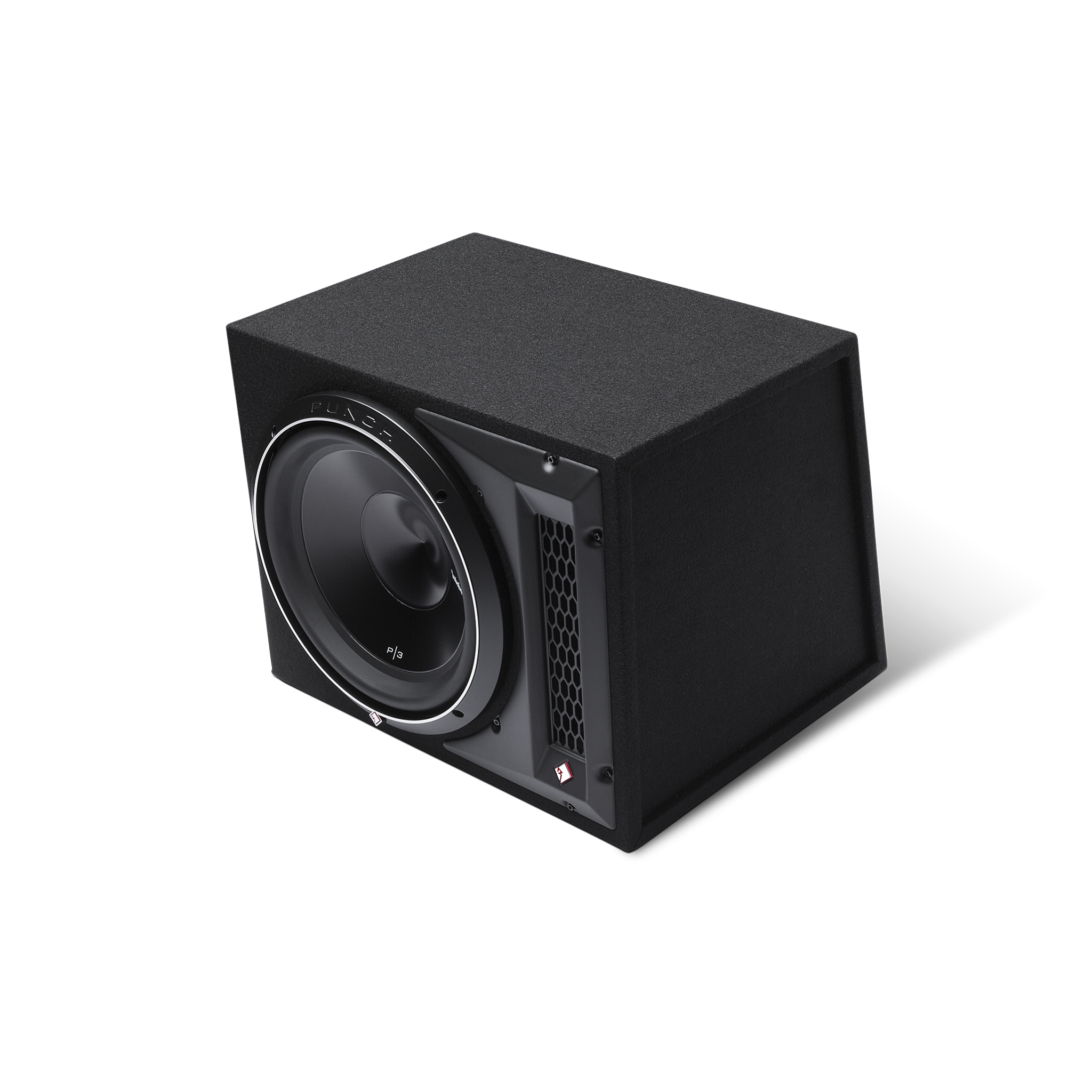

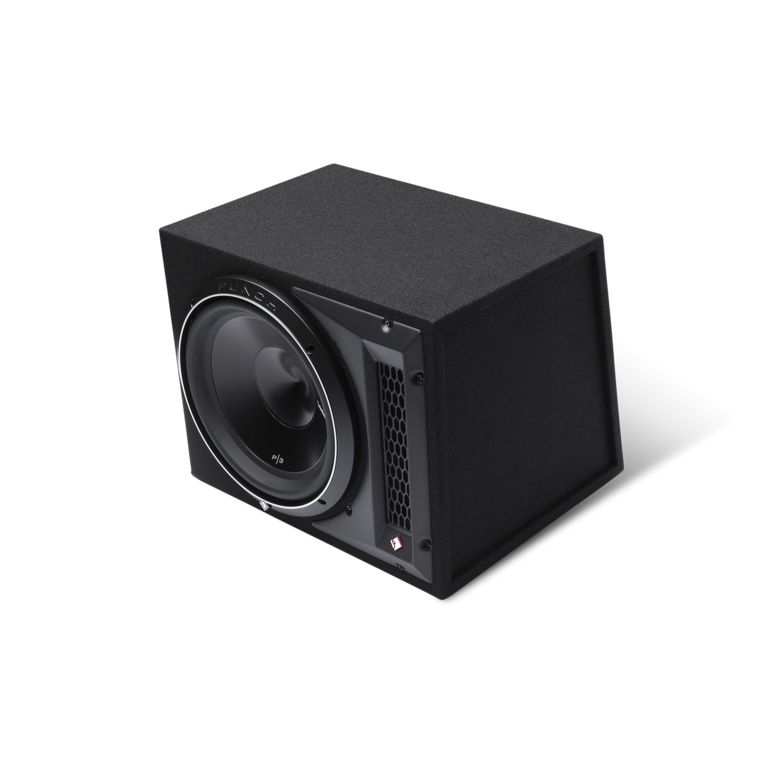

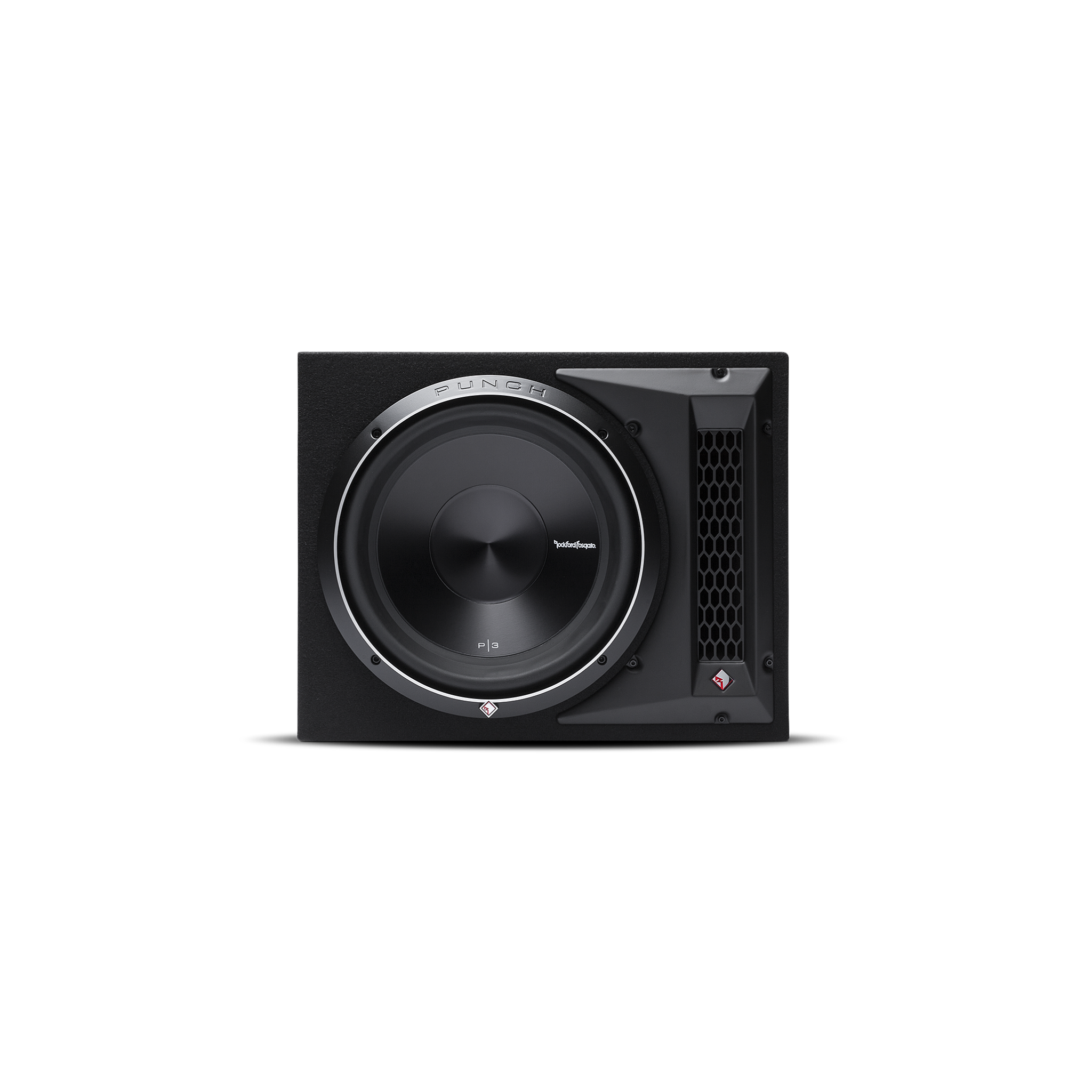

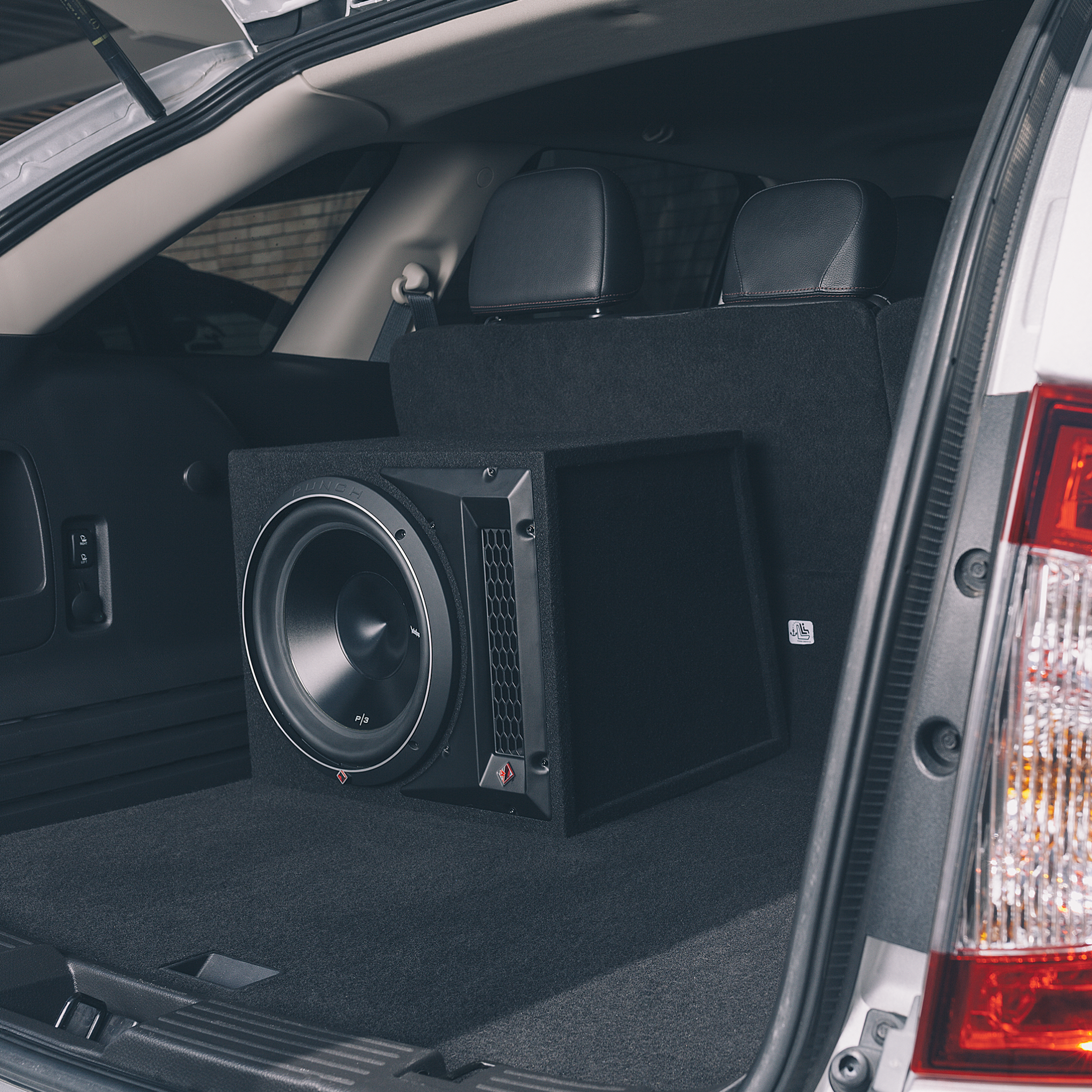

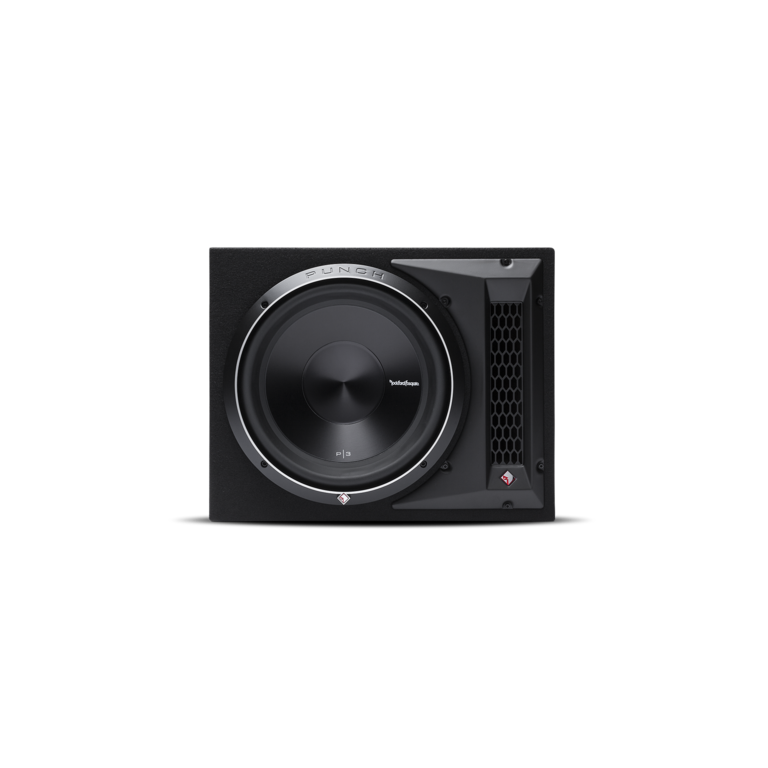

The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We're not talking junk in the trunk, we're talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8" MDF and tuned by our computer aided design software. P3 Loaded Enclosures feature similar tonal performance as P2 & P1 models, but with higher power handling capacity.
Woofer Quantity
1
Shipping Weight
56.9 Lbs. (25.8 kg)
Speaker Connector
Up to 10 AWG compression terminals
Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2)
Box (H x W x D)
Wedge (H x W x D1 x D2)
Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2)
Box (H x W x D)
Wedge (H x W x D1 x D2)
15.125" x 19.125" x 15.75"
(38.4cm x 48.6cm x 40cm)
(38.4cm x 48.6cm x 40cm)
CEA-2031 Compliant
Woofer Size
12"
Woofer Series
Punch P3 (P3D2-12)
Nominal Impedance (ea)
1-Ohm
Internally wired to create a 1-Ohm amplifier load
Internally wired to create a 1-Ohm amplifier load
Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max
1200 Watts Max
Enclosure Type
Vented
