METRA AXPIO-JL1 18-up Jeep Wrangler JL models Pioneer radio integration kit and harness

The new AXPIO-JL1 is a fully integrated dash kit package designed specifically for select Pioneer® receivers*. This complete solution features an AXPIO Series interface, vehicle-specific harnessing, a dash kit, and more. Vehicle information and settings controlled on the factory screen are retained, displayed, and controlled on the Pioneer® touchscreen. These settings would otherwise be lost after replacing the head unit. The built-in integration technology from Axxess also retains safety chimes through an offboard speaker, retains audio controls on the steering wheel, retains R.A.P. (Retained Accessory Power), and provides accessory power (12-volt-10-amp) and NAV output for parking brake, reverse, and speed sense.

• Designed for Pioneer DMH-W4600NEX/W4660NEX receivers*. (will work with 9” touchscreens with the additional purchase of the Metra 109-UN02 dash kit)
• Allows retention and adjustment of the factory personalization menu through the Pioneer radio:

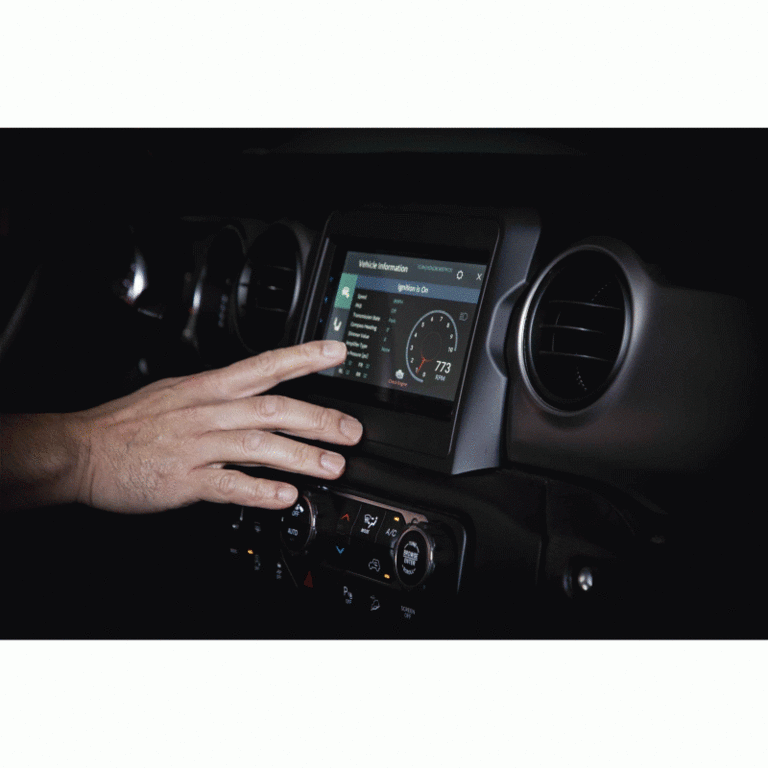

  • Provides a visual view of HVAC and gauges on the Pioneer screen

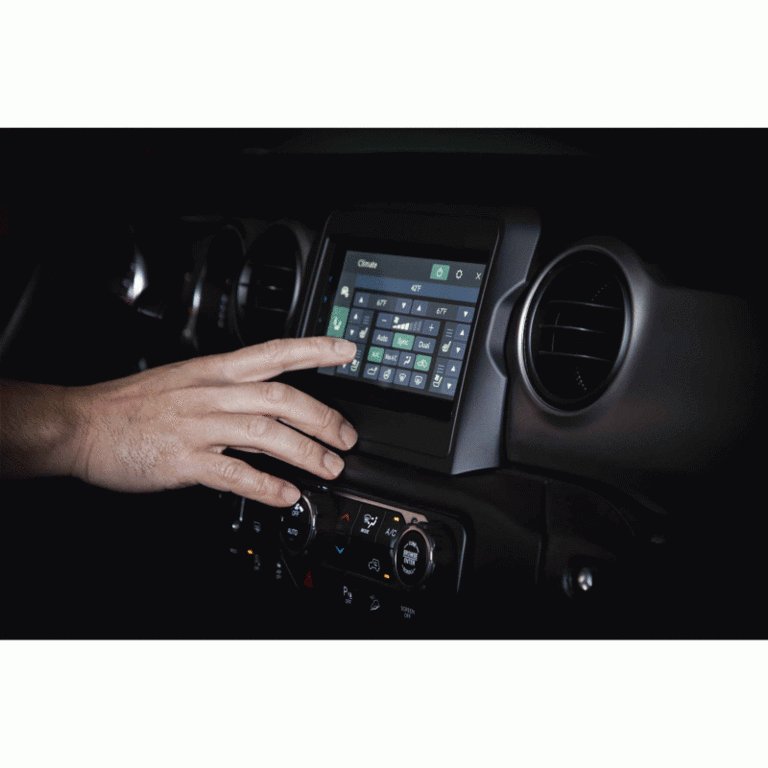

  • Allows adjustment of HVAC functions through the Pioneer screen

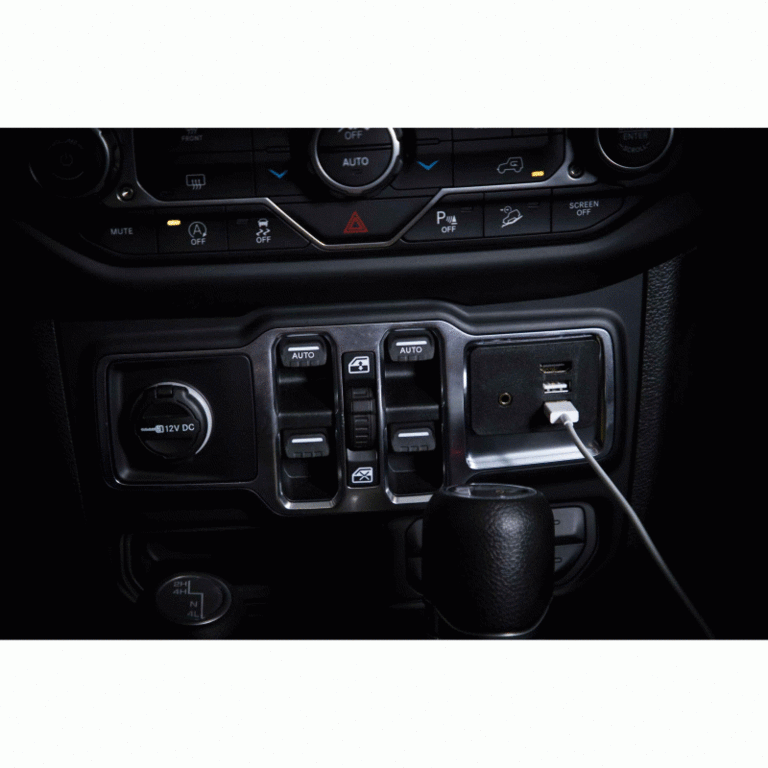

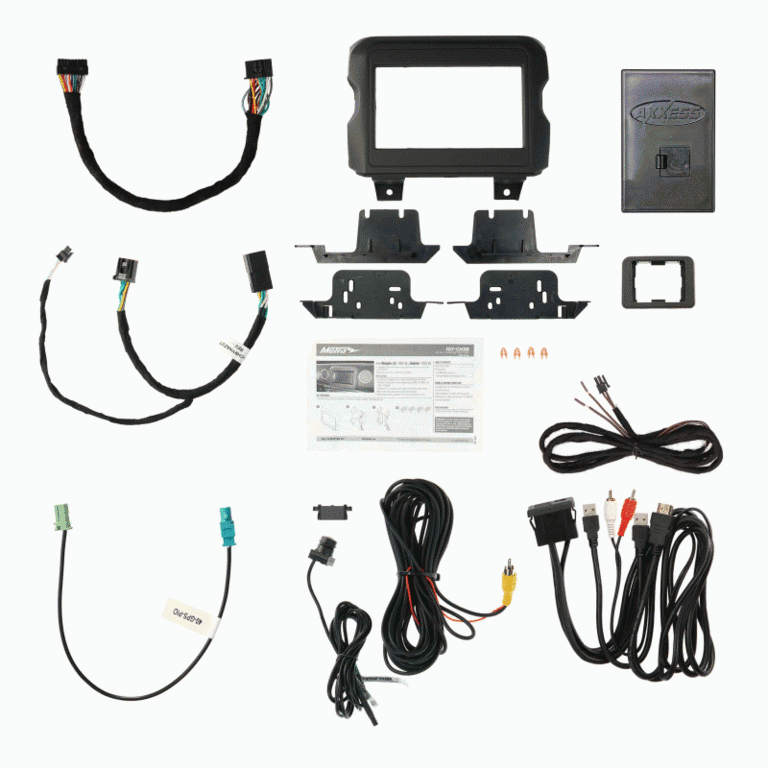

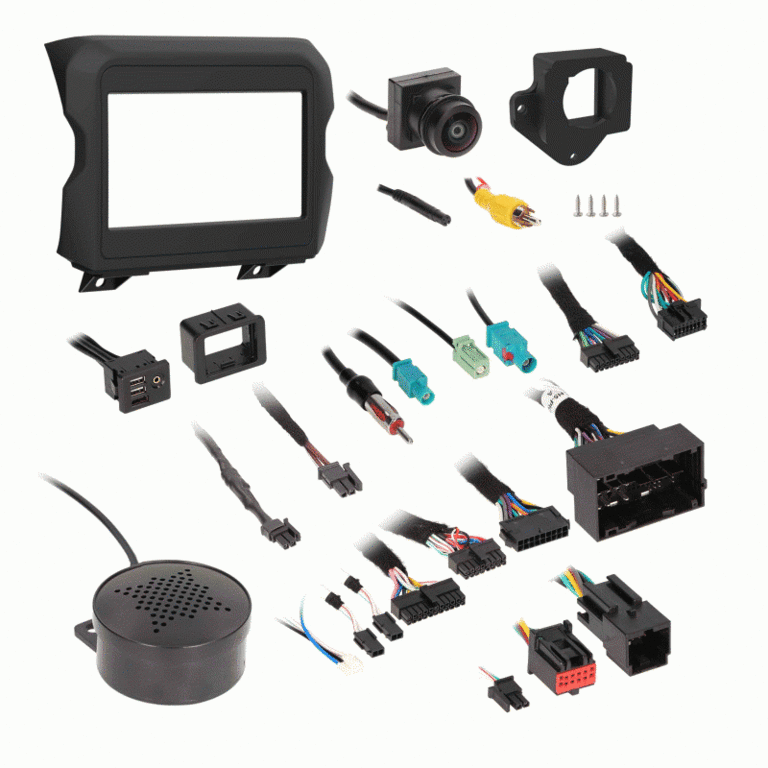

• This package includes a dash kit, interface with plug-n-play harnessing, antenna adaptor, 3’ USB/AUX/HDMI replacement with panel, and OE backup camera replacement.
• Provides a built-in STOP/START engine override (if equipped)
• Provides accessory power (12-volt 10-amp)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Works in both single and dual-zone vehicles
• Retains safety chimes through offboard speaker
• Designed for amplified or non-amplified vehicles
• Micro-B USB updatable
• Dash kit is painted scratch-resistant matte black to match the factory finish

*Refer to radio manufacturer for most current models.

Wiring and Antenna Connections

• Wiring Harness (included with kit)
• Antenna Adapter
  • 40-EU1 (included)
  • 40-GPS-PI0 (included)

• Applications
