JL Audio XDM1000/5 Car/Marine 1000 watt 5 Channel Amplifier

$999.97
In stock
Add to cart

High-tech, high-power full-system amp for cars and boats
JL Audio combined the features of their best-selling M Series marine amplifiers and their high-tech XD Series car amplifiers to create the XDM1000/5. The amp is built with marine-grade materials and features a selectable dual-mode power input filter for noise-free performance in either marine or automotive electrical environments. It plays your music with true fidelity and impressive impact without straining your vehicle's electrical system, thanks to JL Audio's proprietary NexD™ ultra-high-speed and efficient amplifier technology.

Versatile amp
The XDM1000/5 five-channel amp can deliver 75 watts RMS to each of your front and rear speakers while powering a sub with up to 600 watts. You can also switch to 3-channel mode, and power a pair of high-performance speakers with 200 watts each, while still driving a sub with 600 watts. And for those who run 3-way, or active speaker systems, the XDM1000/5's front channels can be high-passed to run tweeters, the rear channels band-passed for midrange or mid-bass speakers, and the sub channel low-passed for bass.

Works with almost any vehicle's system
"Differential-balanced" inputs help keep the signals clear of outside noise and allow you to connect this amp to just about any stereo, even some factory radios. The speaker-level inputs feature two auto turn-on modes to facilitate factory system integration. An optional wired remote lets you tweak the volume of the whole system from the driver's seat — or you can set it to control just the bass channel.


Product highlights:
5-channel car/marine amplifier
75 watts RMS x 4 + 400 watts RMS x 1 at 4 ohms
100 watts RMS x 4 + 600 watts RMS x 1 at 2 ohms
200 watts RMS x 2 bridged at 4 ohms + 600 watts RMS x 1 at 2 ohms
Ch 1 & 2: variable high-pass filter (50-500 Hz, 12 dB/octave)
Ch 3 & 4: variable high-pass or bandpass filter (50-500 Hz, 12 dB/octave)
sub channel: low-pass filter (50-500 Hz, 12 or 24 dB/octave)
Class D amplifier design with NextD™ switching amp technology
differential-balanced inputs help eliminate noise
weather-resistant chassis: black powder-coat finish, gasketed control cover, stainless steel hardware
More info:

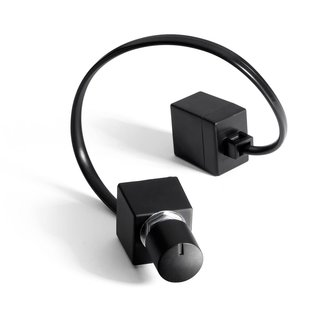

optional assignable wired remote level control available
preamp and speaker-level inputs
switchable input filter (car/boat) eliminates interference from onboard high-current devices
speaker-level inputs handle up to 4Vrms (about 4 watts)
speaker-level inputs require Wire-to-RCA adapters
speaker-level inputs feature auto turn-on via DC offset or signal sensing
wiring, fuse, and hardware not included with amplifier
4-gauge power and ground leads and an 80-amp fuse recommended
14-1/2"W x 2"H x 7-1/8"D
warranty: 2 years
