- Max Power 1000W
- RMS 300W (4Ω)
- RMS 500W (2Ω)
- Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
- Variable Low Pass Filter
- Bass Boost
- Infrasonic Filter
- Wired Remote Included

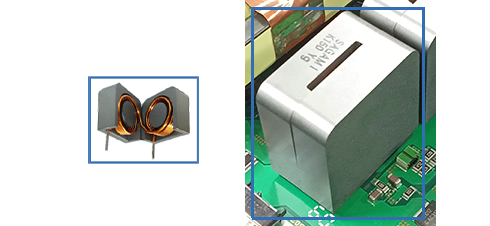

Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.
High Quality Capacitors
PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.
Infrasonic Filter (ISF)
When the Infrasonic Filter Switch is turned on, the amplifier cuts off the low frequencies below 25Hz, which makes the amplifier’s power supply and output devices more efficient, providing clear bass output.
Gauge-style terminals lock wire
into position with set screw for secure installation.

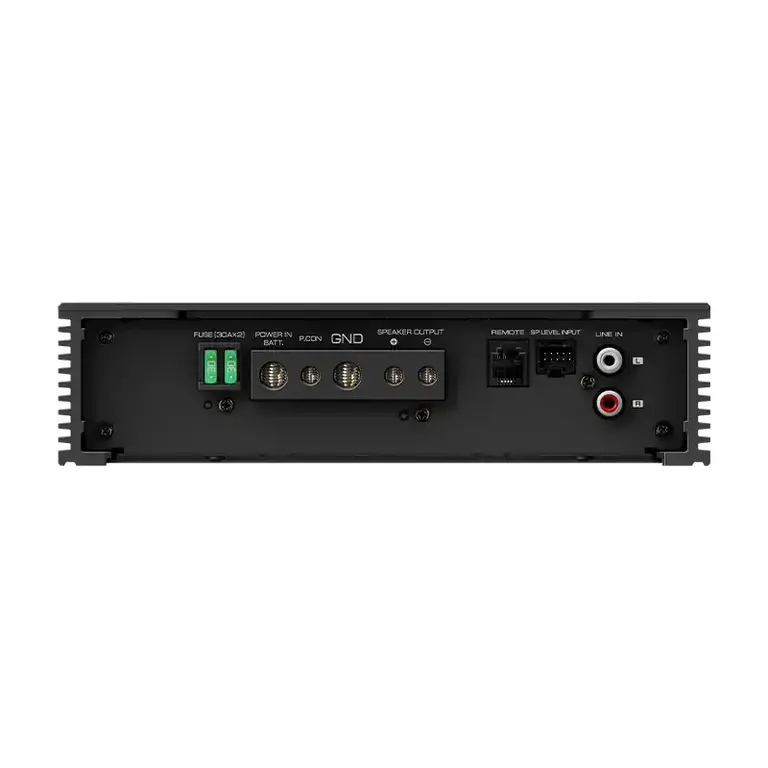

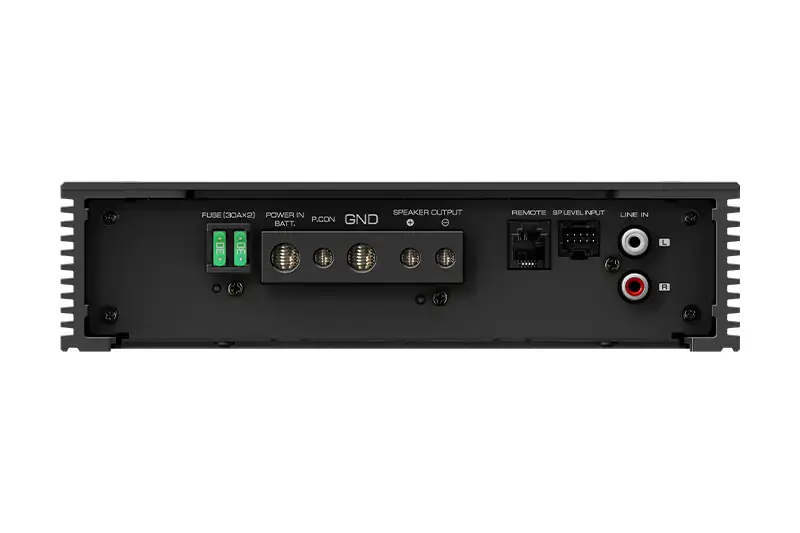

One-side Connection
All terminals and connections are on one side foreasier installation and a cleaner look.
- ①Fuse (30A x2)
- ②Battery terminal (POWER IN BATT.)
- ③Power control terminal
- ④Ground terminal (GND)
- ⑤Speaker output terminals
- ⑥Remote terminal
- ⑦Speaker level input terminal
- ⑧Line in terminal

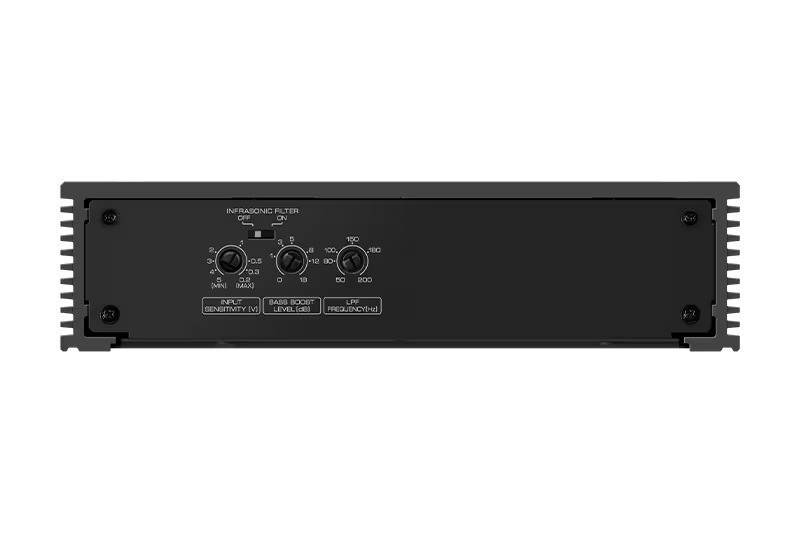

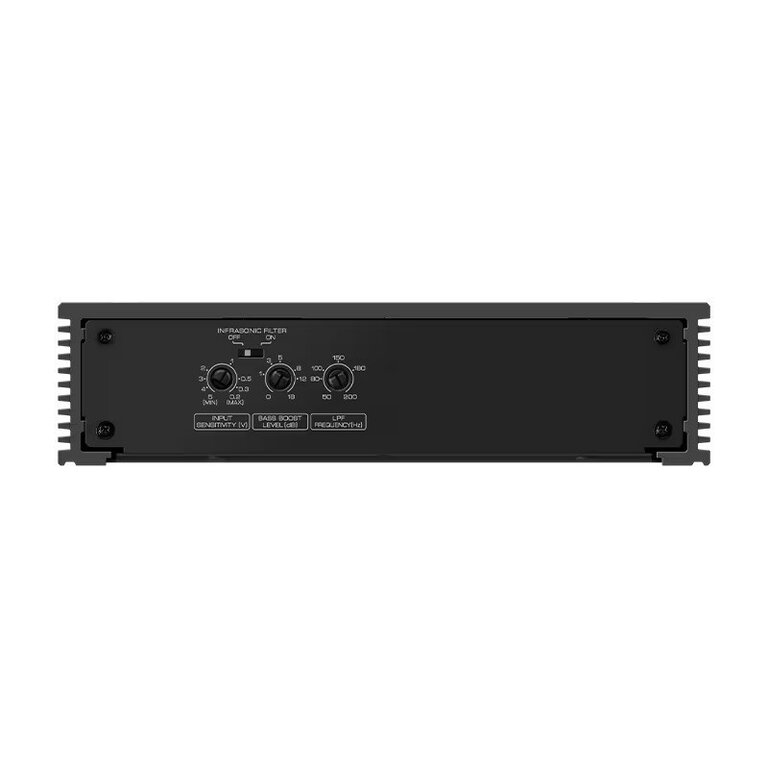

- ⑨Input sensitivity control
- ⑩Infrasonic filter switch
- ⑪Bass Boost Level control
- ⑫LPF frequency control
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
Wired Level Control Included
The wired remote level control allows you to easily adjust the subwoofer volume.
General Features
| X803-5 | X503-1 | X303-4 | |
|---|---|---|---|
| MAX POWER | 1600W | 1000W | 600W |
| RMS POWER OUTPUT (4Ω) | 50W x 4 + 300W | 300W | 50W x 4 |
| RMS POWER OUTPUT (2Ω) | 75W x 4 + 500W | 500W | 75W x 4 |
| RMS POWER OUTPUT Bridged | 150W x 2 (Bridged) + 300W | - | 150W x 2 (Bridged) |
| Features | Speaker Level Input | Speaker Level Input | Speaker Level Input |
| Signal Sensing Turn-On | Signal Sensing Turn-On | Signal Sensing Turn-On | |
| Variable High Pass Filter | Variable Low Pass Filter | Variable High Pass Filter | |
| Variable Low Pass Filter | Infrasonic Filter | Variable Low Pass Filter | |
| Bass Boost | Bass Boost | Bass Boost | |
| Wired Remote Included | Wired Remote Included | - | |
| Dimensions | (W)9-3/4" x (H)2-1/16” x (D)6-5/8” | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” |
| Weight | 4.6lbs (2.1kg) | 3.3lbs (1.5kg) | 3.1lbs (1.4kg) |
